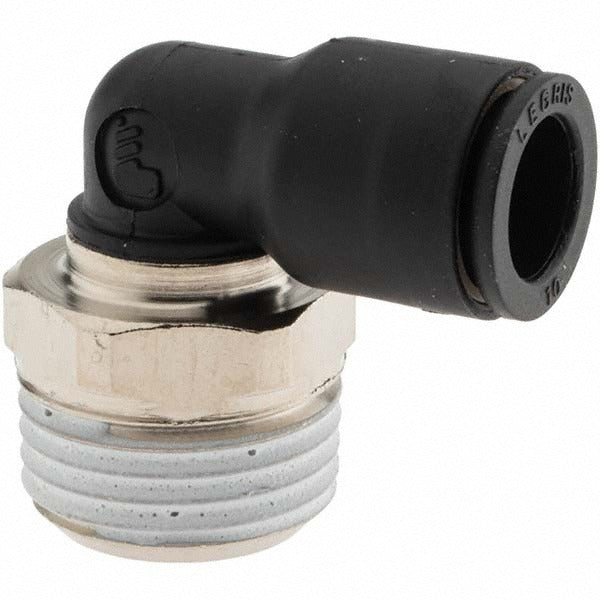

Parker KP23992 Push-to-connect Male Elbow 1/2 Bspt

Product Description

The PARKER KP23992 is a push-to-connect tube fitting in a male elbow configuration, designed for fast, tool-free connections in pneumatic and fluid distribution systems. It accepts tubing with a 10 mm outside diameter and threads into a 1/2 inch BSPT male port. The fitting body is constructed from nylon and is rated to 290 psi. The push-to-connect mechanism allows technicians to make secure, leak-resistant connections without ferrules, compression sleeves, or additional fittings. Plumbers, HVAC technicians, and pipefitters working with metric tubing and BSPT-ported equipment install this fitting in control systems, compressed air lines, and fluid handling assemblies.

This fitting is suited for residential and light commercial applications where metric OD tubing meets BSPT-threaded ports. Typical install scenarios include compressed air distribution panels, pneumatic control lines, and water treatment or fluid handling equipment using 10 mm tubing. The 90-degree elbow geometry allows routing in tight spaces where straight fittings cannot clear surrounding components. The nylon body makes it appropriate for non-corrosive fluid and air service. Sold in a package quantity of two.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and secure retention
• Male BSPT thread provides direct connection to BSPT-ported valves, manifolds, and equipment
• 90-degree elbow configuration enables routing changes in confined spaces
• Nylon construction resists corrosion in air and compatible fluid service
• Rated to 290 psi for use in pressurized pneumatic and fluid lines
• Accepts 10 mm outside diameter tubing

Compatibility

Designed for use with 10 mm outside diameter tubing and equipment fitted with 1/2 inch BSPT male ports in pneumatic and fluid handling systems.

Installation Notes

Installation is performed by licensed plumbers or qualified HVAC and pneumatic technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the BSPT thread is wrapped with appropriate thread sealant tape and tightened to the port without over-torquing the nylon body. Confirm tubing is cut cleanly and squarely and inserted fully into the fitting until the internal collet engages before returning the line to service.
