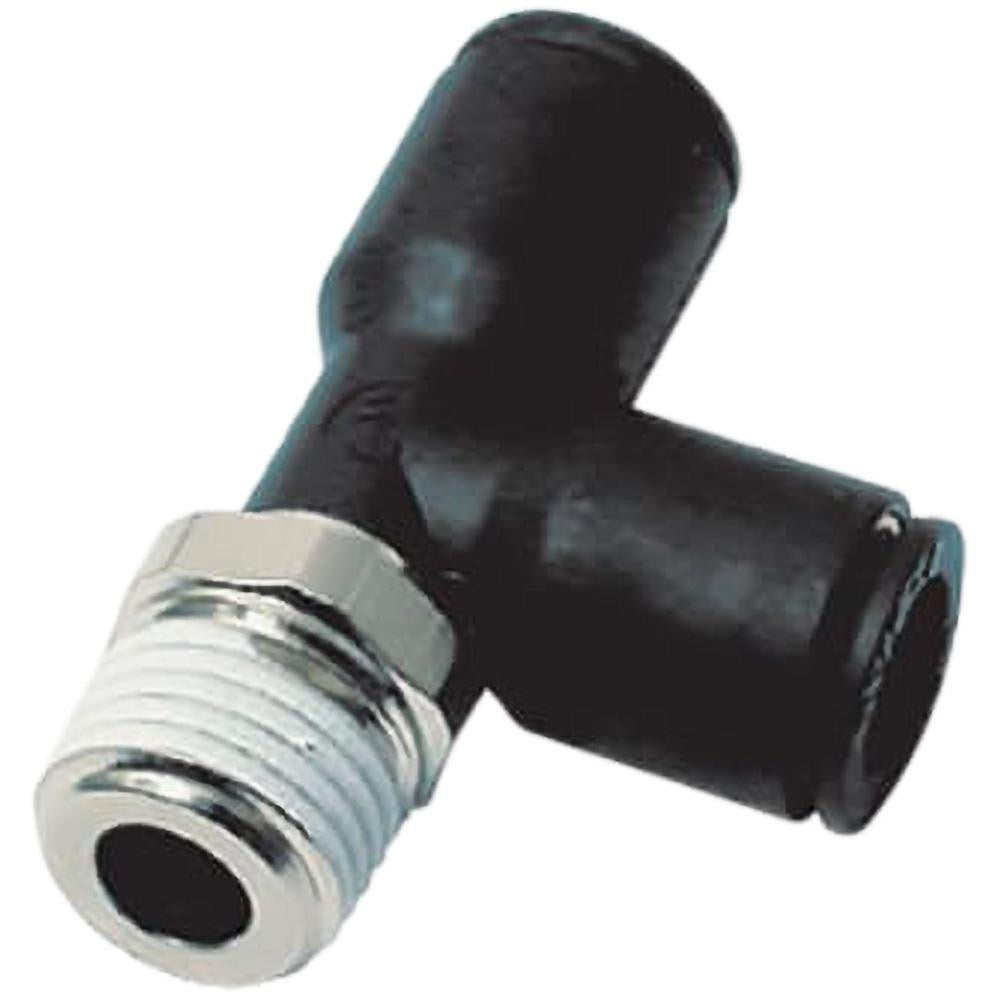

Parker KP23584 Male Run Tee Fitting 5/32 in Od 1/4 Bspt Nylon

Product Description

The PARKER KP23584 is a push-to-connect male run tee tube fitting designed for pneumatic and fluid-handling plumbing assemblies in light industrial and trade applications. It accepts tubing with a 5/32 inch outside diameter and terminates with a 1/4 inch BSPT male thread on the run branch. The body is molded from nylon and is rated to 290 psi, making it suitable for compressed air lines, instrumentation tubing, and low-pressure fluid circuits. Installation requires no tools on the tube side — the push-to-connect mechanism grips and seals the tube on insertion. These fittings are typically installed by HVAC technicians, industrial pipefitters, or pneumatic control specialists.

The KP23584 is used in pneumatic control lines, HVAC equipment controls, compressed air distribution manifolds, and instrumentation tubing runs where a tee branch with an inline male threaded connection is needed. The BSPT thread conforms to British Standard Pipe Taper specifications, making this fitting appropriate for systems designed to that thread standard. The nylon construction keeps weight low and resists corrosion in clean-air and low-pressure fluid service environments. This SKU ships in a package quantity of five units.

Key Features

• Push-to-connect design on tube ports — no tools required for tube insertion
• 5/32 inch tube outside diameter (4.00 mm) compatibility
• 1/4 inch BSPT male thread on the run branch
• 290 psi pressure rating for compressed air and low-pressure fluid service
• Nylon body construction — lightweight and corrosion resistant
• Package quantity of 5 units per order

Compatibility

Designed for use with 5/32 inch OD tubing in pneumatic and fluid-handling systems using 1/4 inch BSPT male thread connections. Suitable for clean compressed air and low-pressure fluid circuits where nylon fittings are appropriate for the service conditions.

Installation Notes

Depressurize and isolate the system completely before installing or removing push-to-connect fittings. Ensure the tubing cut is clean and square with no burrs before inserting into the fitting port. Verify that the mating threaded port uses BSPT thread form before installation, as BSPT is not interchangeable with NPT. Do not exceed the 290 psi pressure rating or use this fitting outside its rated fluid and temperature compatibility range.
