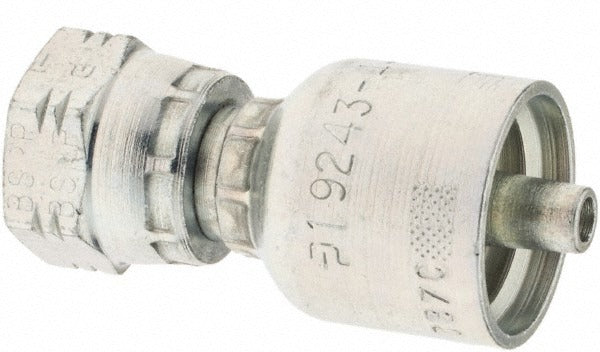

Parker KP150081 Hydraulic Hose Swivel Fitting 1/4 in Bspp

Product Description

The PARKER KP150081 is a straight swivel fitting designed for hydraulic hose assemblies. It connects 1/4-inch inside-diameter hydraulic hose to threaded ports using a BSPP (British Standard Parallel Pipe) thread interface. Constructed from steel for durability in high-pressure hydraulic circuits, this fitting is 1.95 inches in overall length and accepts hose with a 0.25-inch ID. The swivel design allows the hose to be positioned without twisting the assembly during installation or operation. It is installed by hydraulic system technicians in mobile, industrial, and fluid-power applications.

This fitting is used in hydraulic systems where BSPP-threaded port connections are required. It is suited for both mobile equipment and stationary hydraulic power units. The KP150081 is rated for use with a wide range of Parker hydraulic hose series, making it a practical choice for hose assembly work in shops and in the field. It ships in a package quantity of two units per order.

Key Features

• Swivel design allows hose positioning without twisting or stressing the assembly
• BSPP threaded connection for compatibility with metric and British-standard ported components
• Steel construction for strength in hydraulic pressure environments
• Straight shape simplifies routing in tight or inline plumbing configurations
• Compliant with ISO 12151-6 standards for hydraulic hose fittings
• California PROP 65 listed

Compatibility

Compatible with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hydraulic hose series.

Installation Notes

Installation is performed by qualified hydraulic technicians or fluid-power mechanics. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Use appropriate thread sealant or sealing method compatible with BSPP parallel threads, which rely on face or O-ring sealing rather than taper interference. Follow ISO 12151-6 assembly guidelines and applicable equipment manufacturer torque procedures for final tightening.
