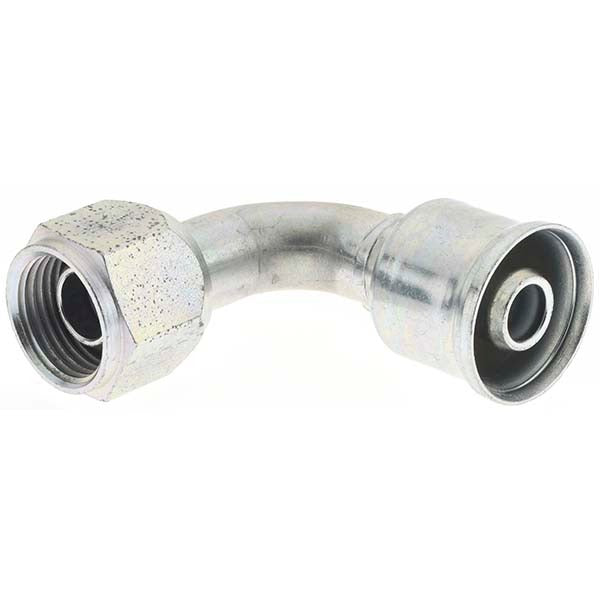

Parker KP103645 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER KP103645 is a 90-degree elbow hose fitting designed for hydraulic system connections where a right-angle transition is required between a hose and a port. Constructed from steel, this fitting accepts a 1/2-inch hose diameter with an 8 mm hose size designation and threads into ports with a 7/8-14 straight thread. It is used in mobile and industrial hydraulic circuits where routing constraints prevent a straight-line connection. Licensed hydraulic technicians and industrial maintenance mechanics are the primary installers. The steel construction provides the durability needed to handle the pressure demands of standard hydraulic plumbing applications.

This fitting is suited for hydraulic systems that require a 90-degree directional change at the hose termination point. Typical applications include mobile equipment, agricultural machinery, construction equipment, and stationary hydraulic power units where hose assemblies must route around obstacles or connect to ports oriented away from the hose run. The 7/8-14 thread size is a common SAE straight thread designation found on pumps, valves, cylinders, and manifold blocks. Each package contains 2 fittings.

Key Features

• 90-degree elbow configuration for right-angle hose routing
• Steel construction for durability in hydraulic service environments
• 1/2-inch hose inside diameter compatibility with 8 mm hose size designation
• 7/8-14 SAE straight thread port connection
• Sold in packages of 2 fittings per order unit

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 1/2-inch hose with a 7/8-14 threaded port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with hydraulic fittings and SAE thread standards. Depressurize and de-energize the hydraulic system fully before disconnecting or installing any fitting. Inspect the mating port threads and sealing surfaces for damage before installation. Follow applicable industry standards for thread engagement and use the appropriate thread sealant or O-ring as required by the fitting design.
