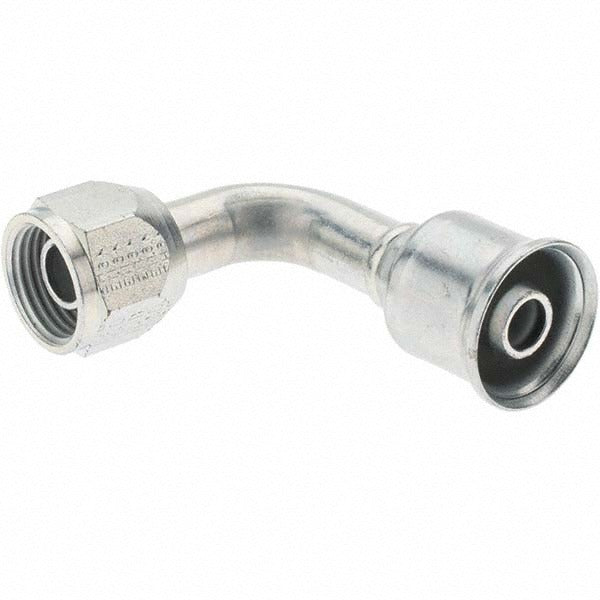

Parker KP103644 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER KP103644 is a 90-degree elbow hydraulic hose fitting machined from steel, designed to connect hydraulic hoses at a right angle where straight inline connections are not practical. The fitting accepts an 8 mm hose size with a 13/32-inch hose diameter and uses a 3/4-16 inch thread for secure, leak-resistant attachment to hydraulic circuits. This type of fitting is installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance professionals working on high-pressure fluid power systems.

This elbow fitting is suited for use in industrial hydraulic circuits, mobile hydraulic equipment, agricultural machinery, and construction equipment where hose routing must change direction to avoid interference with chassis components or other hardware. The 90-degree angle reduces stress on the hose at connection points, helping to extend hose service life in tight routing applications.

Key Features

• 90-degree elbow configuration for right-angle hose routing
• Steel construction for durability in high-pressure hydraulic environments
• 8 mm hose size with 13/32-inch hose diameter
• 3/4-16 inch thread size for standard hydraulic port compatibility
• Compact geometry suitable for tight installation spaces

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring an 8 mm, 3/4-16 thread 90-degree elbow connection in steel.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings, and confirm the system has returned to zero pressure using a calibrated gauge before beginning work. Use the appropriate thread sealant or fitting-face seal method as specified by the system design. Torque fittings according to the hydraulic system manufacturer specifications and inspect for leaks after returning the system to service.
