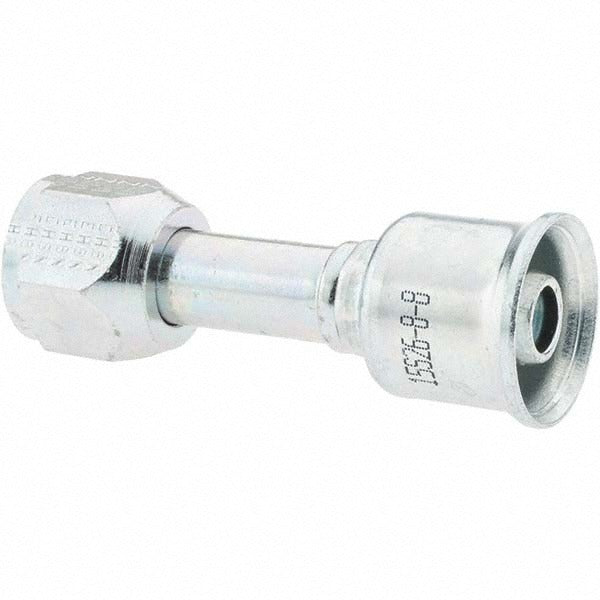

Parker KP103640 Hydraulic Hose Swivel Fitting 8mm 3/4-16

Product Description

The PARKER KP103640 is a female swivel fitting designed for hydraulic hose assemblies requiring a secure, rotatable connection. Constructed from steel, this fitting accepts an 8 mm hose size with a hose diameter of 13/32 inches and threads onto a 3/4-16 UNF port. The swivel design allows the hose to rotate during installation, reducing torsional stress on the assembly and helping to prevent kinking or misalignment. It is a field-standard component used by hydraulic system technicians and fluid power specialists working on mobile equipment, industrial machinery, and related hydraulic circuits.

This fitting is suited for hydraulic plumbing applications where a female swivel termination is required at the hose end. Typical installations include mobile hydraulic systems on construction equipment, agricultural machinery, and industrial power units. The 3/4-16 thread size is a common straight thread specification found on a wide range of hydraulic ports and adapters. This package contains 4 fittings per unit, making it appropriate for multi-hose assembly jobs or shop stocking.

Key Features

• Female swivel fitting design reduces torsional stress during hose routing and installation
• Steel construction for durability in hydraulic system environments
• 8 mm hose size with 13/32 inch hose diameter
• 3/4-16 UNF thread for compatibility with standard hydraulic ports
• Packaged in quantities of 4 per unit for efficient assembly work

Compatibility

Designed as an OEM-style hydraulic hose swivel fitting for use with 8 mm hydraulic hose assemblies requiring a 3/4-16 female swivel termination.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect threads and sealing surfaces for damage before assembly, and torque fittings according to the system manufacturer's specifications. Follow applicable industry standards such as SAE J1453 for hydraulic fitting installation practices.
