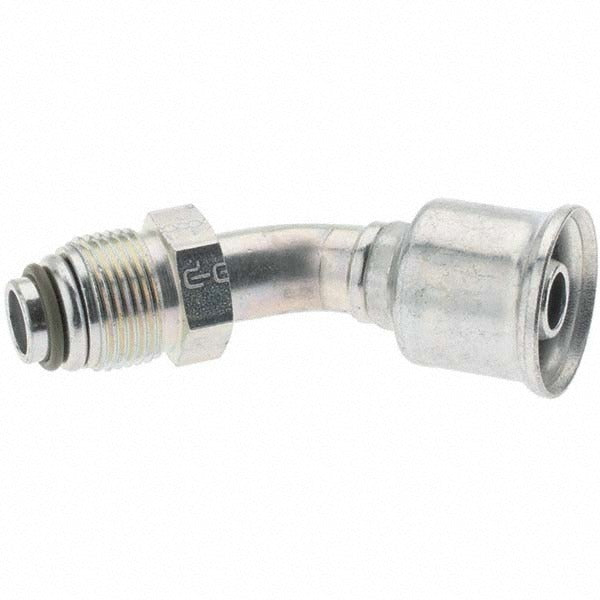

Parker KP103636 Hydraulic Hose Fitting 45 Degree Elbow Steel

Product Description

The PARKER KP103636 is a 45-degree elbow hose fitting designed for hydraulic fluid conveyance systems. Constructed from steel, this fitting connects hydraulic hose assemblies where a directional change is required at the hose end. It accepts a 13/32-inch hose diameter and features a 3/4-18 threaded connection. The elbow geometry reduces stress on hose ends in tight routing applications, helping maintain line integrity under system pressure. This fitting is typically installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance professionals working on fluid power circuits.

This fitting is suited for hydraulic plumbing applications where straight hose routing is not practical and a 45-degree angle change is needed to clear components or meet space constraints. Common install scenarios include mobile hydraulic equipment, industrial machinery, and fluid power systems requiring steel fittings at the hose-to-port interface. Sold in a package quantity of four, making it practical for multi-line assemblies or service inventory.

Key Features

• 45-degree elbow geometry for angled hydraulic hose routing
• Steel construction for durability in hydraulic service environments
• 13/32-inch hose diameter acceptance
• 3/4-18 thread size for standard port connections
• Package quantity of four units per order

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a 45-degree elbow configuration with a 13/32-inch hose diameter and 3/4-18 thread interface.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with fluid power systems. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Verify thread type and hose size compatibility before assembly. Follow applicable fluid power standards and equipment manufacturer torque guidelines for the specific port material being threaded.
