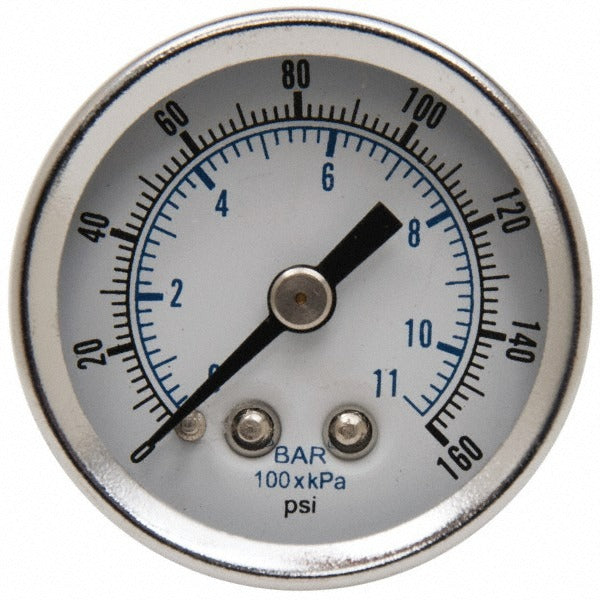

Parker K4515N18160 Frl Pressure Gauge 0-160 Psi

Product Description

The PARKER K4515N18160 is an FRL pressure gauge designed for use with miniature filter/regulator and regulator assemblies in compressed air and pneumatic systems. It reads from 0 to 160 psi through a 1/8 inch NPT port, giving technicians a direct local indication of regulated outlet pressure. At 0.2 pounds, the gauge is a compact, lightweight accessory suited for tight panel or manifold installations. HVAC service techs, industrial maintenance professionals, and pneumatic system installers are the typical end users who specify and install this part.

This gauge is engineered as a direct accessory for Parker Series 14 and Series 05 FRL components, specifically the 14E Miniature Filter/Regulator, the 14R Miniature Regulator, and the P31 Mini Regulator. It is well-suited to residential and light commercial pneumatic control applications where space is limited and precise pressure monitoring of a miniature regulator stage is required. The 1/8 inch NPT port matches the gauge port found on the listed Parker miniature FRL units.

Key Features

• Pressure range of 0 to 160 psi for full-range monitoring of miniature regulator output
• 1/8 inch NPT port connection for direct installation on compatible Parker FRL units
• Lightweight at 0.2 pounds, suited for compact and space-constrained installations
• Sold individually, single package quantity with no minimum order beyond one unit
• Compatible with Parker Series 14 and Series 05 FRL product lines

Compatibility

Designed for use with the Parker 14E Miniature Filter/Regulator, 14R Miniature Regulator, and P31 Mini Regulator. Part of the Parker Series 14 and Series 05 FRL accessory family.

Installation Notes

Installation is typically performed by a licensed pneumatic systems technician or qualified maintenance professional. Before installing or removing the gauge, depressurize the system completely and verify zero pressure at the gauge port. Use appropriate thread sealant on NPT threads in accordance with the system fluid and applicable codes. Do not overtighten the gauge into the port body, as this may damage the miniature regulator housing.
