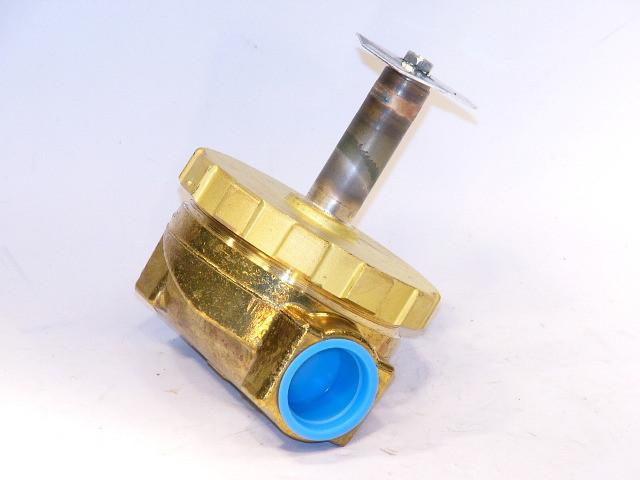

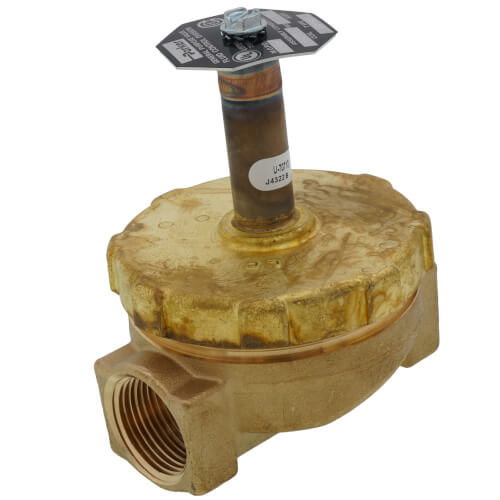

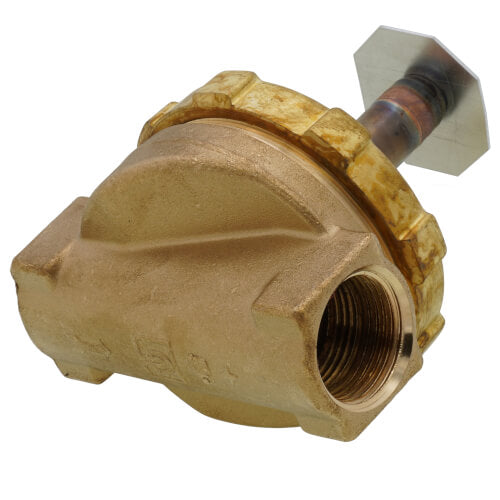

Parker Hannifin 70713 GP607 Solenoid Valve 3/4 Inch NPT 1-10 PSI Steam NC

Product Description

The Parker Hannifin 70713 GP607 is a robust solenoid valve designed for steam applications requiring 1 to 10 PSI. Primarily developed for use with low pressure steam, this valve also functions efficiently with hot water and other non-corrosive fluids.

• Ideal for HVAC systems and industrial steam applications
• Durable brass construction with a Teflon diaphragm
• Supports temperatures from -20 degrees Fahrenheit to 240 degrees Fahrenheit

Product Highlights

This normally closed valve has a port size of 3/4 inches and offers a flow capacity of 7.4 Cv. It's suited for environments where space is a constraint due to its compact design. Manufactured by Parker Hannifin, it ensures reliability and performance in demanding settings.

Technical Specifications

• Body Material: Brass
• Seat Material: Stainless Steel
• Diaphragm Material: Teflon
• Fluid Temperature Range: -20°F to 240°F
• Flow Capacity: 7.4 Cv
• Pressure Range: 1-150 PSI for air, water, oil; 1-10 PSI for steam
• Connection Type: FNPT x FNPT
