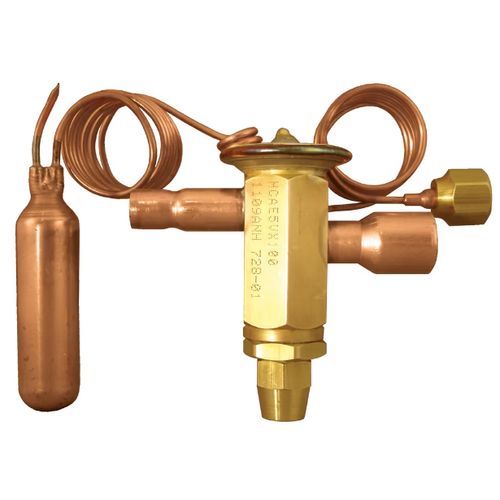

Parker Hxcae-3-vx100h Expansion Valve 1-1/2-3 Ton

Product Description

The PARKER HXCAE-3-VX100H expansion valve is designed for air conditioning and heat pump systems. It features a stainless steel power element and field adjustable superheat. The valve has a low pressure drop internal check valve and is designed for air or water source systems. It responds to changes in refrigerant system pressure and temperature.

• Balanced port valve designed for air conditioning and heat pumps
• Stainless steel power element
• Factory set or field adjustable

Product Highlights

This expansion valve ensures optimal pressures in the expansion section of the system.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: HXCAE-3-VX100H
• Country of Origin: United States

Technical Specifications

• Brand Name: Parker
• Horsepower/Tons: R22
• Type: AC & Refrigeration Components > AC & Refrigeration Valves > Therm
• Refrigerant: Straight-Through
• Equalizer Type: External
• Application: Air Conditioning, Bi-Flow (Package) Systems, Heat Pump Systems
• Connection Type: Chatleff
• Ton: 1-1/2 to 3
• Equalizer: 1/4" FL. NUT
• Refrigerant Type: R-407C, R-22
• Brand: PARKER
• MPN: HXCAE-3-VX100H
• Model: HXCAE-3-VX100H
• Country of Origin: MX
• Category: Business & Industrial
• Product Type: Thermostatic Expansion Valve
• Series: HX/HXC
• For Capacity - Minimum: 1.5 ton
• For Capacity - Maximum: 8 ton
• Inlet Connection Size: 3/8 in
• Inlet Connection Gender: Female
• Outlet Connection Size: 1/2 in
• Outlet Connection Gender: Female
• Equalizer Connection Size: 1/4 in
• Equalizer Connection Type: SAE Flare
• For Refrigerant Type: R-22; R-407A; R-407C; R-407F
• Not For Refrigerant Type: R-410A
• Balanced Port Design: Balanced
• Superheat Adjustment: Field Adjustable
• Maximum Operating Pressure: 700 psi
• Evaporator Temperature - Minimum: 20 00b0F
• Evaporator Temperature - Maximum: 40 00b0F
• Capillary Length: 30 in
• Nominal Capacity - General: 3 ton
• Valve Body Material: Brass
• Element Type: Permanent
• Element Material: Stainless Steel
• Includes: Bulb Strap, Mounting Hardware
• Application Temperature: Air Conditioning
• Liquid Subcooling Temperature: Variable
• Adjustable Range: Static -0.4 to 15.8 00b0
• Control Direction: Bi-Directional
• Reducing Flare Nut Size: 1/4 in
• Operating Temperature - Minimum: -40 00b0F
• Operating Temperature - Maximum: 190 00b0F
• Standards: UL Listed
• Nominal Capacity: 3 ton
• UNSPSC: 40141612
• Condition: New
• Features: Thermostatic Expansion Valve, HX Valve, R-410A, Nominal Capacity
• Compatible Brand: PARKER
• Battery Included: No
• California Prop 65 Warning: N
• UPC: 687472496250
