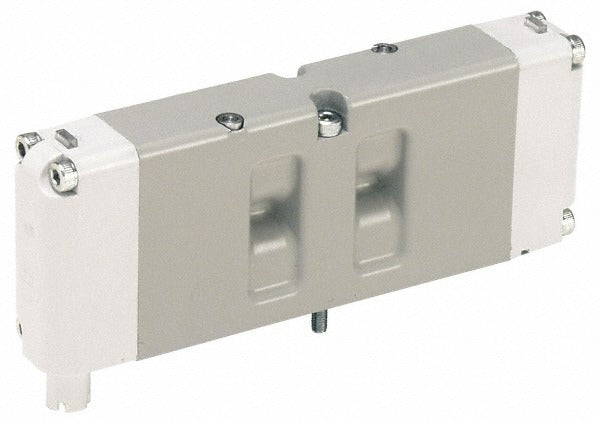

Parker HB6VXBG0G9A Solenoid Valve 3-position 24V

Product Description

The PARKER HB6VXBG0G9A is a double solenoid, 3-position directional control valve with a center exhaust open configuration. It is designed for pneumatic circuit control in industrial and automated systems. The valve features an aluminum body, Buna-N seals, and operates at 24 volts DC. With a Cv factor of 0.55 and a minimum working pressure of 35 psi, it handles light-to-medium pneumatic actuation tasks. The ISO 15407-2 less-base format means it mounts to a compatible manifold base rather than installing as a standalone inline valve. Licensed industrial maintenance technicians and pneumatic systems integrators are the primary installers.

This valve is suited for industrial automation, machine tool, and fluid power applications where a 3-position center exhaust open function is required. The center exhaust open configuration allows all ports to exhaust to atmosphere when the valve is in the de-energized center position, making it appropriate for applications where actuator drift or pressure lock must be avoided. The valve is supplied without a manifold base per the ISO 15407-2 specification and must be paired with a compatible base for installation.

Key Features

• Double solenoid, 3-position configuration with center exhaust open unactuated state
• Operates at 24 volts DC for compatibility with common industrial control systems
• Aluminum body construction for lightweight, corrosion-resistant performance
• Buna-N seals suitable for general-purpose pneumatic media
• Cv factor of 0.55 supporting light-to-medium flow pneumatic circuits
• ISO 15407-2 less-base design for manifold-mount installations

Compatibility

Designed as an ISO 15407-2 less-base solenoid valve for use with compatible manifold bases in pneumatic directional control applications. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pneumatic systems integrator familiar with directional control valve circuits. Depressurize and lock out the pneumatic system before removing or installing any valve. Verify that the manifold base is ISO 15407-2 compatible before mounting. Confirm that control circuit voltage matches the 24 volts DC coil rating prior to energizing.
