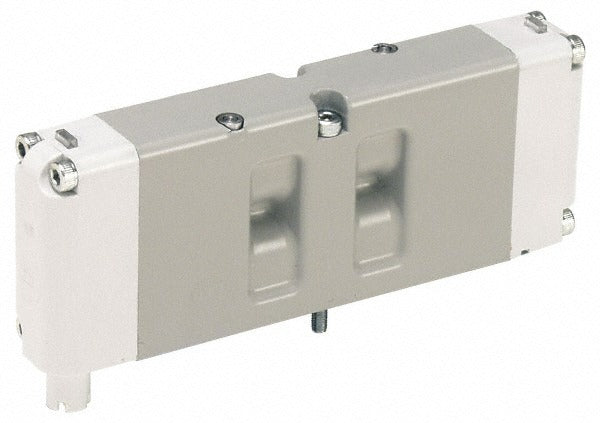

Parker HB6VXBG023A Double Solenoid Valve 3-position

Product Description

The PARKER HB6VXBG023A is a double solenoid, 3-position directional control valve with a center exhaust open configuration. It is designed for use in pneumatic systems where controlled, bi-directional actuation is required and the center position must exhaust downstream pressure when neither solenoid is energized. The valve body is constructed from aluminum with a Buna-N seal, rated for operation at 120 volts AC. With a Cv factor of 0.55 and a minimum working pressure of 35 psi, this valve is suited for precise flow control in automated machinery and industrial pneumatic circuits. Licensed HVAC, automation, and industrial service technicians are the typical installers.

This valve is designed for integration into pneumatic directional control applications in industrial and commercial settings. The center exhaust open unactuated state makes it appropriate for systems requiring pressure relief at the actuator ports when the valve is in its neutral position. It conforms to the ISO 15407-2 standard and is supplied as a valve less base, meaning a compatible manifold base must be ordered separately. It is used in applications such as pneumatic cylinder control, automation equipment, and process machinery requiring double-solenoid actuation.

Key Features

• Double solenoid, 3-position design with center exhaust open unactuated state
• Aluminum valve body for lightweight, corrosion-resistant construction
• Buna-N seal material for compatibility with standard pneumatic media
• Rated at 120 volts AC for direct integration with common control circuits
• Cv factor of 0.55 for controlled flow in precision pneumatic circuits
• Conforms to ISO 15407-2 standard; supplied valve less base for manifold mounting

Compatibility

Designed as an ISO 15407-2 compliant directional control valve for use with a compatible manifold base in industrial pneumatic systems. Specific base and manifold compatibility should be verified with PARKER documentation before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic directional control systems. Depressurize the pneumatic circuit and de-energize all control power before handling or installing the valve. This part is supplied without a manifold base; ensure a compatible ISO 15407-2 base is installed before mounting. Verify that supply voltage matches the 120 volt AC coil rating prior to energizing the solenoid.
