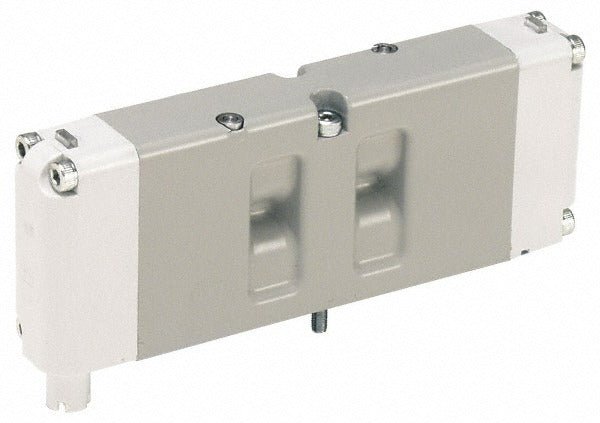

Parker HB5VXBG0G9A Solenoid Valve Bspp 24V All Ports Blocked

Product Description

The PARKER HB5VXBG0G9A is a BSPP-threaded solenoid valve with an all-ports-blocked unactuated state, designed for use in pneumatic directional control applications. The valve body is constructed from aluminum and uses a Buna-N seal, making it suitable for a range of compatible media and temperatures up to 120 degrees F. Operating at 24 volts DC, it delivers a Cv rating of 0.500 and requires a minimum working pressure of 35 psi. This valve is specified to ISO 15407-2 as a valve-less-base configuration and carries cCSAus approval along with an IP65 ingress protection rating. Licensed trades and industrial MRO technicians install this component in manifold and subbase port assemblies.

This valve is suited for pneumatic control systems that require BSPP port connections and compliant manifold or subbase mounting per ISO 1179 specifications. Typical installations include automated machinery, process control equipment, and fluid power systems where a de-energized all-ports-blocked condition is required to hold actuator position or prevent unintended flow. The IP65 rating makes it appropriate for use in environments with dust or water spray exposure. The ISO 15407-2 less-base designation means the valve requires a compatible subbase or manifold for installation and does not include one in the package.

Key Features

• All-ports-blocked unactuated state holds actuator position when de-energized
• BSPP thread standard with ports meeting ISO 1179 manifold and subbase specifications
• IP65-rated enclosure protects against dust ingress and water spray
• cCSAus approved for use in North American industrial applications
• Aluminum body with Buna-N seal offers a balance of light weight and chemical compatibility
• ISO 15407-2 less-base configuration for manifold or subbase mounting

Compatibility

Designed for use with BSPP manifold and subbase assemblies meeting ISO 1179 and ISO 15407-2 specifications. A compatible subbase or manifold is required and is not included. No additional specific model compatibility was provided in the product data.

Installation Notes

Installation should be performed by a qualified fluid power or industrial automation technician. De-energize and depressurize the system fully before removing or installing any solenoid valve. This valve requires a compatible ISO 15407-2 subbase or manifold and does not mount independently. Verify that the supply voltage is 24 volts DC and that system pressure meets the 35 psi minimum working pressure requirement before commissioning.
