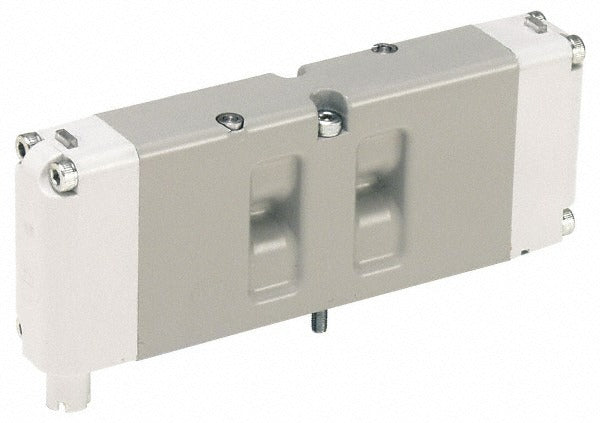

Parker HB2VXBG0G9A 4-way 2-position Solenoid Valve Bspp

Product Description

The PARKER HB2VXBG0G9A is a 4-way, 2-position solenoid valve designed for directional control of pneumatic circuits. It operates in the normally open state through ports 1 and 2, shifting to the actuated position when 24 VDC is applied to the coil. The valve body is aluminum with a Buna-N seal, making it suitable for use in dry air and general-purpose pneumatic systems. With a Cv rating of 0.550 and a minimum working pressure of 30 psi, this valve fits compact manifold or subbase configurations and is rated to IP65 for dust and water ingress protection. It conforms to ISO 1179 and ISO 15407-2 specifications and carries cCSAus approval.

This valve is suited for industrial automation, machine control, and fluid power applications where directional switching of air or compatible media is required. The BSPP thread standard makes it compatible with manifold and subbase port assemblies that meet BSPP and ISO 1179 specifications. It is supplied as a valve body less base, meaning a compatible subbase or manifold block must be used for installation. Typical use cases include actuator control, cylinder sequencing, and process automation panels in light industrial environments.

Key Features

• 4-way, 2-position directional control with normally open state through ports 1 and 2
• 24 VDC coil voltage for direct integration with low-voltage control systems
• Aluminum body construction for lightweight, corrosion-resistant performance
• Buna-N seal material compatible with dry air and general pneumatic media
• IP65-rated enclosure protects against dust ingress and water jets
• cCSAus approved and ISO 15407-2 compliant; supplied valve less base for subbase or manifold mounting

Compatibility

Designed for use with BSPP manifold and subbase assemblies that meet ISO 1179 specifications. Supplied as an ISO 15407-2 valve less base; a compatible subbase or manifold is required for installation.

Installation Notes

Installation of this solenoid valve should be performed by a qualified fluid power or industrial automation technician. De-energize the control circuit and depressurize the pneumatic system completely before beginning installation or removal. Verify that the subbase or manifold block is compatible with BSPP thread and ISO 15407-2 valve footprint dimensions before mounting. Confirm supply voltage matches the 24 VDC coil rating to avoid coil damage.
