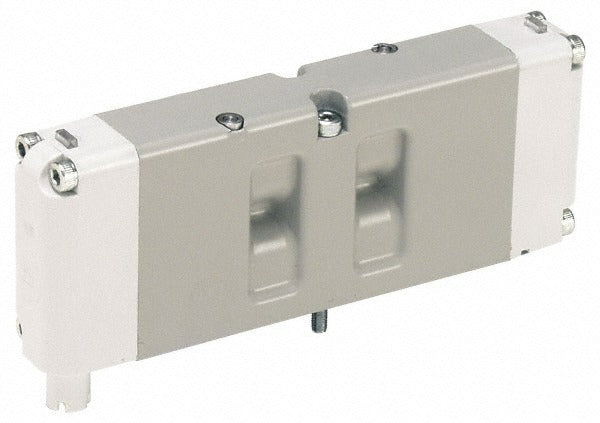

Parker HB2VXBG023A Solenoid Valve 2-position 120V

Product Description

The PARKER HB2VXBG023A is a double solenoid, 2-position directional control valve designed for pneumatic systems requiring a normally open state through ports 1 and 2. The valve body is constructed from aluminum and uses a Buna-N seal, making it suited for applications where weight savings and chemical compatibility with common pneumatic media are priorities. Operating at 120 VAC, it carries a Cv factor of 0.55 and requires a minimum working pressure of 30 psi. It conforms to ISO 15407-2 standards and is supplied as a valve less base, meaning a compatible manifold base must be sourced separately. Automation technicians and industrial maintenance professionals are the primary installers of this component.

This valve is intended for use in industrial pneumatic control circuits where directional control of airflow is required. The normally open configuration through ports 1 and 2 makes it appropriate for fail-safe applications where air must flow freely when the solenoid is de-energized. The ISO 15407-2 form factor allows integration into modular valve station assemblies. It is rated for use up to 120 degrees F, making it suitable for standard indoor industrial environments. It is not intended for high-temperature or outdoor-exposed installations without additional protection.

Key Features

• Double solenoid, 2-position configuration with normally open state through ports 1 and 2
• Aluminum body construction for reduced weight in pneumatic panel assemblies
• Buna-N seal material compatible with standard compressed air and many inert gases
• 120 VAC operating voltage for direct connection to standard industrial control circuits
• ISO 15407-2 compliant form factor for use with compatible modular manifold bases
• Cv factor of 0.55 and minimum working pressure of 30 psi

Compatibility

Conforms to ISO 15407-2 and is designed for installation on a compatible ISO 15407-2 manifold base, which is sold separately. No specific manifold model numbers were provided in the product data.

Installation Notes

This valve should be installed by a qualified automation or industrial maintenance technician familiar with pneumatic directional control systems. De-energize all electrical circuits and depressurize the pneumatic system fully before servicing or mounting the valve. Because this unit ships without a base, confirm manifold base compatibility with the ISO 15407-2 specification before installation. Follow NEC guidelines for wiring the 120 VAC solenoid coil leads to the control circuit.
