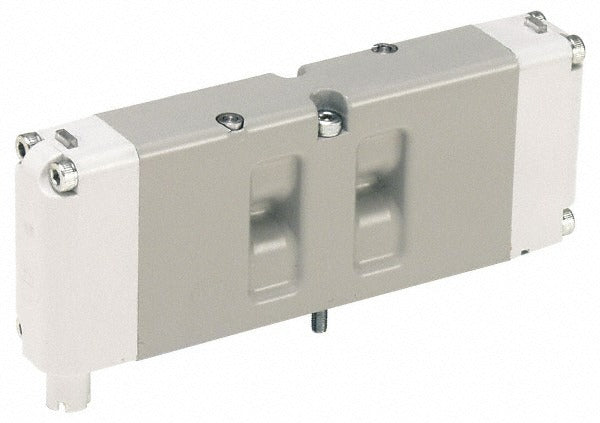

Parker HB1VXBG0G9A 4-way 2-position Solenoid Valve 24VDC

Product Description

The PARKER HB1VXBG0G9A is a 4-way, 2-position solenoid valve designed for directional control of pneumatic or fluid circuits. It operates in a normally open state through ports 1 and 2, shifting to the alternate flow path when the solenoid is energized at 24 volts DC. The valve body is aluminum with a Buna-N seal, making it well suited for general-purpose industrial and commercial applications. With a Cv rating of 0.550 and a minimum working pressure of 30 psi, it delivers consistent directional control in compact manifold assemblies. Licensed HVAC, refrigeration, and industrial service technicians are the primary installers.

This valve is built to ISO 15407-2 specifications and is rated for subbase or manifold mounting using BSPP thread connections conforming to ISO 1179. It is appropriate for use in commercial HVAC controls, pneumatic automation circuits, and refrigeration or process systems where a compact 4-way directional valve is required. The IP65 enclosure rating makes it suitable for installations in environments where dust and low-pressure water jets are a concern. The valve is supplied without a base, requiring a compatible ISO 15407-2 subbase or manifold at the installation point.

Key Features

• 4-way, 2-position directional control with normally open state through ports 1 and 2
• 24 VDC solenoid actuation
• Aluminum body with Buna-N seal for general-purpose fluid compatibility
• Cv rating of 0.550 with a minimum working pressure of 30 psi
• IP65 rated enclosure for protection against dust and water ingress
• cCSAus approved; meets ISO 1179 and ISO 15407-2 specifications
• BSPP manifold and subbase ports; valve supplied less base

Compatibility

Designed for ISO 15407-2 compliant subbases and manifolds with BSPP port threading per ISO 1179. No specific model numbers were provided in the product data; confirm subbase compatibility with Parker documentation before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid control systems. De-energize and depressurize the circuit fully before removing or installing the valve. This valve requires a separately sourced ISO 15407-2 subbase or manifold and is not functional as a standalone inline fitting. Verify that the system supply voltage matches the 24 VDC coil rating before energizing, and confirm all port connections are torqued to the subbase manufacturer's specification using appropriate BSPP fittings.
