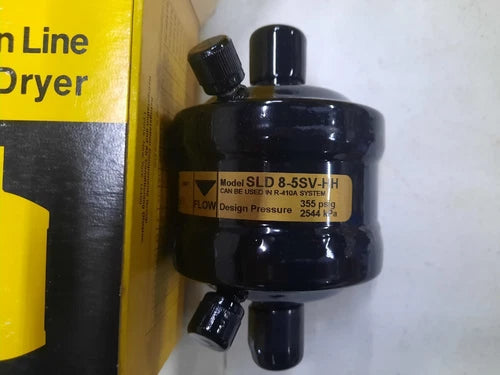

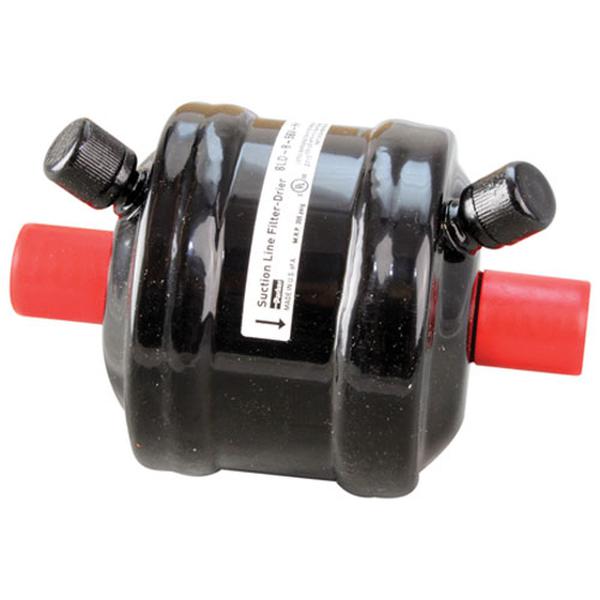

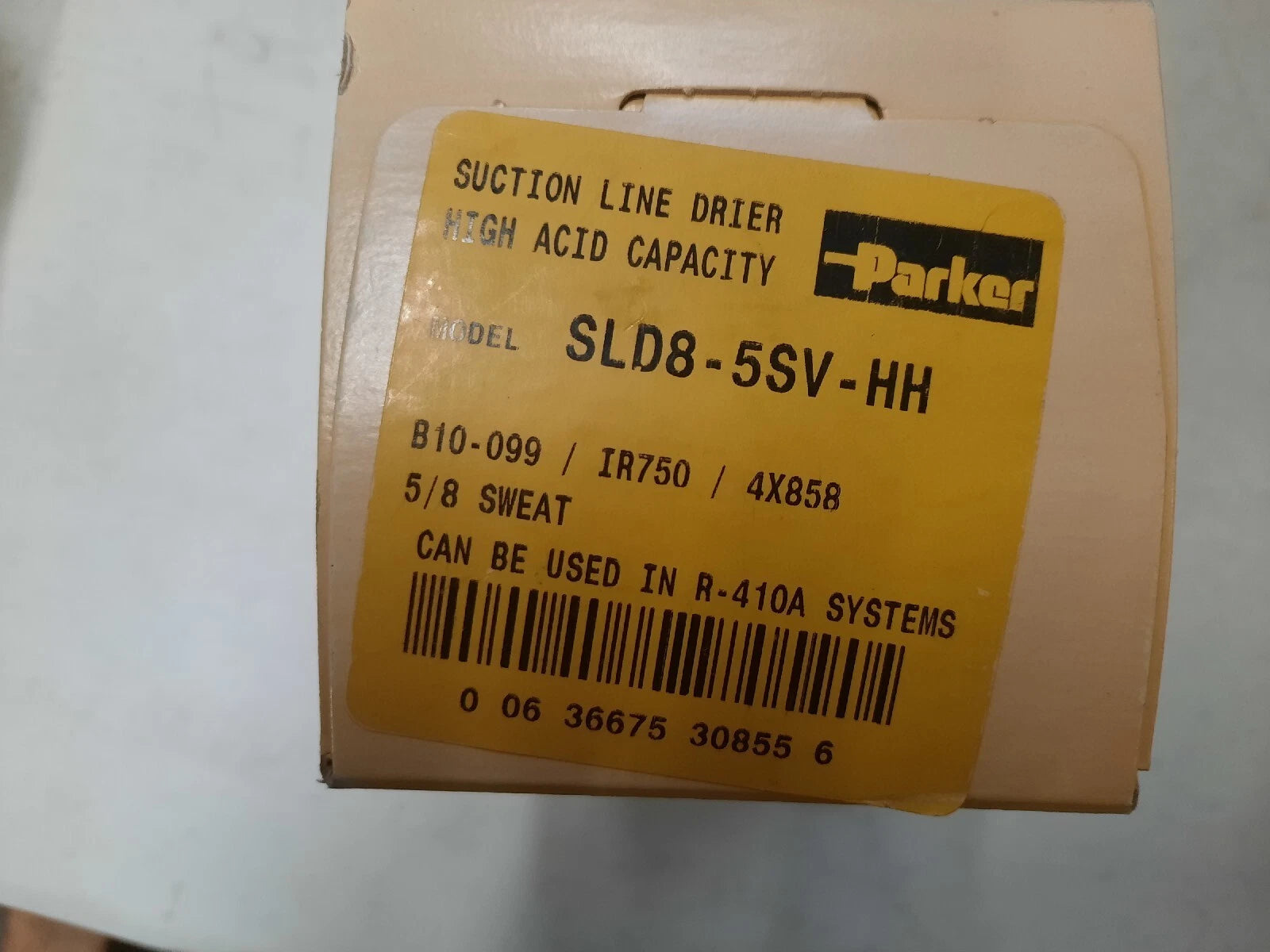

Parker Hannifin SLD8-5SV Suction Line Filter Drier

Product Description

The Parker Hannifin SLD8-5SV is a suction line filter drier designed for HVAC systems. It features a molded porous core which aids in system clean-up. This filter drier provides high acid capacity and supports high flow rates. The unit is built with solid copper sweat fittings and is compatible with R410A refrigerant. It measures five point six six inches in length and has a connection size of five eighths inches.

• Molded porous core for filtration
• Includes access valves for pressure drop measurement
• Compatible with R410a refrigerant

Product Highlights

The Parker Hannifin SLD8-5SV is UL and CSA listed. It offers five hundred hours of salt spray protection, making it durable. The design allows for installation in tight spaces, which is useful in various HVAC applications.

Product Information

Standard Information

• Brand: Parker Hannifin
• Manufacturer Part Number: SLD 8-5SV HH

Technical Specifications

• Type: Suction Line / Sweat
• Desiccant Volume: 8 CU. IN.
• Connection Size: 5/8 inches
• Length: 5.66 inches
• Connection Material: Solid Copper
• Compatible Refrigerants: All commercially available refrigerants
• Features: High acid capacity, low pressure drop, high flow rates, designed for system clean-up
• Listings: UL Listed, CSA Listed
