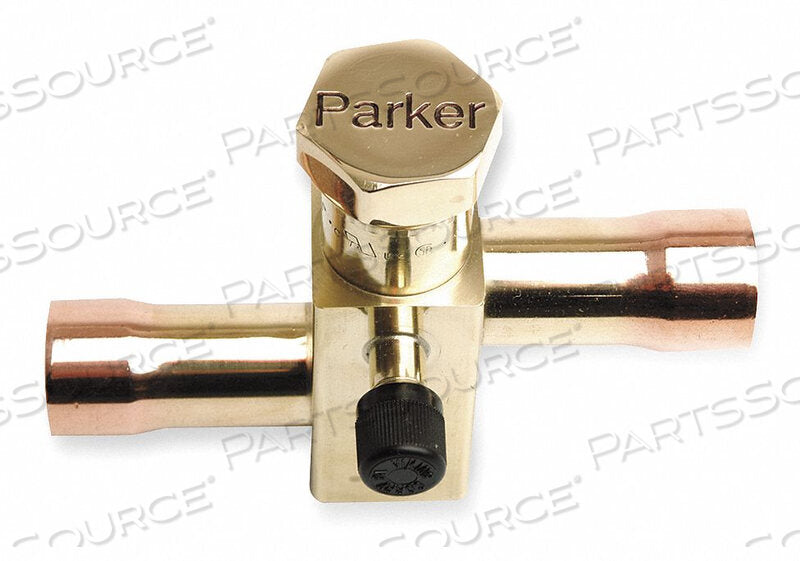

Parker Hannifin QL171R08-08 Service/Shut Off Valve 1/2 in Copper

Product Description

The Parker Hannifin QL171R08-08 is a service/shut off valve designed for plumbing applications with a 1/2 inch copper connection. This valve is made with a brass body for strength and durability, ensuring it lasts in demanding environments.

• Constructed for bi-directional flow.
• Compatible with R-22 air conditioning systems and heat pumps.
• Includes a 1/4 inch SAE access valve for maintenance ease.

Product Highlights

The valve operates effectively across a temperature range of -40 degrees Fahrenheit to +250 degrees Fahrenheit and is rated for a maximum working pressure of 750 psi. Its design includes a front seating style, which aids in reliable sealing.

Product Information

Standard Information

• Item: Service/Shut Off Valve 1/2 in Copper
• Brand: Parker Hannifin Corporation

Technical Specifications

• MPN: QL171R-08-08
• Body Material: Brass
• Connection Material: Copper
• Connection Size: 1/2 in ODF
• Flow: Bi-directional
• For Use With: R-22 Air Conditioning Condensing Units and Heat Pumps
• Max. Working Pressure: 750 psi
• Operating Temp. Range: -40 Degrees F to +250 Degrees F
