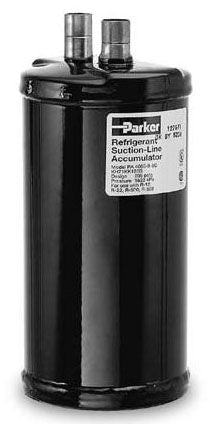

PARKER HANNIFIN PA4065-9-5C Suction Line Accumulator

Product Description

The PARKER HANNIFIN PA4065-9-5C suction line accumulator is suitable for use in heat pumps and HVAC systems. This unit effectively stores refrigerant and features a solid steel shell along with durable copper connections for reliable refrigerant lines. The U-tube design enhances the flow of refrigerant while minimizing oil entrapment, optimizing performance. The device is coated with a powder paint to resist corrosion, surpassing the rigorous 500-hour ASTM salt spray test. Enhanced safety is provided through integral forty-three hundred degree Fahrenheit fusible plugs. Additionally, a metering orifice is included for better control of refrigerant, and the unit is designed to be mounted vertically. It has a shell diameter of four inches and a height of nine inches.

• Compatible with heat pumps and HVAC compressors
• U-tube design for improved refrigerant flow
• Powder paint exterior for enhanced corrosion resistance

Product Highlights

Product Information

Standard Information

• Brand: PARKER
• Type: With Metering Orifice

Technical Specifications

• Connection Size: 5/8 ODF
• Shell Diameter: 4 inches
• Height: 9 inches
• R22 Capacity: 60
• Weight: 4.0 lbs
• Shipping Weight: 4.50 lbs
• Shipping Dimensions: 4.50 inches width, 13.80 inches length, 4.40 inches height
• Mounting Orientation: Vertical
