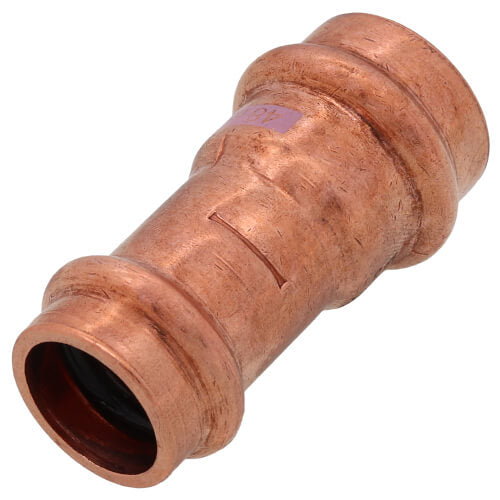

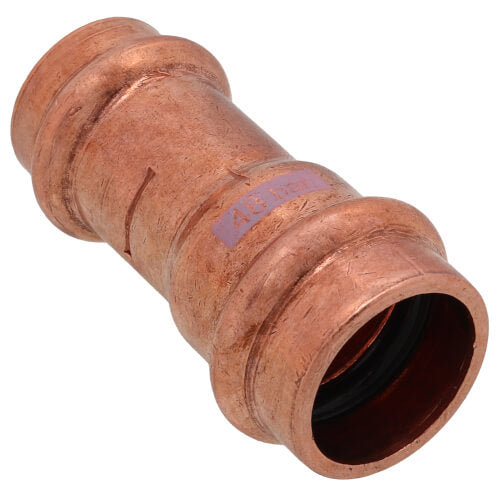

Parker Hannifin MZK-R1210-HNBR ZoomLock MAX Reducer 3/4 inches x 5/8 inches

Product Description

The PARKER HANNIFIN MZK-R1210-HNBR ZoomLock MAX reducer is designed for air conditioning and refrigeration markets, allowing contractors to make secure, leak-free connections. It provides a clean connection for refrigerant lines up to 700 psi. This reducer eliminates the need for gas and flames, offering more flexibility on job sites and removing the need to nitrogen-purge the lines.

• Less equipment and no gas needed
• Safer conditions, no fire hazards
• No hot work permits required

Product Highlights

Provides secure, leak-free connections for refrigerant lines, saving time and money with increased job site flexibility.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: MZK-R1210-HNBR
• Country of Origin: SPAIN

Technical Specifications

• Size: 3/4" x 5/8"
• Description: 3/4" X 5/8" Reducer
• Inlet Connection Size: 3/4"
• Outlet Connection Size: 5/8"
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Temperature: 250 F
• Minimum Operating Temperature: -40 °F
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Model Number: MZK-R1210-HNBR
• Refrigerant Type: 32, 125, 134A, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20
• Fitting Type: Reducer
• Material: Copper
