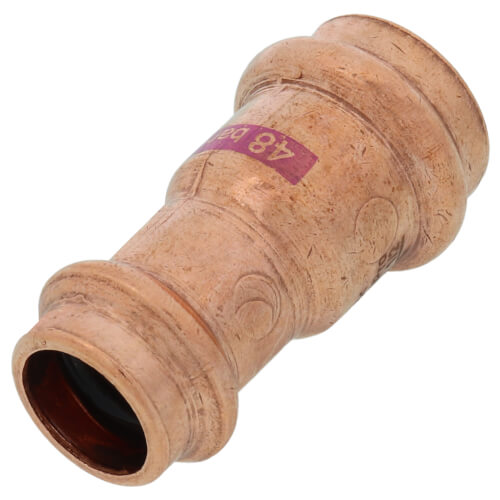

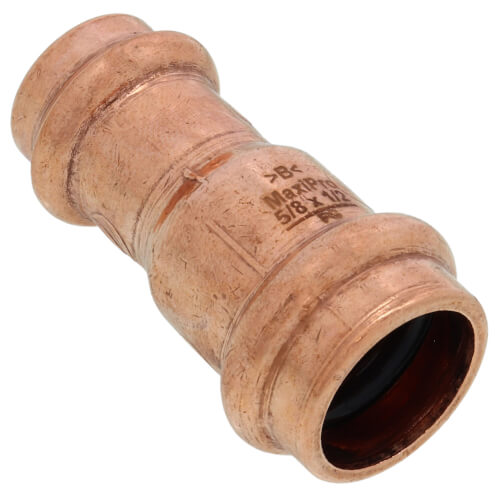

Parker Hannifin MZK-R108-HNBR 5/8 inches x 1/2 inches ZoomLock MAX Reducer

Product Description

The PARKER HANNIFIN MZK-R108-HNBR ZoomLock MAX reducer is designed for air conditioning and refrigeration markets, enabling secure, leak-free connections. This 5/8" x 1/2" reducer fitting allows for connections up to 700 psi without gas or flames. It eliminates the need to nitrogen-purge lines, offering flexibility on job sites.

• Less equipment and no gas needed
• Safer conditions, no fire hazards
• No hot work permits required

Product Highlights

Provides clean, leak-proof connections for refrigerant lines, improving system cleanliness and creating secure copper tube connections.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: MZK-R108-HNBR
• Country of Origin: SPAIN

Technical Specifications

• Size: 5/8" x 1/2"
• Inlet Connection Size: 5/8"
• Outlet Connection Size: 1/2"
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Temperature: 250 F
• Minimum Operating Temperature: -40 °F
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Model Number: MZK-R108-HNBR
• Refrigerant Type: 32, 125, 134A, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20
• Fitting Type: Reducer
• Connection Size 1: 1/2 in
• Connection Size 2: 5/8 in
• Connection Type 1: Press-to-Connect
• Connection Type 2: Press-to-Connect
• Connection Type: Press/Press
• For Use With: 1/4 to 1-1/8 in Pipes
• Material Construction: Copper
• Material: Copper
• Pressure Rating: 700 psi
• Temperature Rating: -40 to 250 deg F
• Connection Sizes: 1/2" - 5/8"
• Series: Zoomlock MAX
• Type: Reducers
