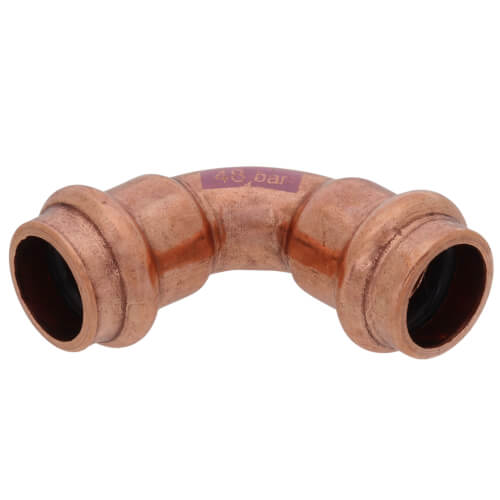

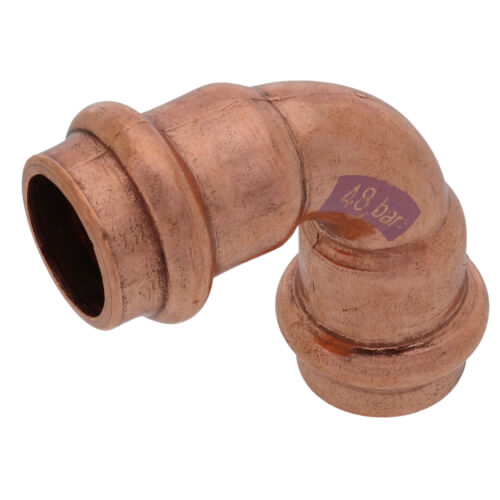

Parker Hannifin MZK-90E8-LR-HNBR 1/2 inches ZoomLock MAX 90-Degree Elbow

Product Description

The Parker Hannifin MZK-90E8-LR-HNBR is a 1/2 inches ZoomLock MAX 90-degree elbow fitting. It is designed specifically for use in air conditioning and refrigeration applications. This fitting allows contractors to create secure and leak-free connections without the need for flame-based soldering.

• Low equipment requirements and no gas necessary
• Enhances safety by eliminating fire hazards
• No need for hot work permits

Product Highlights

This elbow fitting simplifies installation in various environments, promoting a safer work condition.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: MZK-90E8-LR-HNBR

Technical Specifications

• Size: 1/2 inches
• Material: Copper
• Min Temp (F): -40°F
• Max Temp (F): 248°F
• Outlet Connection Size: 1/2 inches
• Inlet Connection Size: 1/2 inches
• Fitting Type: Long Radius 90 Degree Elbow
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Refrigerant Type: Compatible with various refrigerants including R32, R125, R134A, R290, R404A, R407A, R407C, R407F, R407H, R410A and others
• Elbow Degree: 90°
• Fitting Size 1: 1/2 in
• Fitting Size 2: 1/2 in
