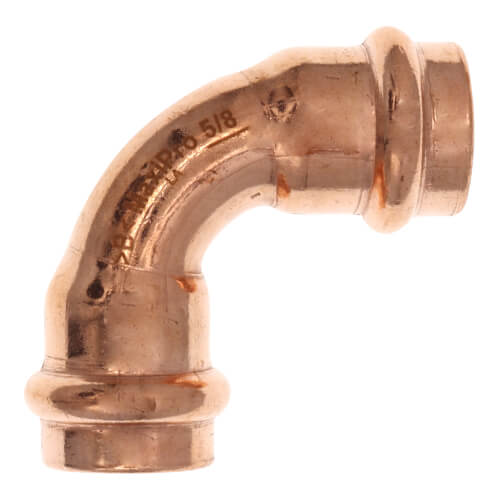

Parker Hannifin MZK-90E10-LR-HNBR 5/8 inches ZoomLock MAX 90-Degree Elbow

Product Description

The Parker Hannifin MZK-90E10-LR-HNBR is a 5/8 inches ZoomLock MAX fitting designed for use in air conditioning and refrigeration applications. This elbow fitting allows contractors to connect pipes at a 90-degree angle, enhancing the flow of refrigerant in systems. It is made from durable copper and guarantees a secure, leak-free connection. This solution is suitable for refrigerant lines with maximum pressures up to 700 psi, ensuring reliability and safety.

• No need for gas or additional tools
• Minimizes fire hazards during installation
• No hot work permits needed

Product Highlights

This fitting offers an efficient way to connect refrigerant lines while meeting industry safety standards.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: MZK-90E10-LR-HNBR

Technical Specifications

• Size: 5/8 inches
• Material: Copper
• Minimum Temperature: -40 degrees Fahrenheit
• Maximum Temperature: 248 degrees Fahrenheit
• Fitting Type: Long Radius 90 Degree Elbow
• Inlet Connection Size: 5/8 inches
• Outlet Connection Size: 5/8 inches
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Refrigerant Types: 32, 125, 134A, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20
• Elbow Degree: 90 degrees
• Fitting Size 1: 5/8 inches
• Fitting Size 2: 5/8 inches
