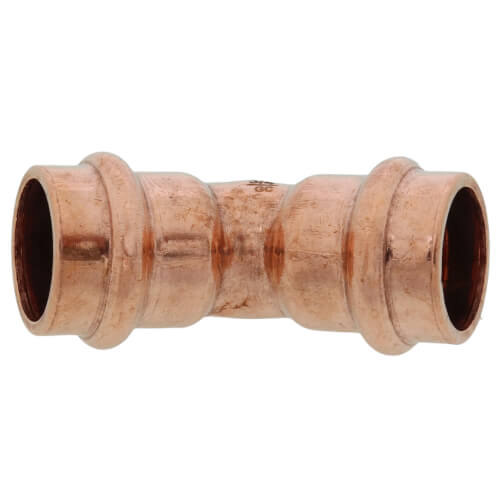

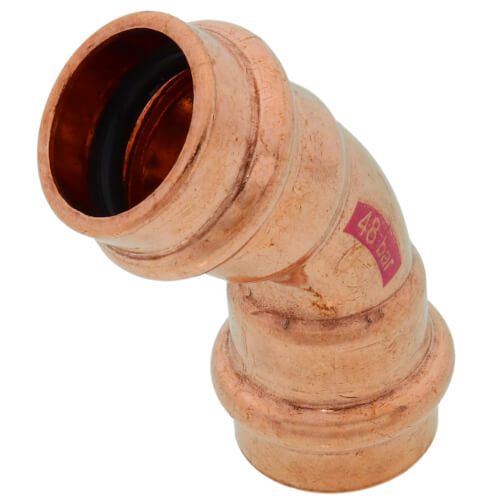

Parker Hannifin MZK-45E12-HNBR 3/4 inches ZoomLock MAX 45-Degree Elbow

Product Description

The PARKER HANNIFIN MZK-45E12-HNBR ZoomLock MAX fitting is suitable for air conditioning and refrigeration applications. This 3/4 inches 45-degree elbow ensures secure, leak-free connections, which are essential for refrigerant lines up to seven hundred psi. It eliminates the need for gas and flames, providing safety on job sites.

• Less equipment and no gas needed
• Safer work conditions without fire hazards
• No hot work permits required

Product Highlights

This fitting is designed for quick and reliable connections, enhancing efficiency for HVAC contractors.

Product Information

Standard Information

• Brand: Parker Hannifin
• Model Number: MZK-45E12-HNBR

Technical Specifications

• Size: 3/4 inches
• Material: Copper
• Minimum Operating Temperature: -40 degrees F
• Maximum Operating Temperature: 250 degrees F
• Inlet Connection Size: 3/4 inches
• Fitting Type: 45 Degree Elbow
• Outlet Connection Size: 3/4 inches
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Refrigerant Types: 32, 125, 134A, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20
• Connection Type: Press/Press
• Pressure Rating: 700 psi
• Temperature Range: -40 degrees F to 284 degrees F
