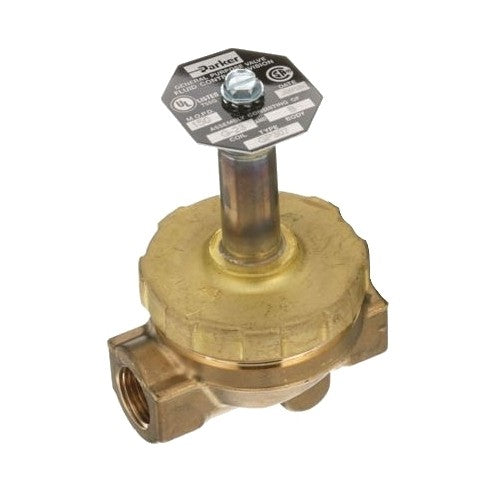

PARKER HANNIFIN GP307 Solenoid Valve 120/240V 3/8

Product Description

The PARKER HANNIFIN GP307 is a solenoid valve specifically designed for hot water applications. This valve features a brass body and a three-eighths inch connection. It operates in a normally closed (NC) configuration, meaning it allows fluid flow only when energized. The valve is compatible with both 120 and 240-volt power sources, making it suitable for a variety of standard voltage applications.

This solenoid valve can handle a maximum fluid temperature of one hundred seven degrees Celsius or two hundred twenty-five degrees Fahrenheit. It also supports a maximum operating pressure of ten bar or one hundred fifty PSI. The dimensions of the GP307 include a width of two and a half inches, length of four point three seven five inches, width dimension of three point three seven five inches, and height of four point seven five inches. The unit weighs two pounds.

• Designed for use in hot water applications, with a maximum fluid temperature of 107°C (225°F).
• Features a normally closed (NC) configuration, allowing flow only when energized.
• Operates with 120/240V power, suitable for standard voltage applications.

Product Highlights

This valve is ideal for various plumbing tasks and ensures reliable performance in hot water systems.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• MPN: GP307

Technical Specifications

• Size: 3/8
• Voltage: 120/240V
• Max Temp: 225°F (107°C)
• Pressure: 1-150 PSI
• Width: 2.5 inches
• Weight: 2 lbs
• Length: 4.375 inches
• Width Dimension: 3.375 inches
• Height: 4.75 inches
• Application: Water
• Type: NC
