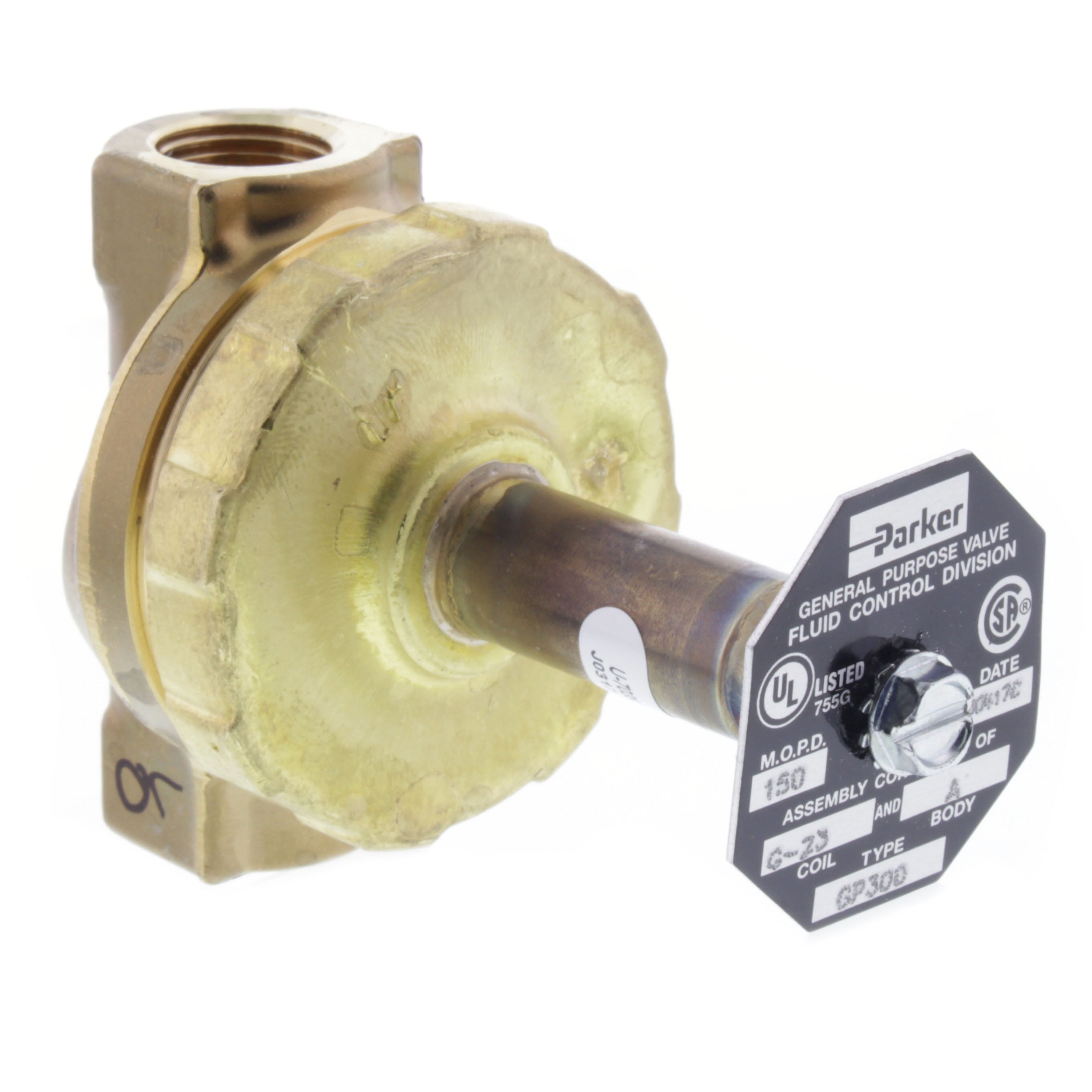

PARKER HANNIFIN GP300 Solenoid Valve

Product Description

The PARKER HANNIFIN GP300 is a two-way, normally closed solenoid valve. It effectively controls the flow of non-corrosive fluids across various setups. The valve's construction includes a forged brass body and Buna N diaphragm, ensuring compatibility with a range of fluids.

• Flow capacity of 3.35 Cv, supporting different flow rates.
• Designed for low and high pressure applications, with a range of 1 to 150 PSI.
• Equipped with a Type 430 stainless steel plunger for durability.

Product Highlights

The GP300 valve is robust for pressure management in plumbing systems. It handles fluid temperatures up to 225 degrees Fahrenheit, making it suitable for diverse environments.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• MPN: GP300

Technical Specifications

• Connection Size: 3/8 FPT
• Orifice Size: 1/2
• Flow Capacity: 3.35 Cv
• Normal Pressure Range: 1-150 PSI
• Fluid Temperature Maximum: 225 degrees Fahrenheit
• Body Pattern: Two-Way
• Connection Type: FNPT x FNPT
• Weight: 1.10 lbs
