Parker Hannifin BF164 Transistor Silicon NPN

Product Description

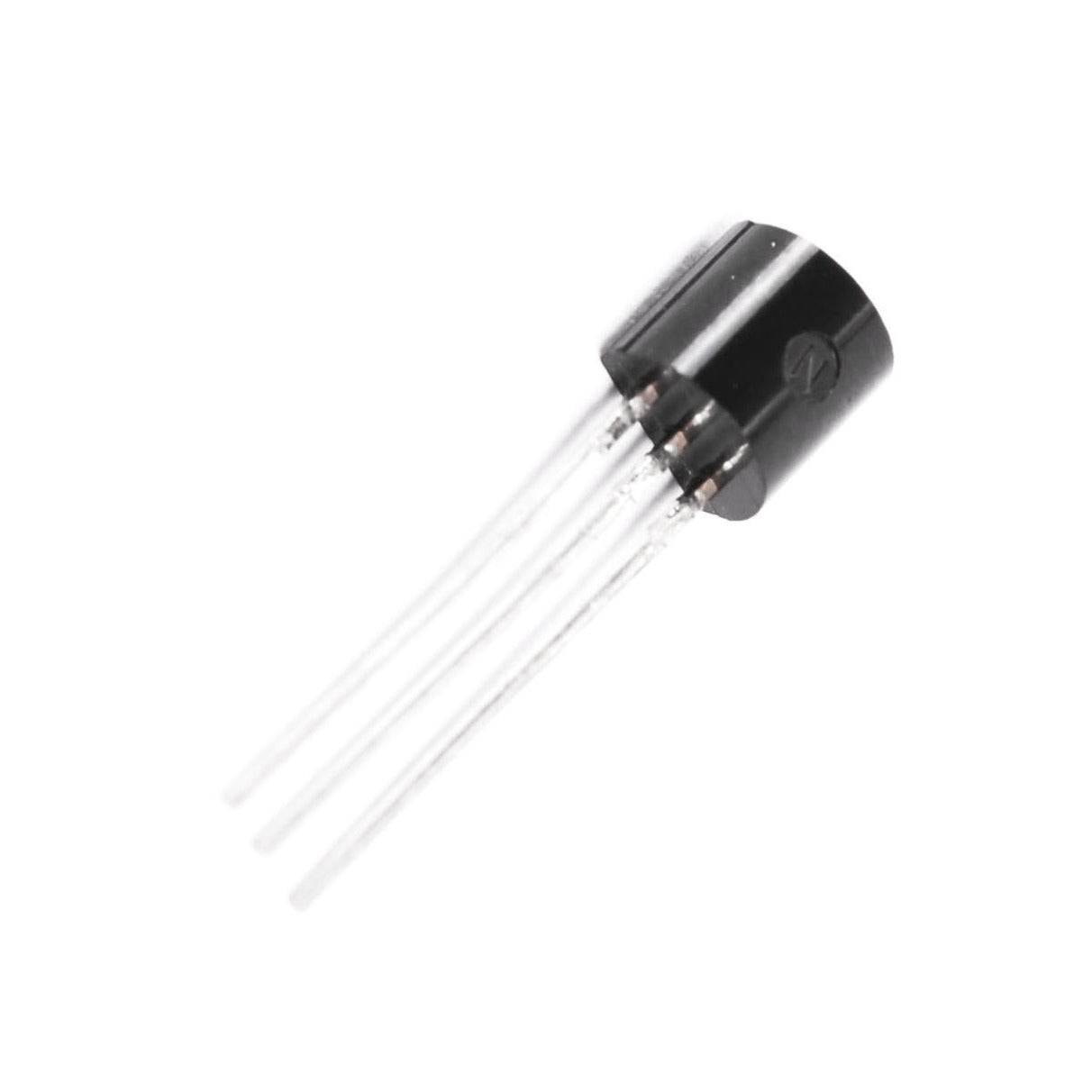

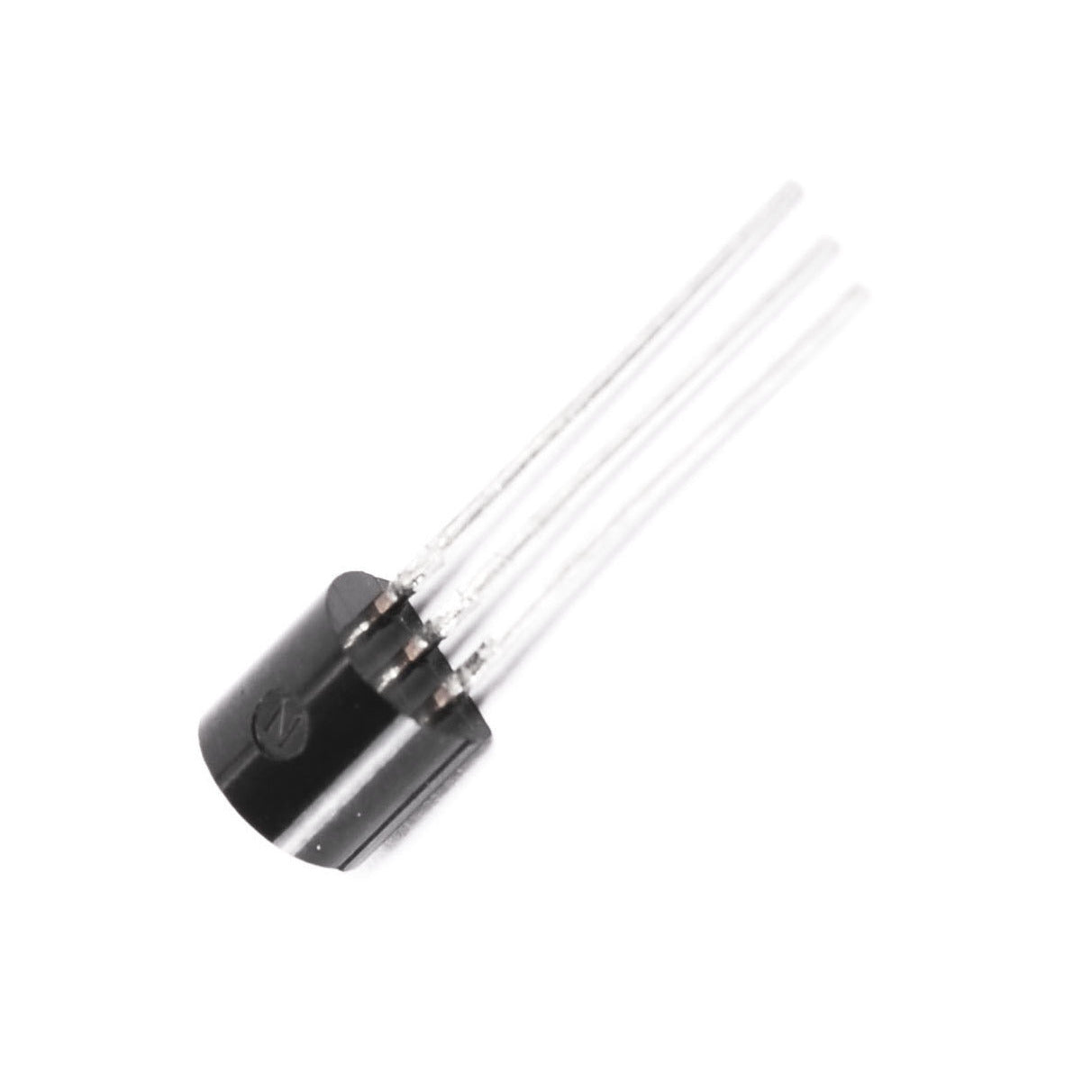

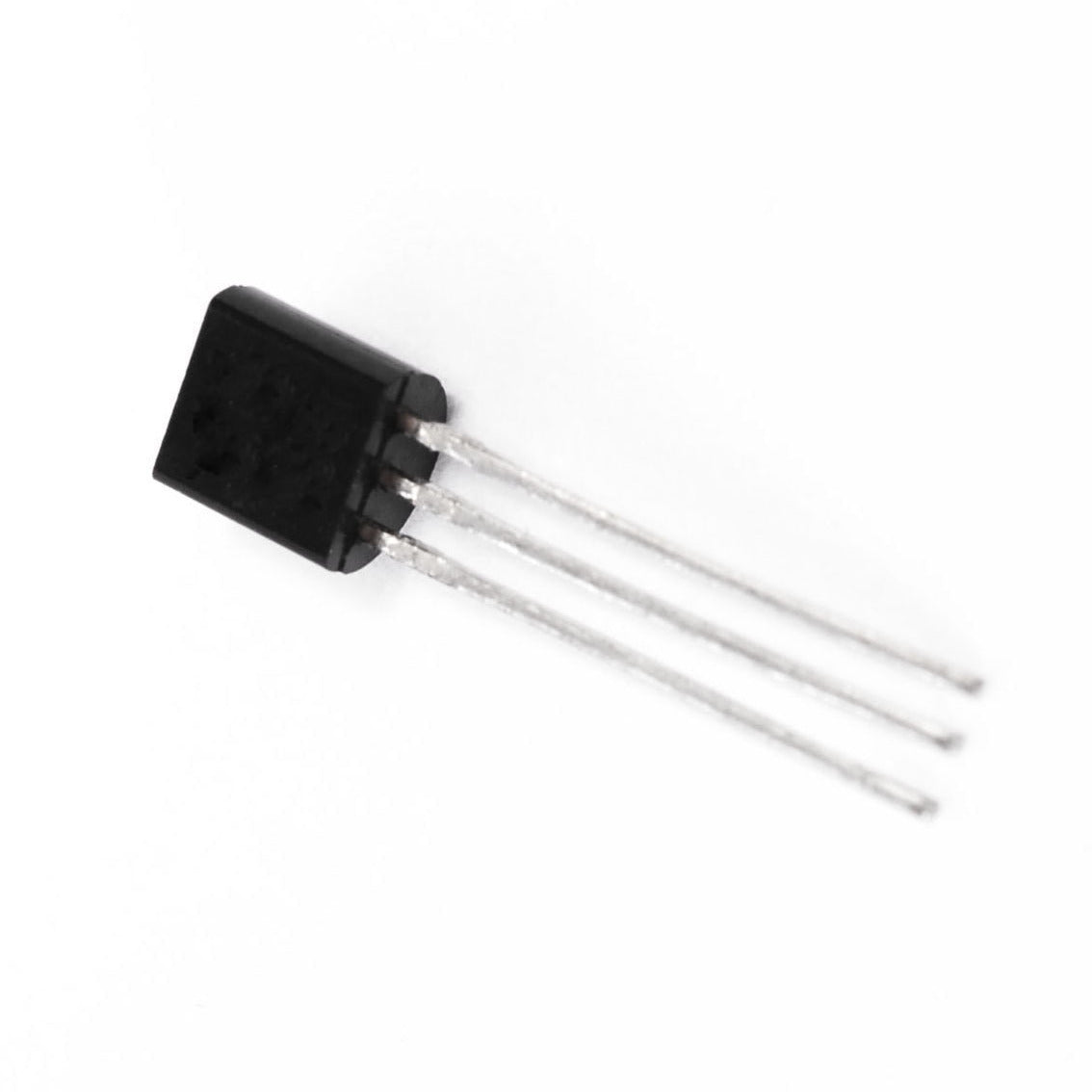

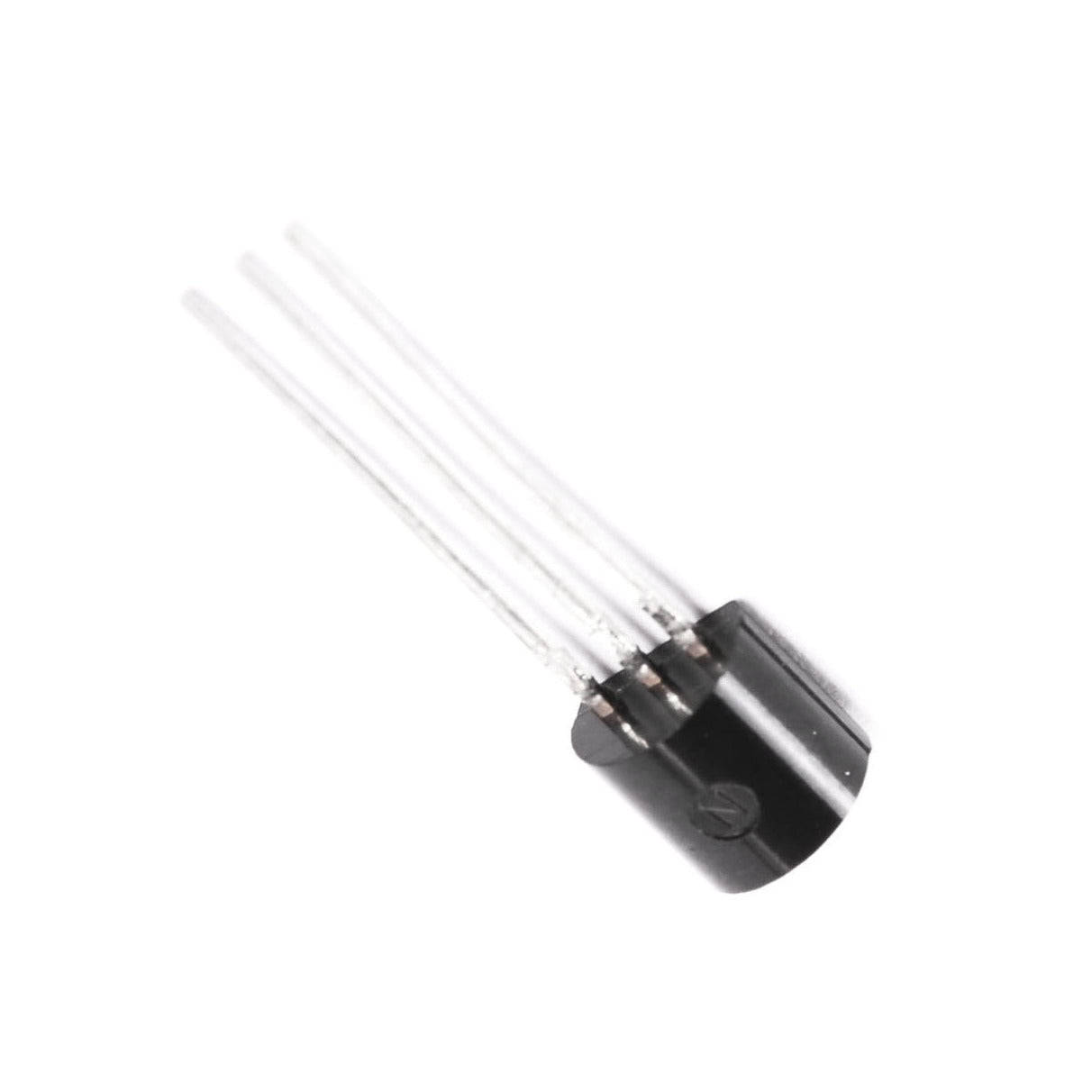

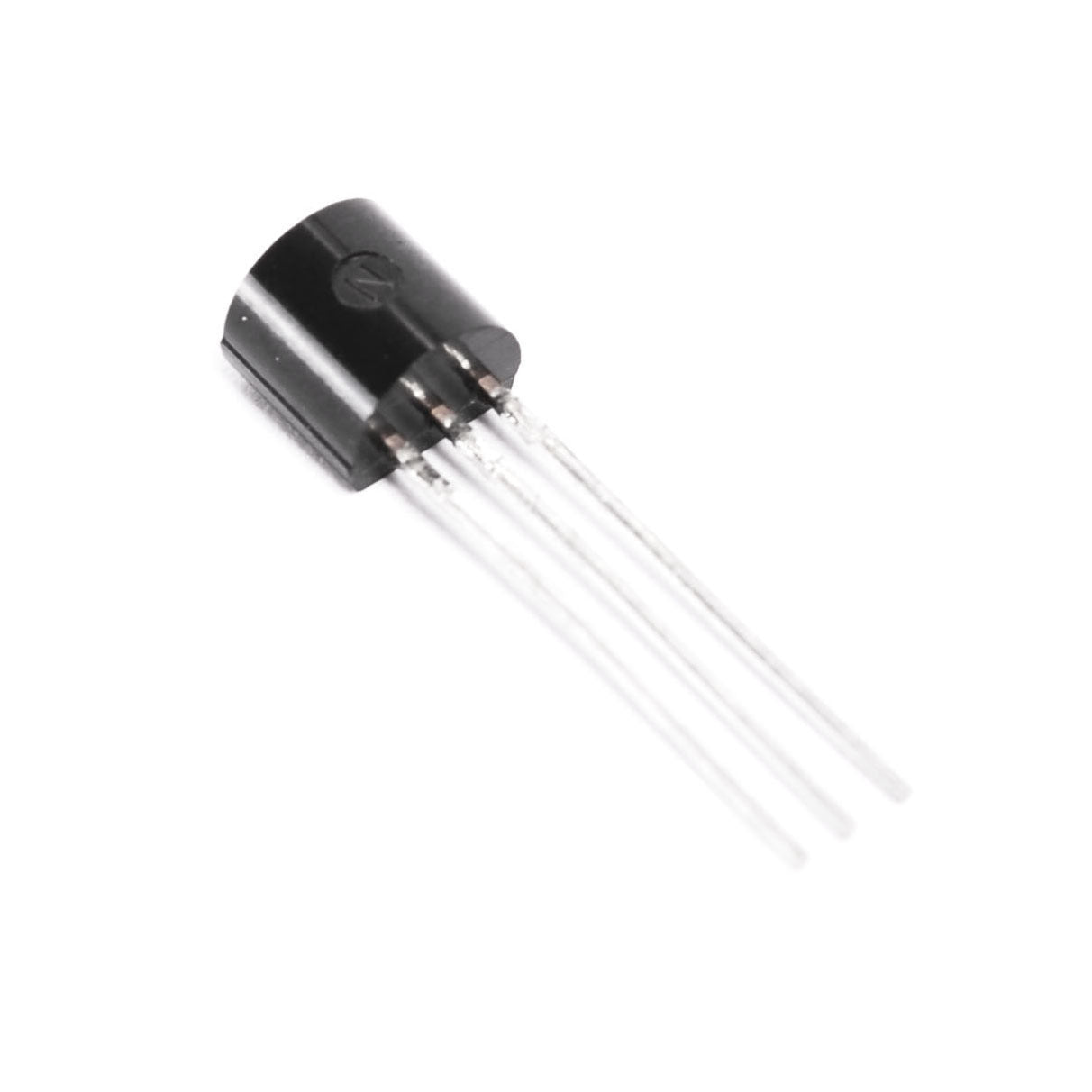

The Parker Hannifin BF164 is a silicon NPN transistor ideal for various electronic applications. It features a TO92 case and is designed for through-hole mounting. With a maximum collector-base voltage and collector-emitter voltage of 40 volts, the BF164 delivers reliable performance.

• NPN transistor in a TO92 package.
• Maximum collector voltage of 40V.
• Transition frequency of 400 MHz.

Product Highlights

This transistor is suitable for applications requiring up to 0.2 watts of collector power dissipation. It operates effectively with a collector current of up to 0.025 amps and has a minimum forward current transfer ratio of 30.

Product Information

Standard Information

• Brand: Parker Hannifin
• Type: Transistor Silicon NPN

Technical Specifications

• Maximum Collector-Base Voltage (Vcb): 40 V
• Maximum Collector-Emitter Voltage (Vce): 40 V
• Maximum Collector Current (Ic max): 0.025 A
• Maximum Power Dissipation (Pd): 0.2 W
• Forward Current Transfer Ratio (hFE) MIN: 30
• Collector Capacitance: 1.5 pF
• Transition Frequency (ft): 400 MHz
• Maximum Operating Junction Temperature (Tj): 125 °C
