Product Description

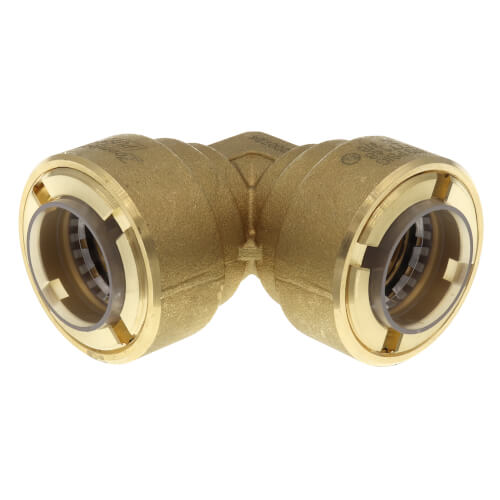

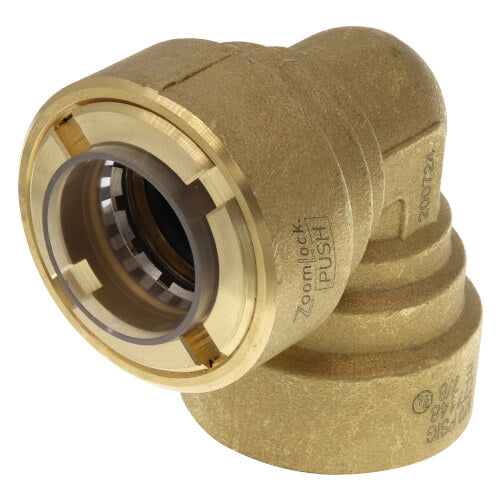

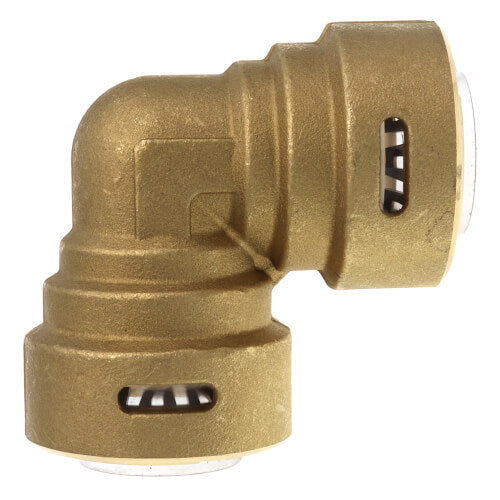

The Parker Hannifin 777148 is a 7/8 inch ZoomLock PUSH removable 90-degree elbow designed for quick and efficient connections of refrigerant lines. This fitting requires no brazing or flames, making it a safe choice for HVACR professionals. The ZoomLock PUSH system allows for faster installations and ensures a secure, leak-free connection, making it ideal for residential air conditioning, heat pumps, mini-splits, and refrigeration systems.
- No press tool or jaws needed
- Fast and easy installation
- Cleaner system installs
Product Highlights
The ZoomLock PUSH fittings are engineered to meet high-pressure HVAC requirements while maintaining safety and efficiency in installations.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
MPN: 777148
Technical Specifications
-
Connection Size: 7/8 inch
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
-
Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring: HNBR
-
UL Listed: SA7511 Approved use for field and factory installations
-
Complies with: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
