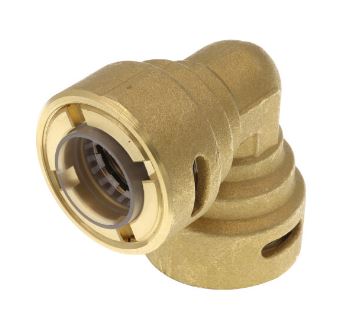

Parker Hannifin 777147 3/4 in ZoomLock PUSH Removable 90-Degree Elbow PZKPR-90E12

Product Description

The Parker Hannifin 777147 is a 3/4 inch ZoomLock PUSH removable 90-degree elbow designed for HVACR applications. This fitting allows for quick and efficient connections without the need for brazing or heat tools. It is essential for contractors working on Residential AC, heat pumps, mini-split systems, and refrigeration installations.

• No press tool or jaws required
• Fast and easy installation
• Provides secure, leak-free connections

Product Highlights

ZoomLock PUSH fittings significantly reduce installation time and improve safety by eliminating fire hazards associated with traditional methods.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 777147

Technical Specifications

• Connection Size: 3/4 inch
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
• Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring: HNBR
• UL Listed: SA7511 Approved for field and factory installations
• Compliance: ASHRAE-15, ANSI 15, ASME B31.5
