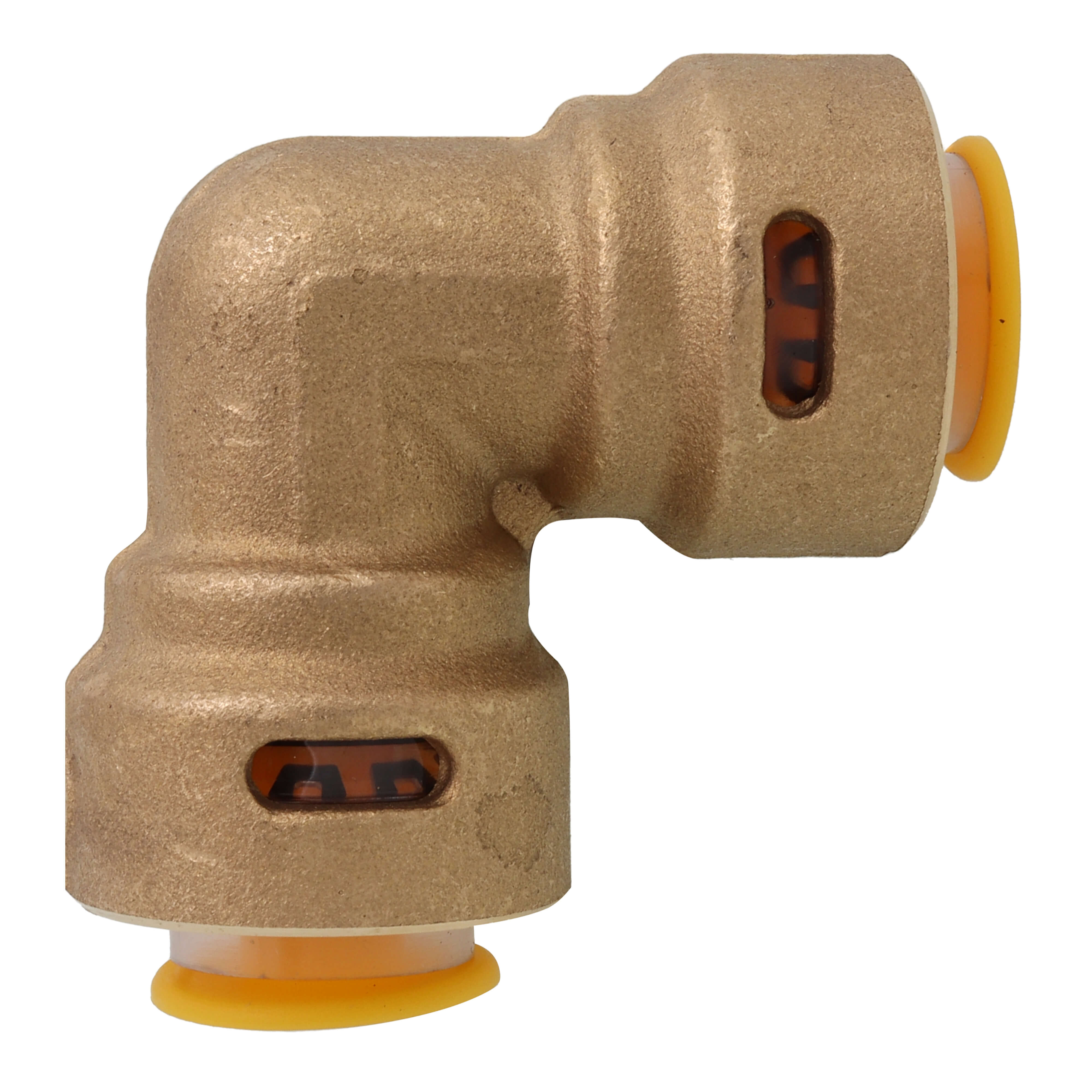

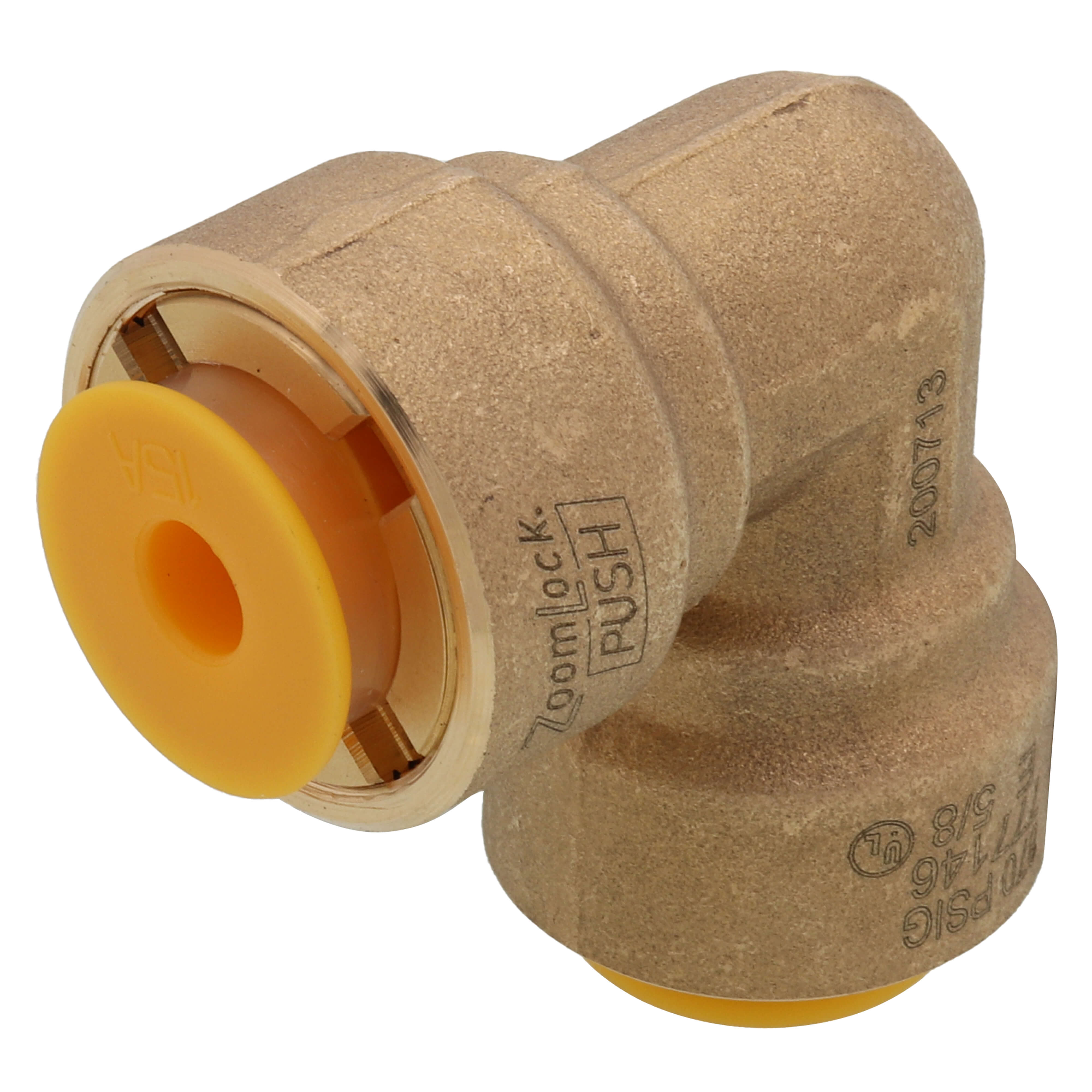

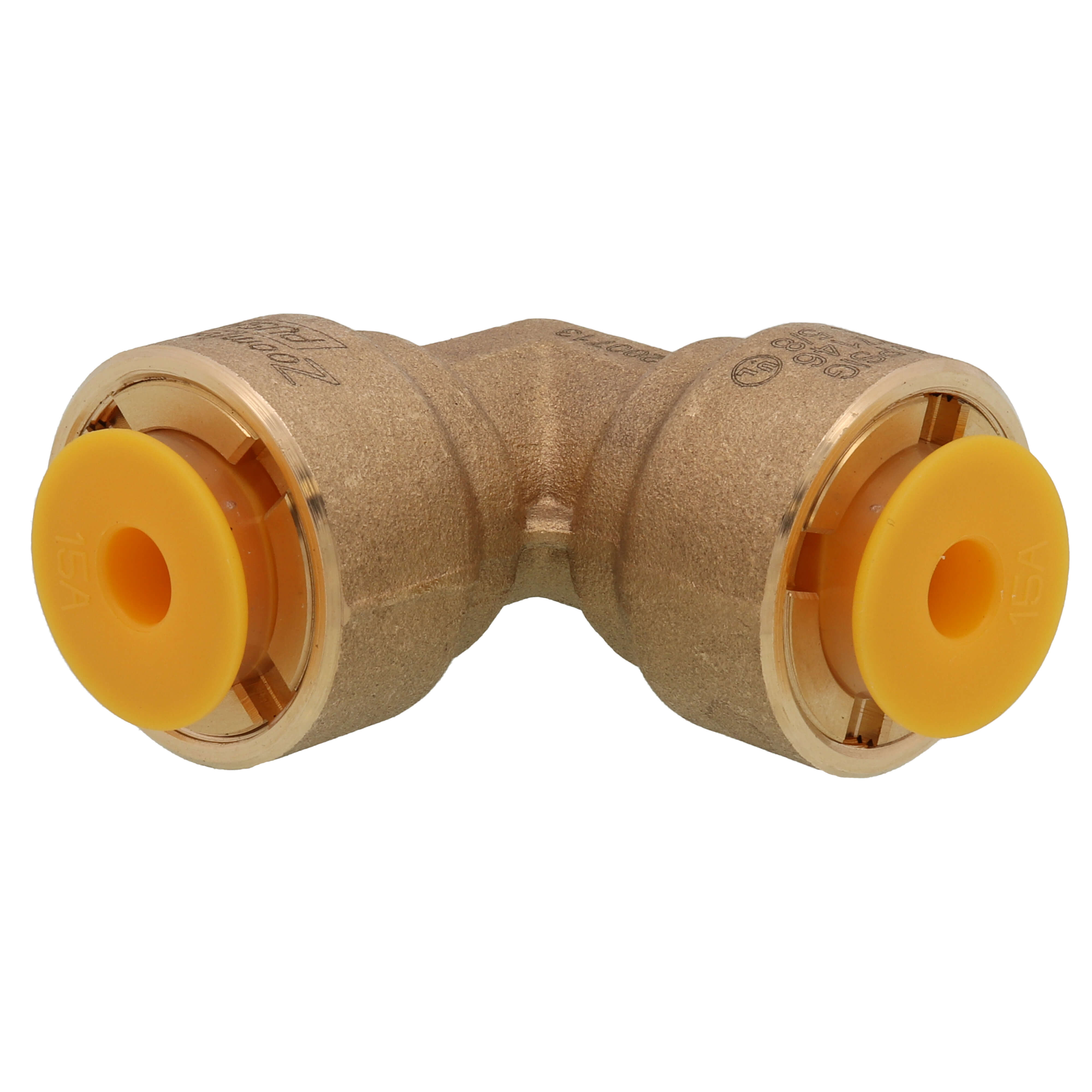

Parker Hannifin 777146 5/8 ZoomLock PUSH Removable 90-Degree Elbow PZKPR-90E10

Product Description

Parker Hannifin 777146 is a 5/8 ZoomLock PUSH removable 90-degree elbow designed for HVACR applications. This push-to-connect refrigerant fitting simplifies the installation process. It eliminates the need for brazing and flames, enhancing safety on the job site. Ideal for residential air conditioning, heat pumps, mini-splits, and refrigeration systems, this fitting allows for efficient connections in seconds.

• No press tool or jaws needed
• Fast and easy installation
• Cleaner system installs

Product Highlights

This elbow fitting ensures secure, leak-free connections and allows flexible access to job sites, making it a reliable choice for contractors.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 777146

Technical Specifications

• Connection Size: 5/8 inches
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
