Product Description

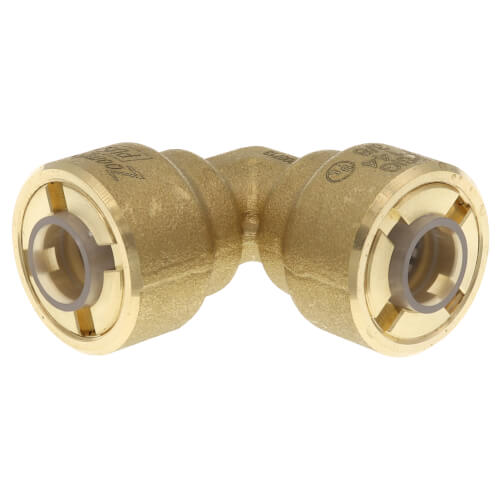

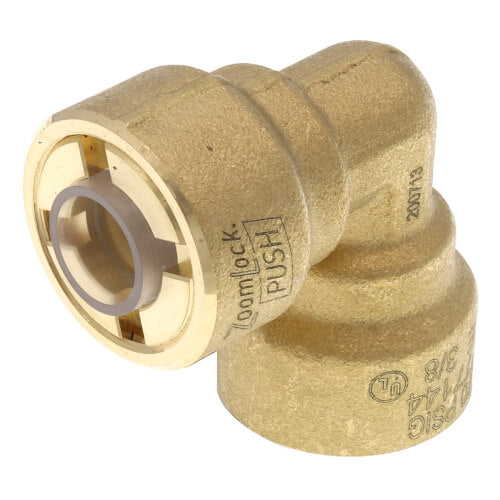

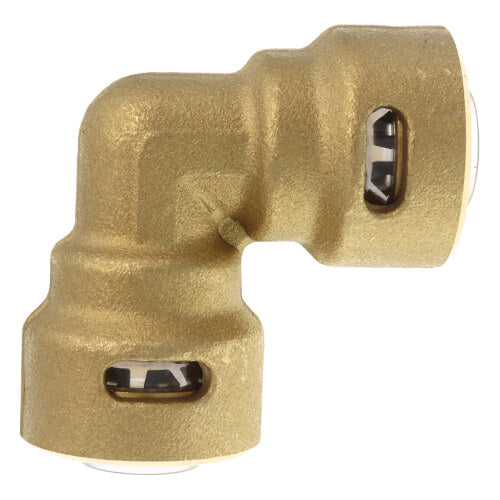

The Parker Hannifin 777144 is a 3/8-inch ZoomLock PUSH removable 90-degree elbow designed for efficient refrigerant line connections. HVAC professionals benefit from its quick installation, eliminating the need for traditional brazing methods. This fitting provides a secure, leak-free connection ideal for residential air conditioning and refrigeration tasks.
- No press tool or jaws needed for installation
- Safer with no fire hazards associated with brazing
- Equipped for high-pressure applications
Product Highlights
This elbow connector is essential for speeding up installations and reducing labor costs on HVAC systems.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
MPN: 777144
Technical Specifications
-
Connection Size: 3/8 inches
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Maximum Rated Pressure: 700 psi / 48 bar
-
Minimum Burst Pressure: 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
Vibration Resistance: Conforms to UL109
-
Fitting Body Material: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring Material: HNBR
-
UL Listed: SA7511 approved for field and factory installations
