Product Description

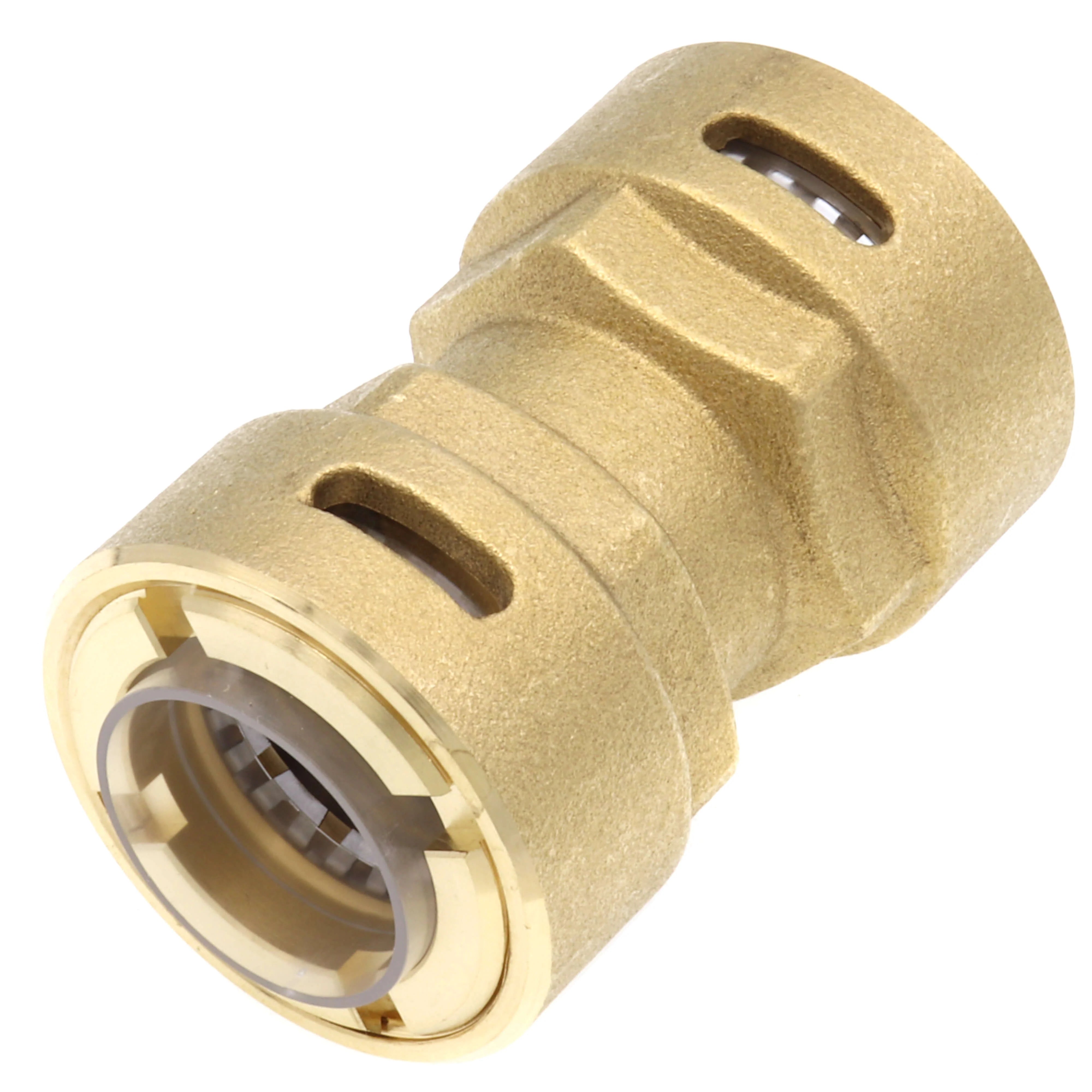

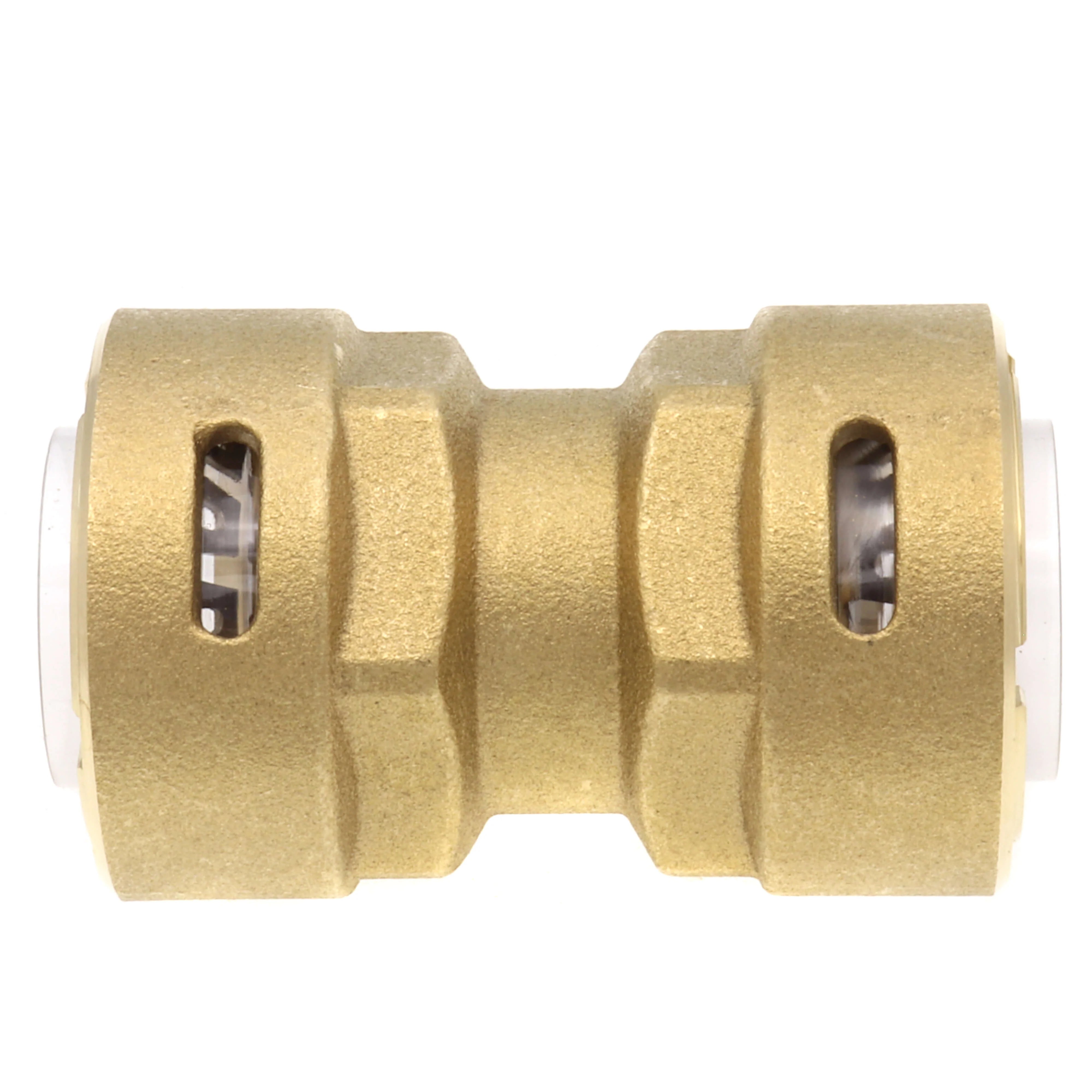

The Parker Hannifin 777138 is a 7/8 inch ZoomLock PUSH removable coupling designed for quick and efficient installation of refrigerant lines. This product is perfect for HVAC professionals looking to enhance their workflow. The push-to-connect design eliminates the need for brazing, reducing installation time significantly.
- No press tool or jaws needed
- Fast and easy install
- Secure, leak-free connections
Product Highlights
ZoomLock PUSH fittings provide a safe and reliable alternative to traditional HVACR installations, ideal for applications in Residential AC, Heat Pump, Mini-split, and Refrigeration systems.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
MPN: 777138
Technical Specifications
-
Connection Size: 7/8 inches
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year
-
Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring: HNBR
-
Listed Standards: UL Listed SA7511, ASHRAE-15, ANSI 15, ASME B31.5
