Product Description

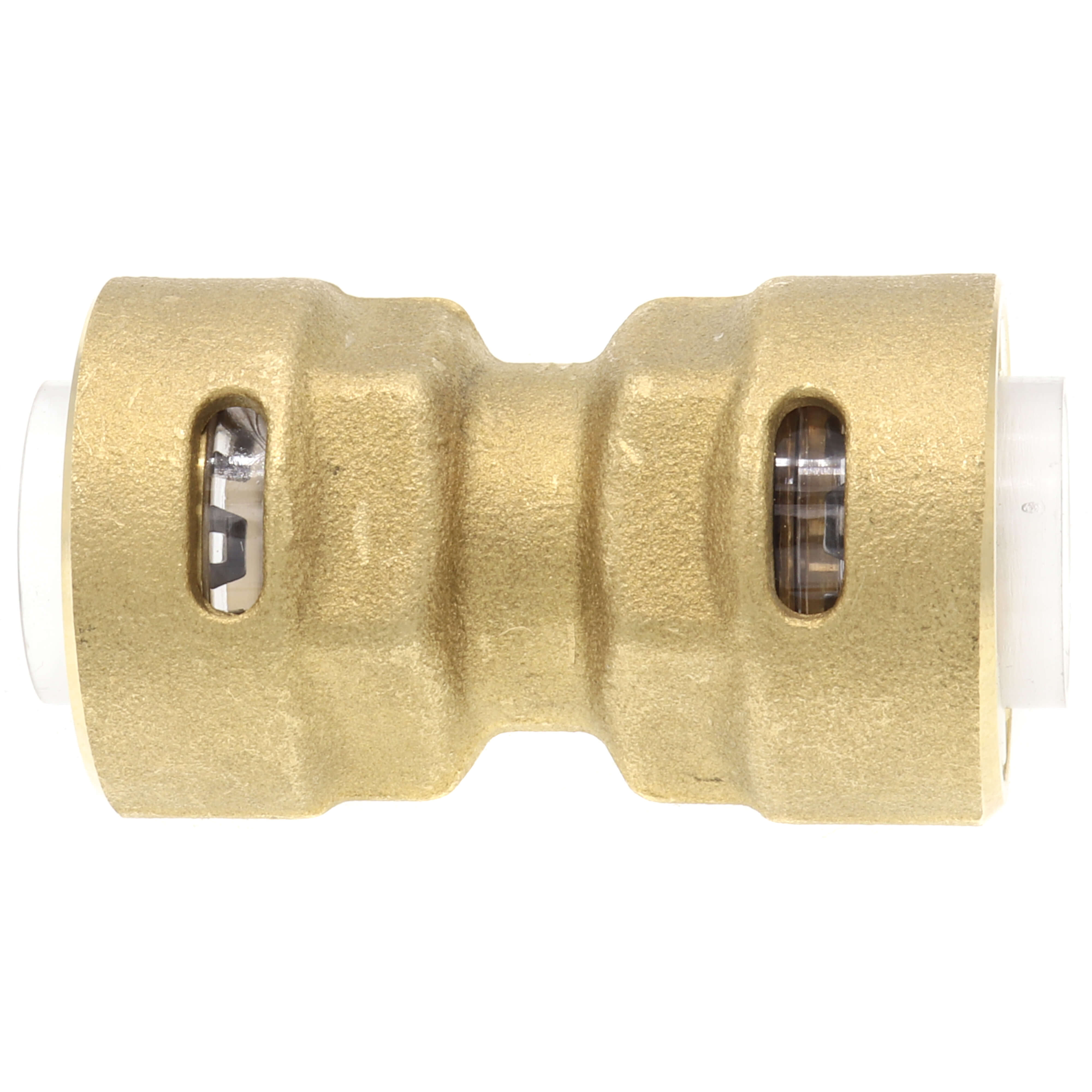

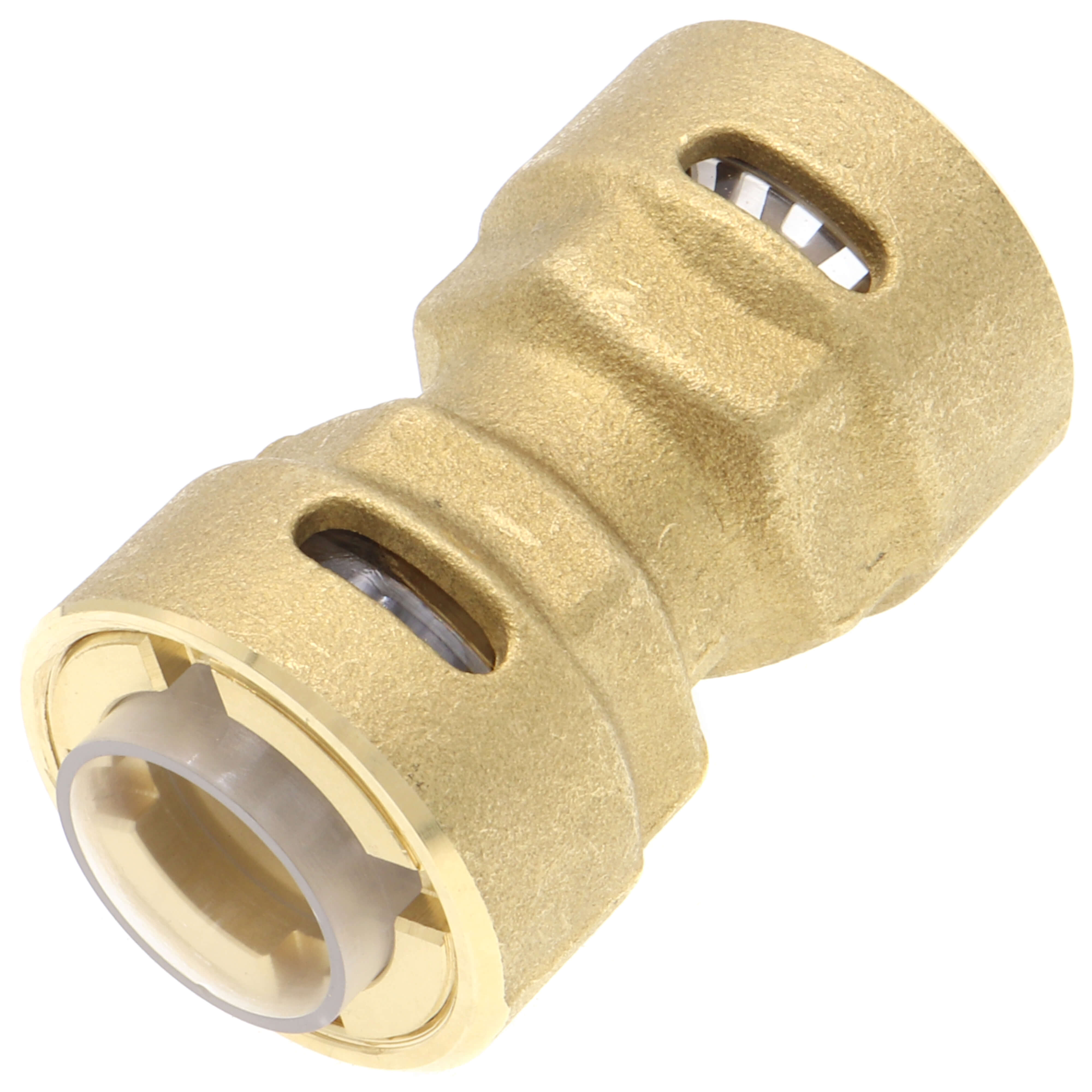

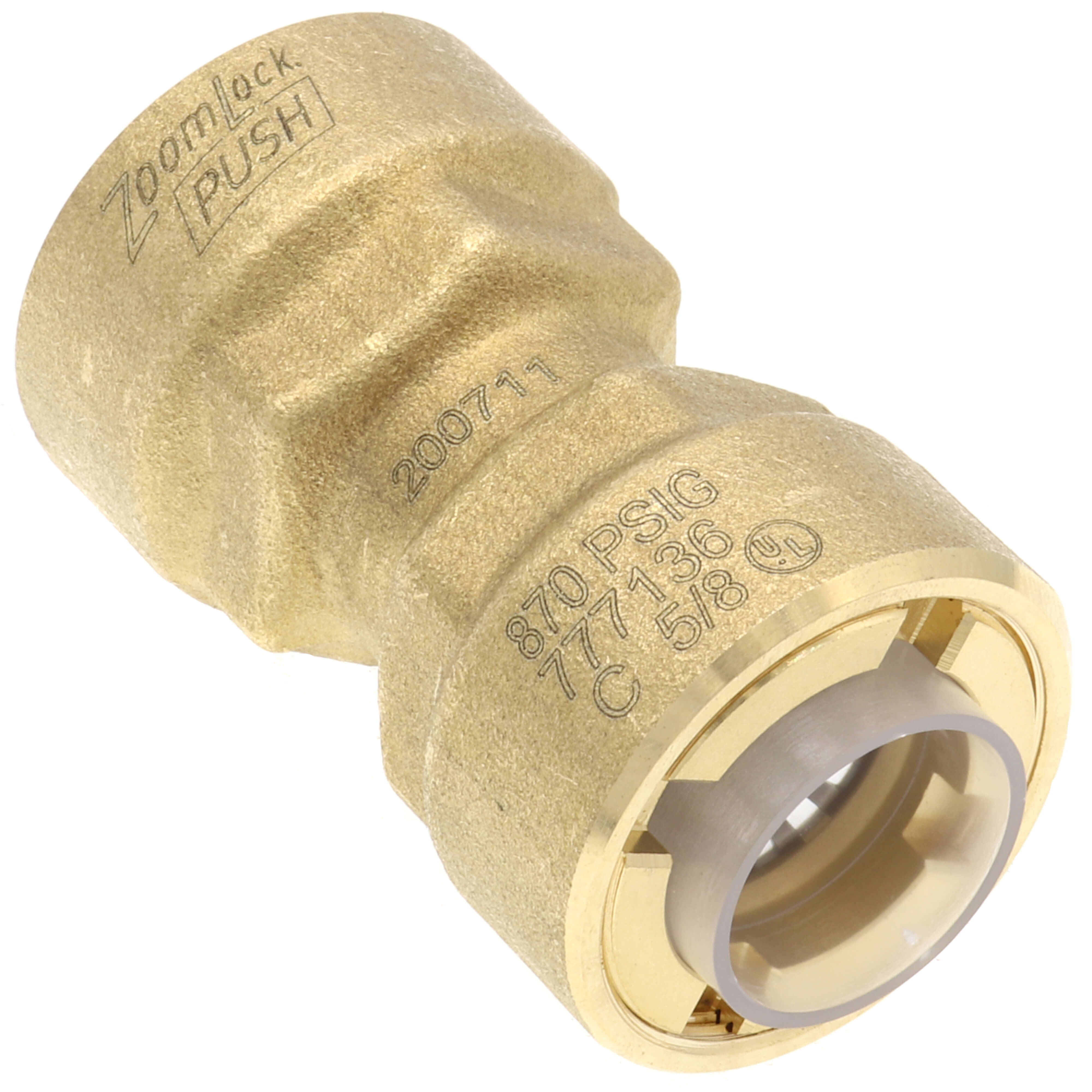

The Parker Hannifin 777136 is a 5/8-inch ZoomLock PUSH removable coupling designed for quick connection of refrigerant lines. This fitting method eliminates the need for brazing and flame, making installation faster and safer for HVACR professionals.
- No press tool or jaws needed
- Fast and easy install
- Cleaner system installs
Product Highlights
The ZoomLock PUSH fitting offers reliable and secure connections, essential for residential air conditioning and refrigeration applications.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
MPN: 777136
Technical Specifications
-
Connection Size: 5/8 inch
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure: 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
-
Vibration Resistance: Conforms to UL109
-
Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring: HNBR
-
UL Listed: SA7511 Approved for field and factory installations
-
Compliance: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
