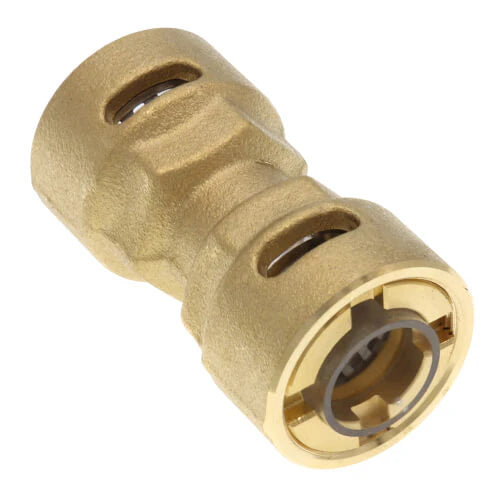

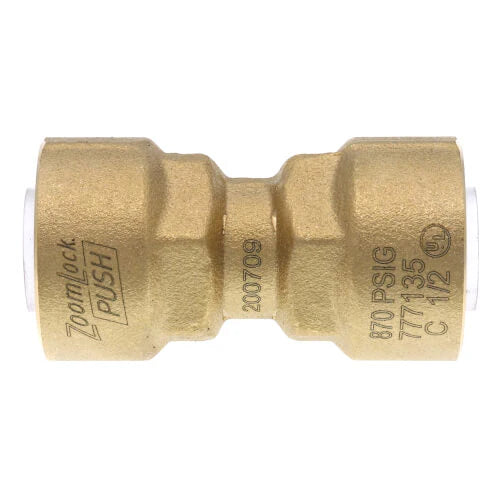

Parker Hannifin 777135 1/2 ZoomLock PUSH Removable Coupling PZKPR-C8

Product Description

Parker Hannifin 777135 is a 1/2 inch ZoomLock PUSH removable coupling. This product allows HVACR professionals to connect refrigerant lines quickly. It eliminates the need for brazing and fire safety concerns that come with traditional methods. The design enhances installation speed and safety, making it suitable for residential air conditioning, heat pumps, mini-splits, and refrigeration systems.

• No press tool required
• Fast installation
• Cleaner job sites

Product Highlights

ZoomLock PUSH fittings ensure secure, leak-free connections while improving installation efficiency. The system is designed for high pressure HVAC/R applications.

Product Information

Standard Information

• Brand: Parker Hannifin
• Connection Size: 1/2 inch

Technical Specifications

• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 microns
• External Leak Rate: <0.1 ounces of helium per year
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant grade copper
• O-Ring Material: HNBR
