Product Description

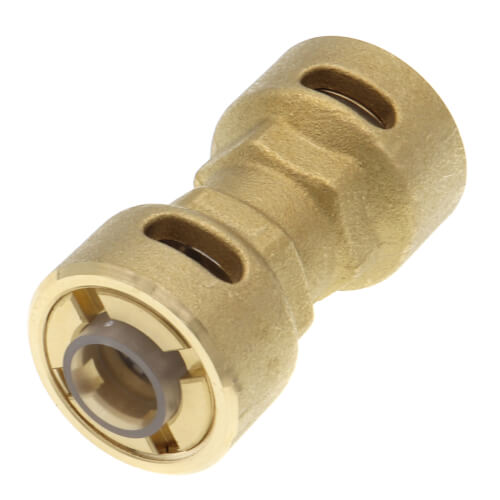

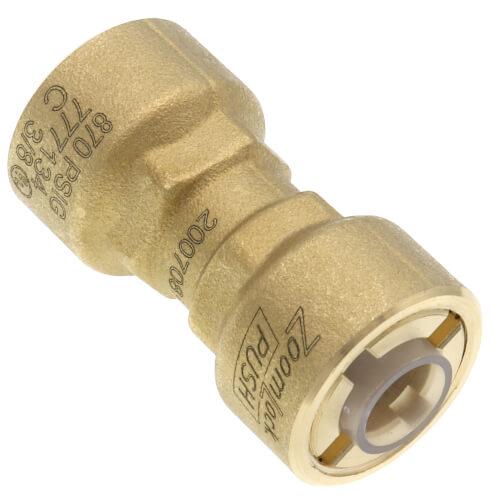

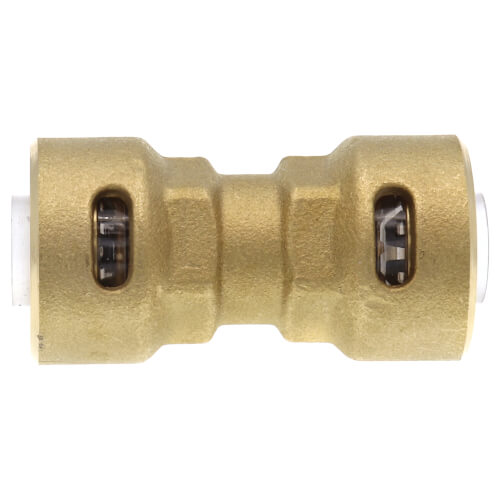

Parker Hannifin offers the 777134 3/8 inch ZoomLock PUSH Removable Coupling. This product is designed for quick connection of refrigerant lines. It eliminates the need for brazing, leading to easier installations and increased efficiency for HVACR professionals.
- No press tool or jaws are required
- Installation is quick and straightforward
- Ensures secure and leak-free connections
Product Highlights
The ZoomLock PUSH fittings provide a faster, safer, and cleaner installation method for HVAC systems compared to traditional methods. Ideal for applications in residential air conditioning and refrigeration.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
MPN: 777134
Technical Specifications
-
Connection Size: 3/8 inch
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F
-
Maximum Rated Pressure: 700 psi / 48 bar
-
Minimum Burst Pressure: 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year
-
Vibration Resistance: Conforms to UL109
-
Fitting Body Material: Refrigerant Grade Copper
-
O-Ring Material: HNBR
-
UL Listed: SA7511 Approved
