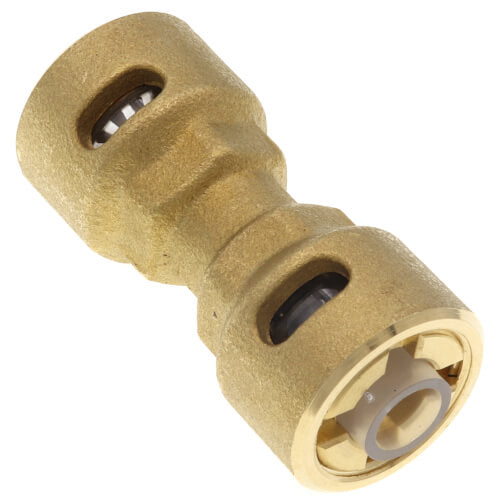

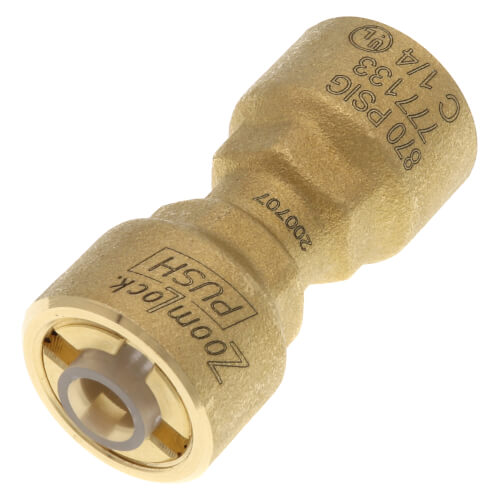

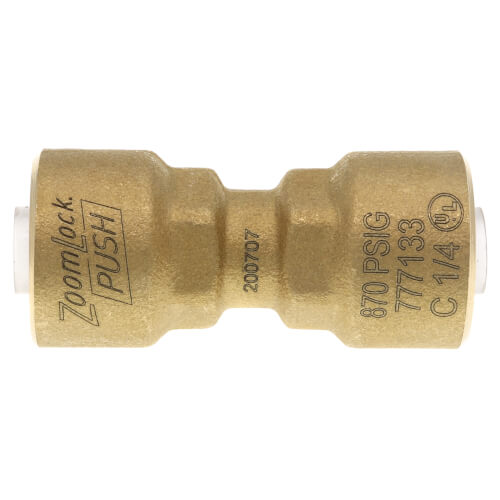

Parker Hannifin 777133 1/4 ZoomLock PUSH Removable Coupling PZKPR-C4

Product Description

The Parker Hannifin 777133 is a 1/4-inch ZoomLock PUSH removable coupling designed for HVAC and refrigeration applications. This fitting eliminates the need for traditional brazing methods, significantly reducing installation time and risk. The push-to-connect design ensures quick and secure connections, making it ideal for residential AC, heat pumps, mini-splits, and refrigeration installations.

• No tools required for connection
• Easy to install and maintain
• Cleaner installations with no open flames

Product Highlights

The ZoomLock PUSH fitting offers a safe and efficient solution for connecting refrigerant lines, enhancing overall job performance.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 777133

Technical Specifications

• Connection Size: 1/4 inches
• Applications: High Pressure HVAC/R
• Operating Temperature: 250°F / 121°C
• O-Ring Temperature Range: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure: 2100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: Less than 0.1 Ounces of Helium per Year
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant Grade Copper
• O-Ring Material: HNBR
• UL Listed: SA7511 for field and factory installations
• Compliance: ASHRAE-15, ANSI 15, ASME B31.5
