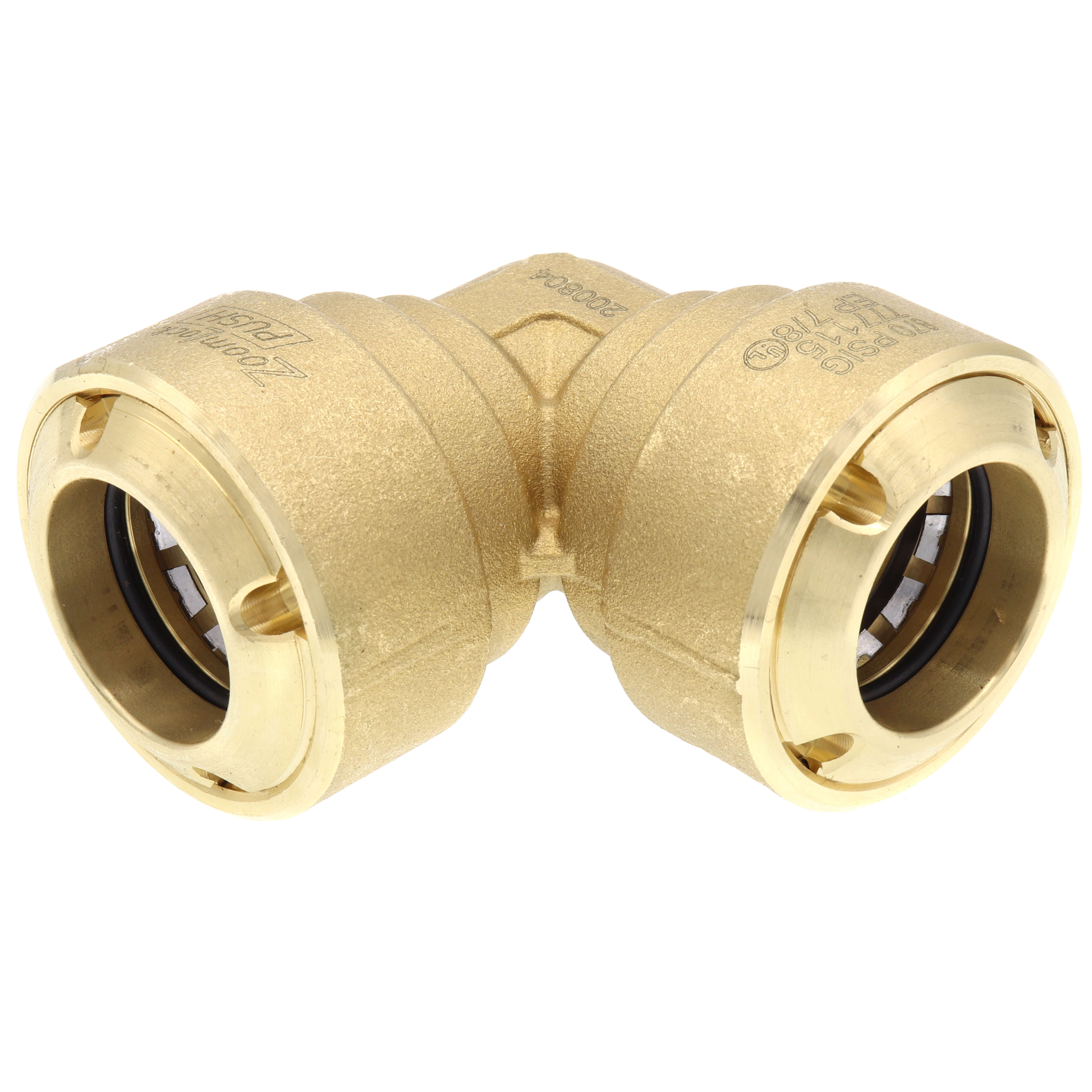

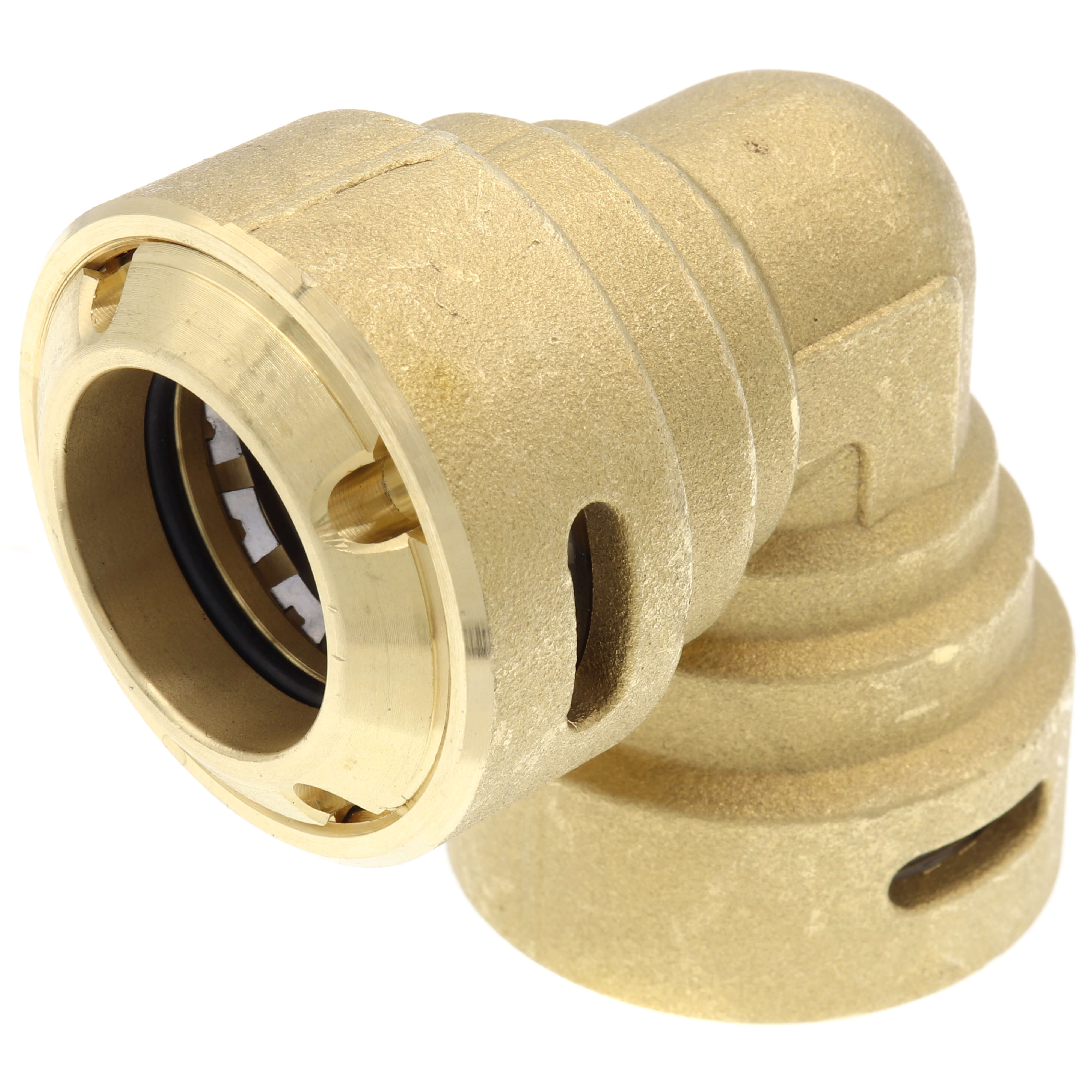

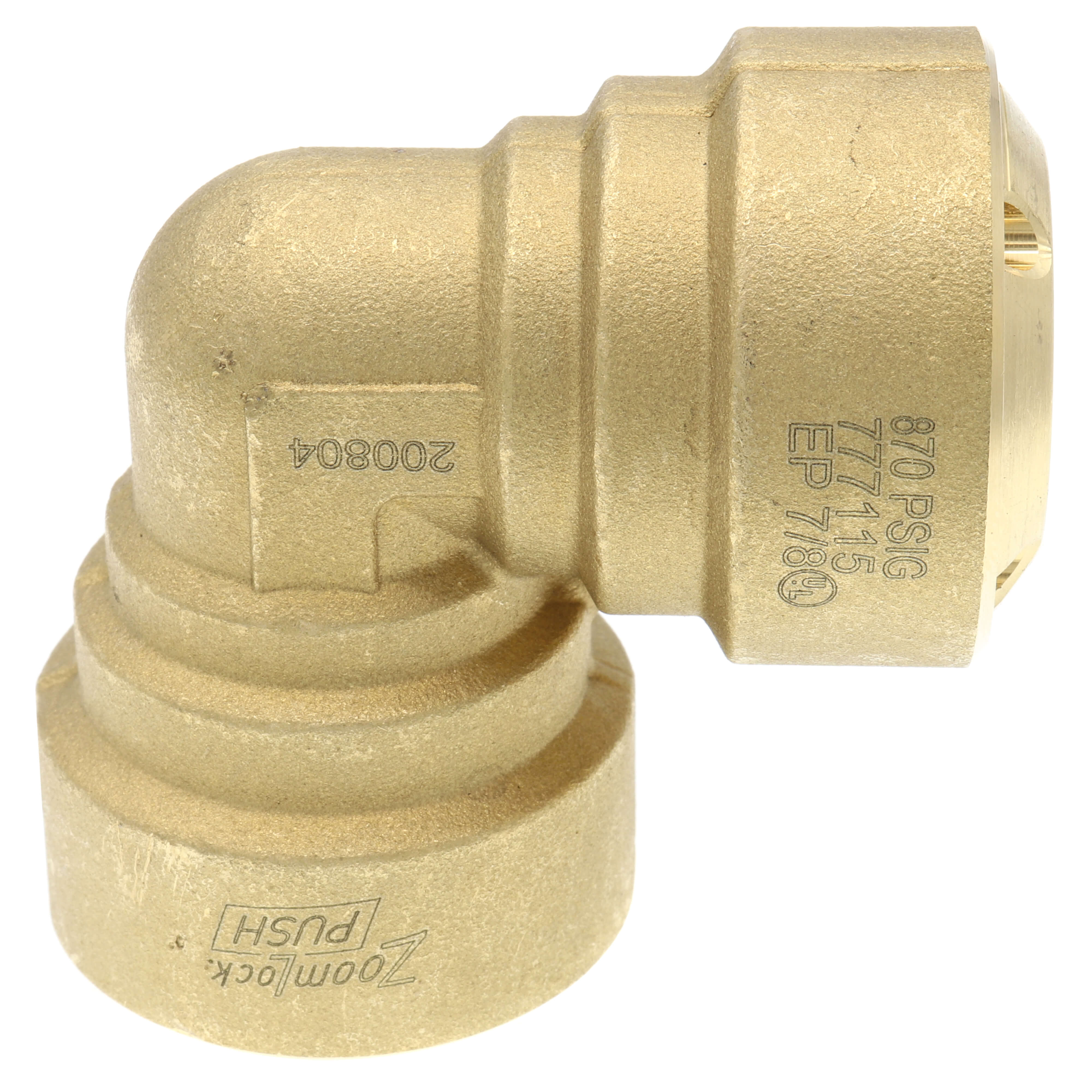

Parker Hannifin 777115 7/8 ZoomLock PUSH R410A Optimized 90-Degree Elbow PZKP-90E14-HNBR

Product Description

Parker Hannifin 777115 is a 7/8 ZoomLock PUSH R410A Optimized 90-Degree Elbow. This fitting allows fast and easy connections for HVAC refrigeration systems. ZoomLock PUSH fittings remove the need for brazing and flames, making it safe and efficient. Contractors can connect refrigerant lines in seconds, enhancing job site productivity. This fitting is perfect for residential air conditioning, heat pumps, mini-splits, and refrigeration installations.

• No press tool or jaws required
• Fast installation process
• Ensures secure, leak-free connections

Product Highlights

This elbow fitting is designed to provide a cleaner installation experience while ensuring safety on the job site.

Product Information

Standard Information

• Connection Size: 7/8
• Applications: High Pressure HVAC/R

Technical Specifications

• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year
• Vibration Resistance: Conforms to UL109
• Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring: HNBR
