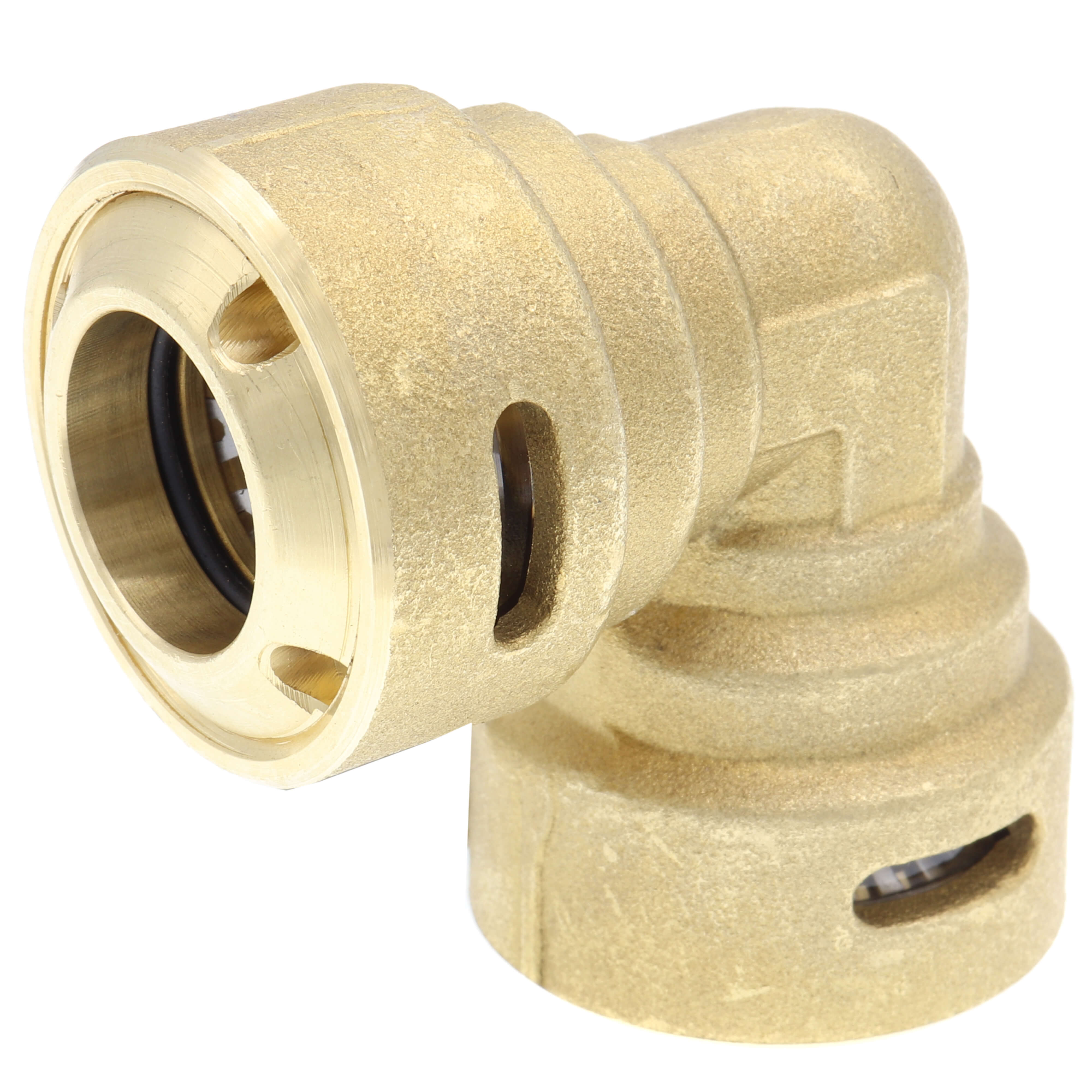

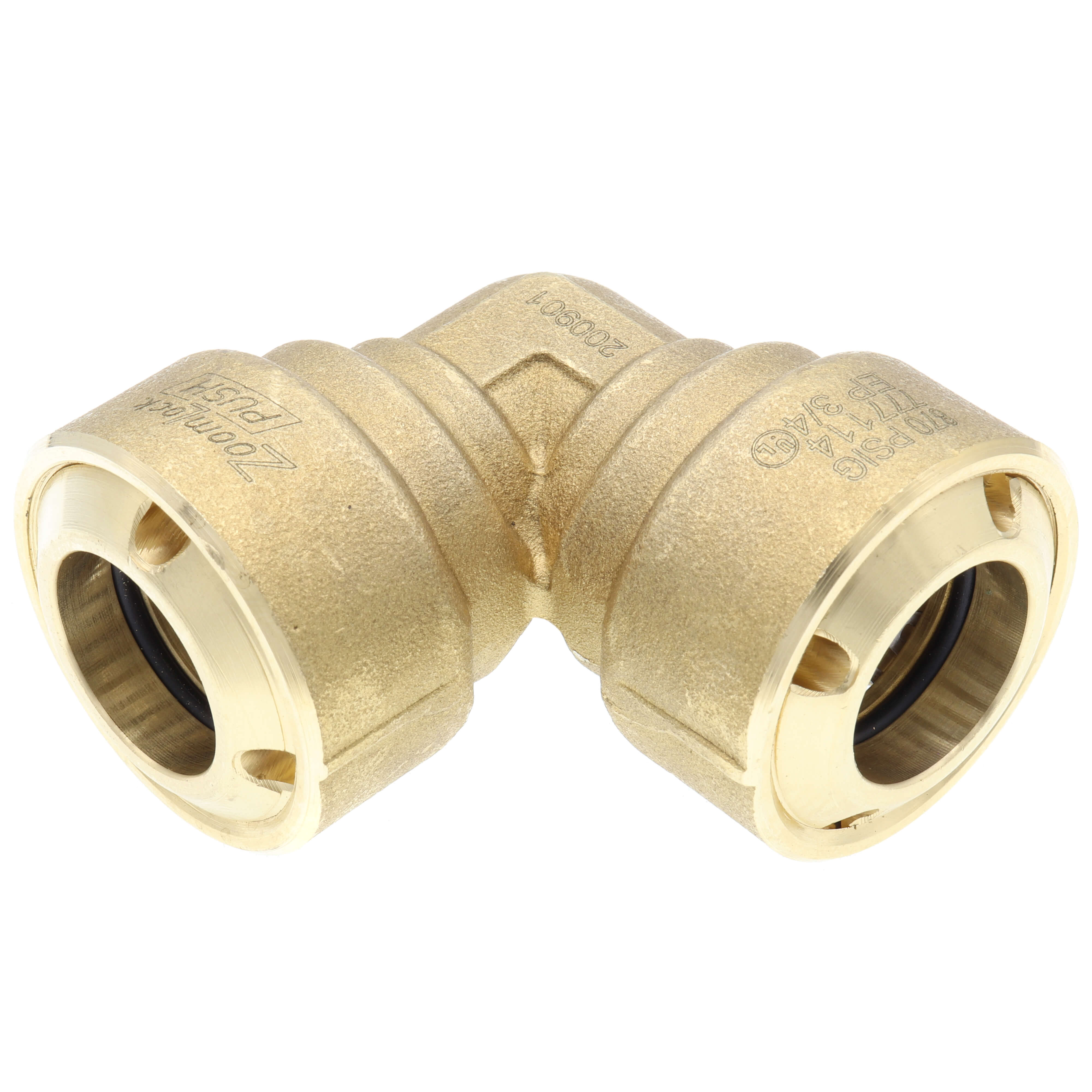

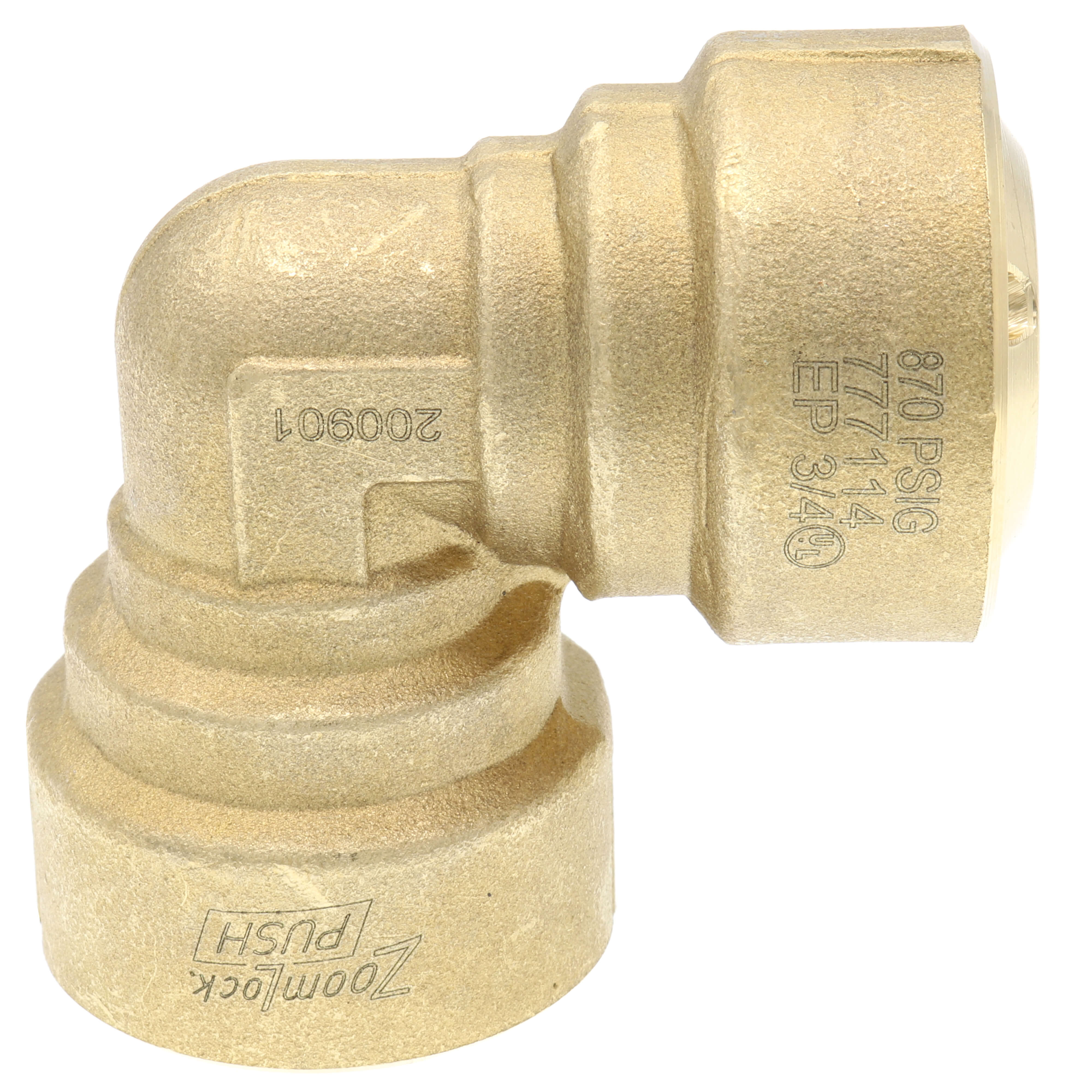

Parker Hannifin 777114 3/4 ZoomLock PUSH R410A Optimized 90-Degree Elbow PZKP-90E12-HNBR

Product Description

Parker Hannifin's 777114 is a 3/4 inch ZoomLock PUSH R410A optimized 90-degree elbow designed for HVACR applications. This fitting eliminates the need for brazing, which is essential for efficient refrigerant line connections. The ZoomLock PUSH system allows quick and secure installations without the use of flames or heavy machinery, making it suitable for residential air conditioning, heat pumps, mini-splits, and refrigeration installations.

• No press tool or jaws needed
• Fast and easy installation
• Cleaner system installs

Product Highlights

This product is built to streamline the installation process, enhancing safety by removing fire hazards associated with traditional fittings.

Product Information

Standard Information

• Brand: Parker Hannifin
• Connection Size: 3/4 inch

Technical Specifications

• R410A Optimized
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 microns
• External Leak Rate: <0.1 ounces of helium per year at operating pressure range
• Vibration Resistance: Conforms to UL109
• Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring: HNBR
• UL Listed: SA7511 approved for field and factory installations
• Compliance Standards: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
