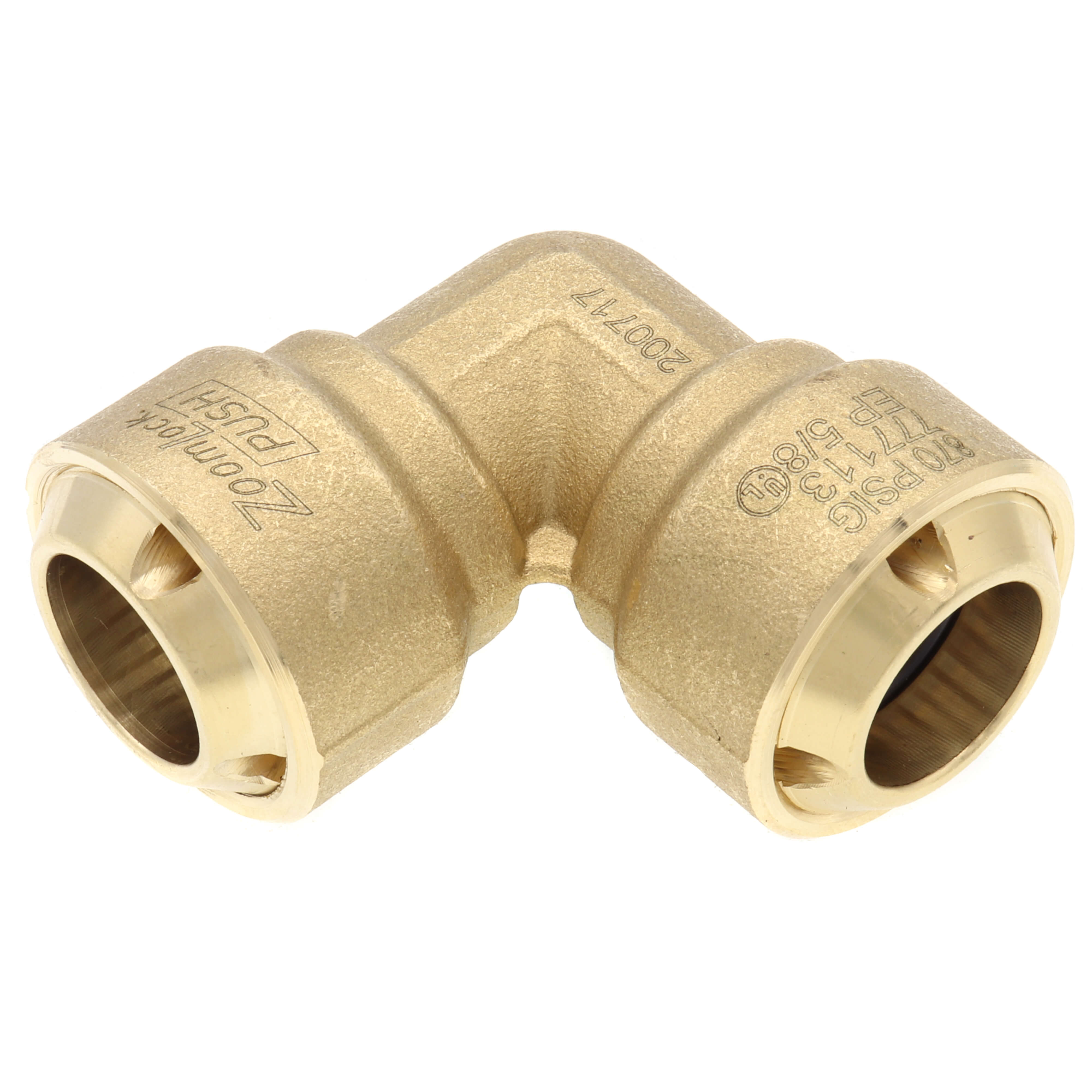

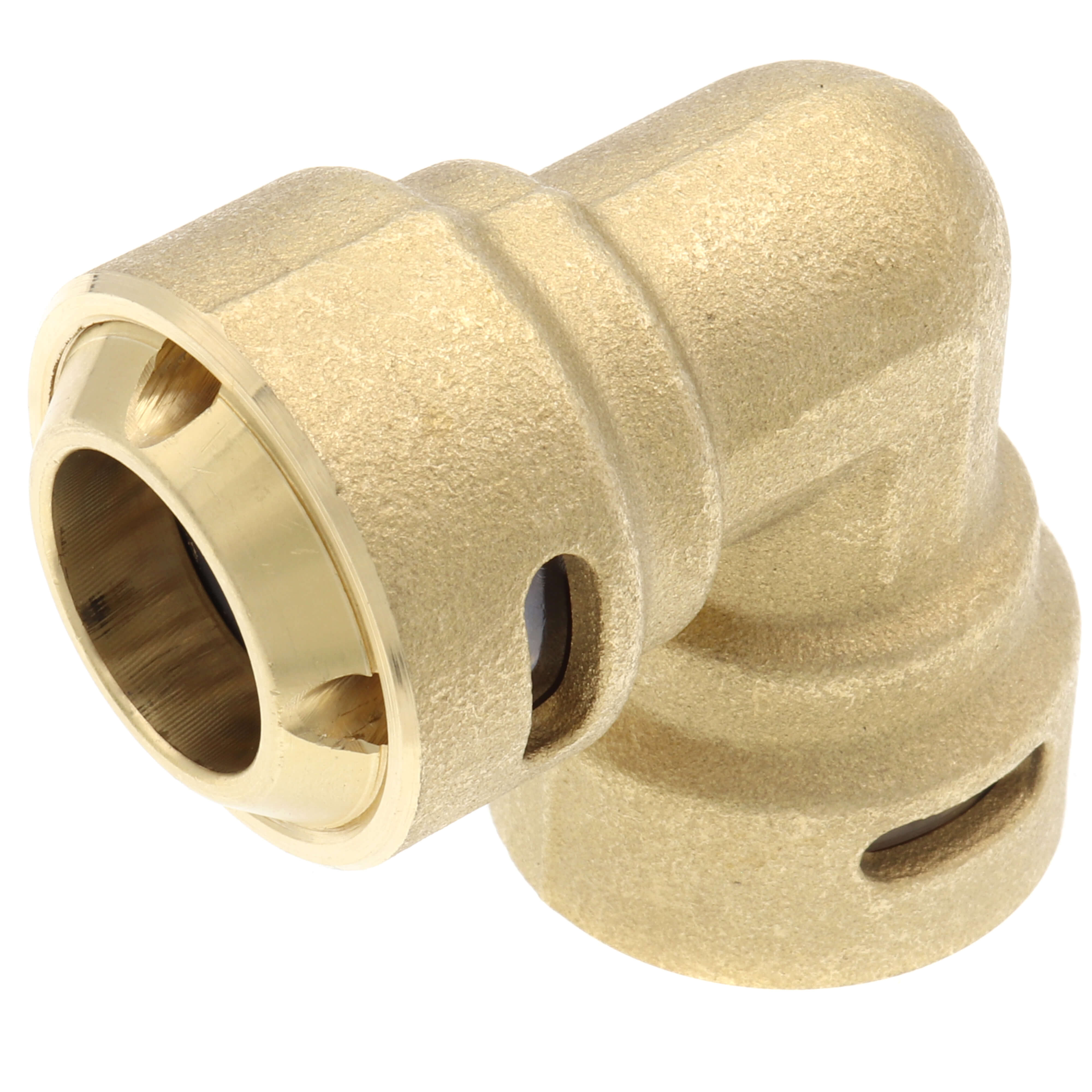

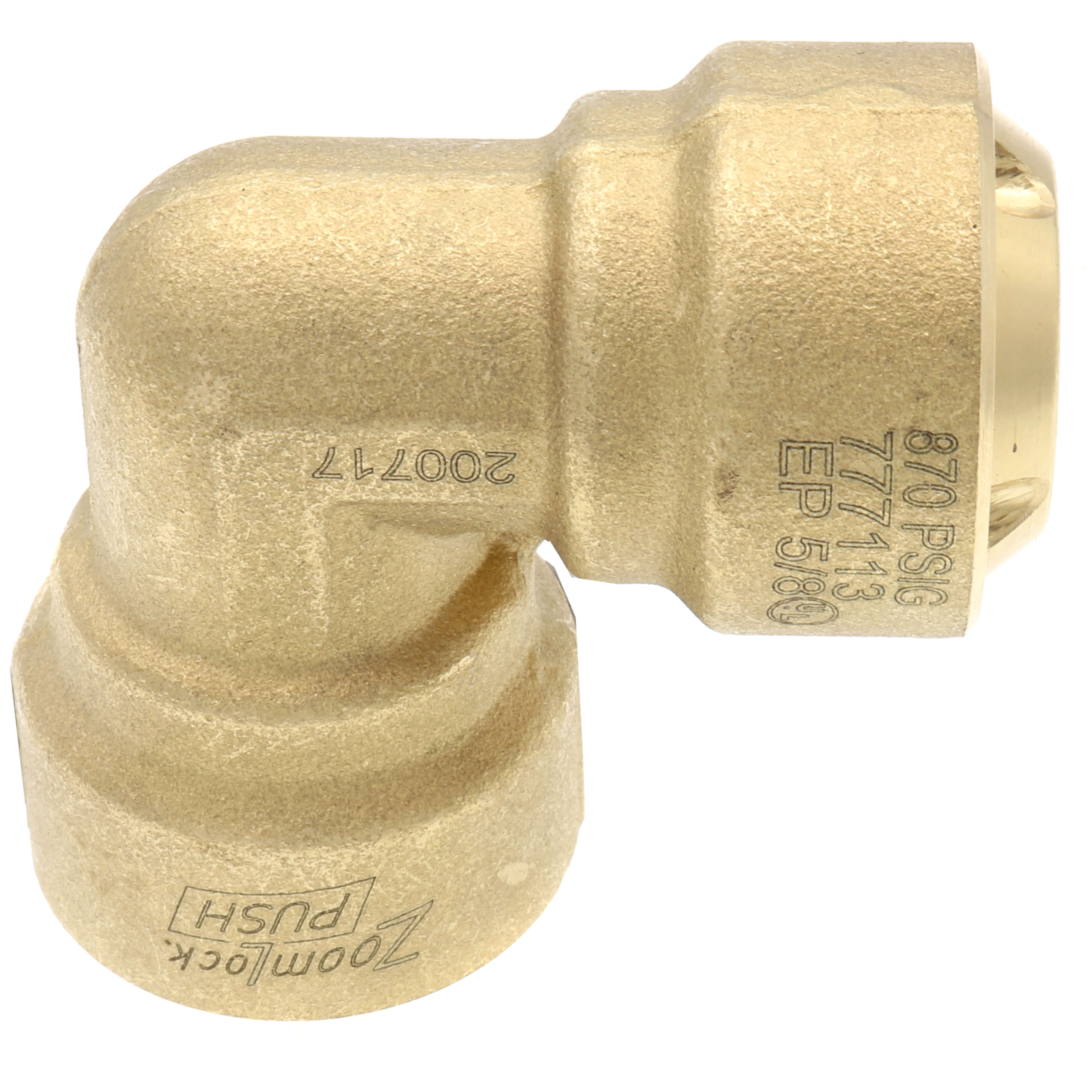

Parker Hannifin 777113 5/8 ZoomLock PUSH R410A Optimized 90-Degree Elbow PZKP-90E10-HNBR

Product Description

The Parker Hannifin 777113 is a 5/8 ZoomLock PUSH R410A optimized 90-degree elbow fitting. This product is designed for HVACR professionals looking to simplify the installation of refrigerant lines. The ZoomLock PUSH push-to-connect technology allows for quick connections without the need for brazing, flames, or traditional tools. With this fitting, contractors can enhance their efficiency and safety in various applications, including residential AC and refrigeration.

• No press tool or jaws needed
• Fast and easy installation
• Secure, leak-free connections

Product Highlights

This elbow fitting is perfect for high-pressure HVAC/R systems, allowing for continuous operation at temperatures up to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Connection Size: 5/8 inches
• Applications: High Pressure HVAC/R

Technical Specifications

• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring Material: HNBR
• UL Listed: SA7511
• Standards Compliance: ASHRAE-15, ANSI 15, ASME B31.5
