Product Description

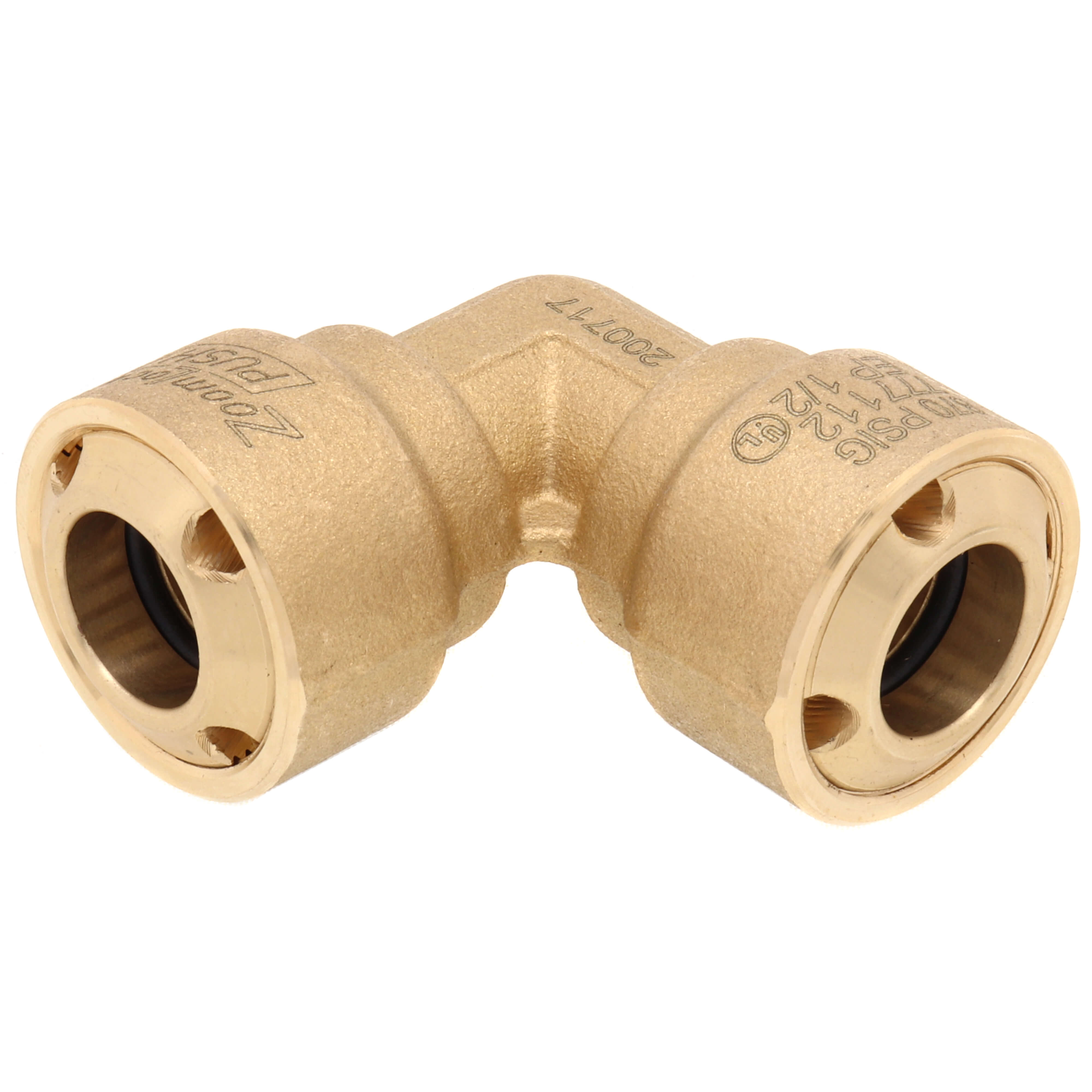

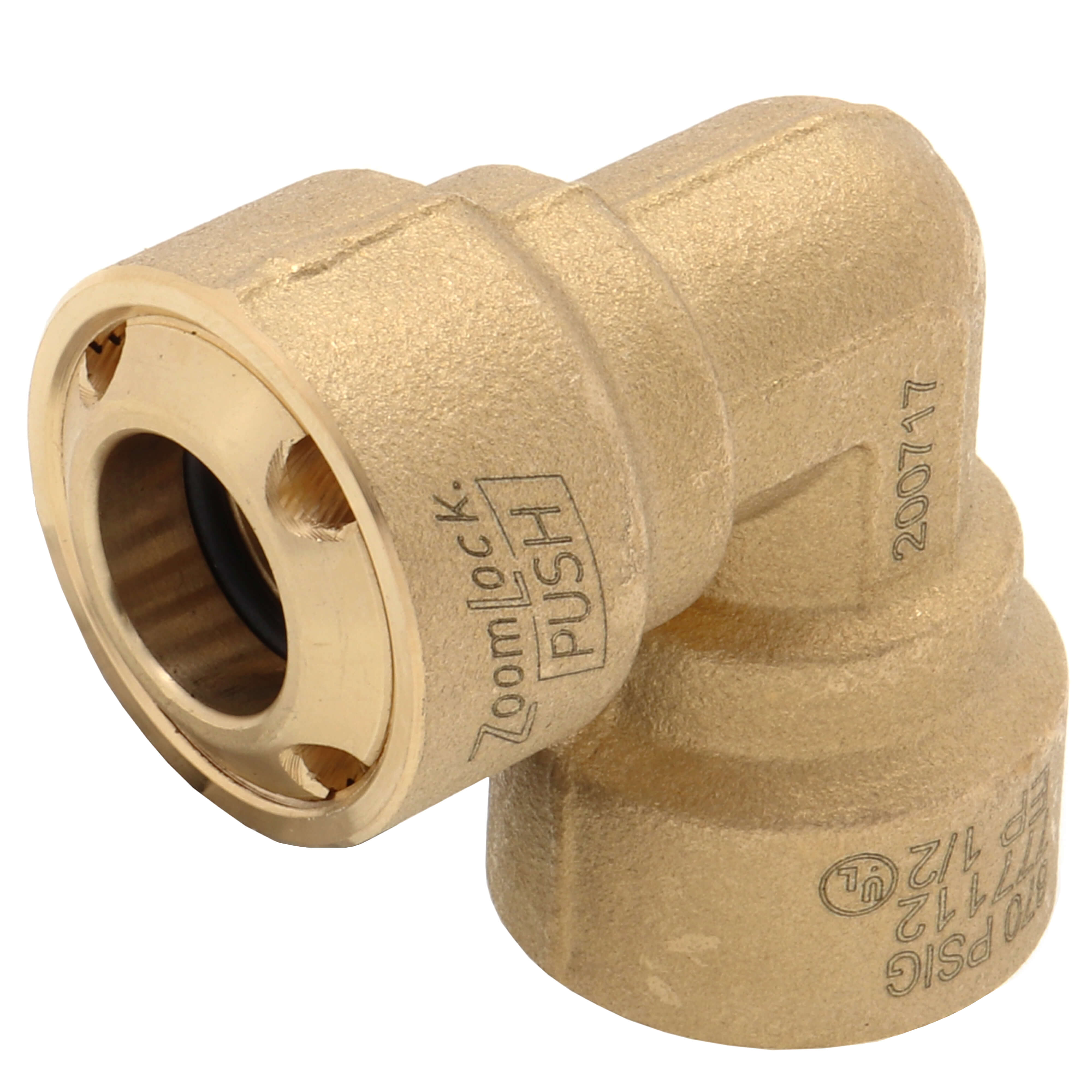

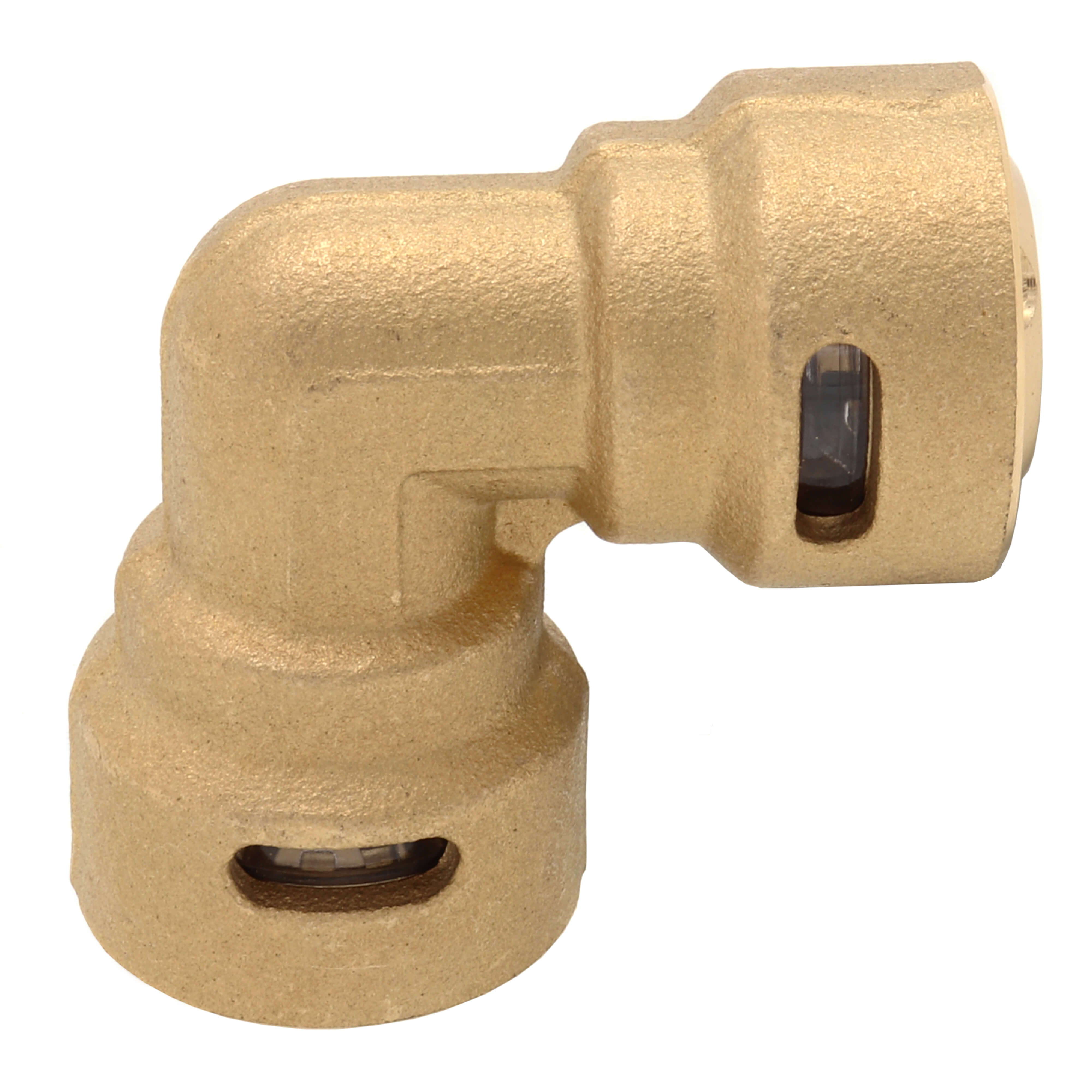

The Parker Hannifin 777112 is a 1/2 ZoomLock PUSH R410A Optimized 90-Degree Elbow fitting. This product allows HVACR professionals to connect refrigerant lines quickly and efficiently.
- No press tool or jaws required
- Secure, leak-free connections
- Safer conditions with no fire hazards
Product Highlights
This fitting is ideal for various HVAC applications including Residential AC and refrigeration systems. Its design eliminates the need for brazing and reduces installation time, thus enhancing safety and efficiency.
Product Information
Standard Information
-
Connection Size: 1/2 inches
-
Applications: High pressure HVAC/R
Technical Specifications
-
Continuous Operating Temperature: 250 degrees Fahrenheit / 121 degrees Celsius
-
O-Ring Temperature Rating: -40 degrees Fahrenheit to +300 degrees Fahrenheit
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year
-
Vibration Resistance: Conforms to UL109
-
Fitting Body Material: Refrigerant grade copper
-
O-Ring Material: HNBR
