Product Description

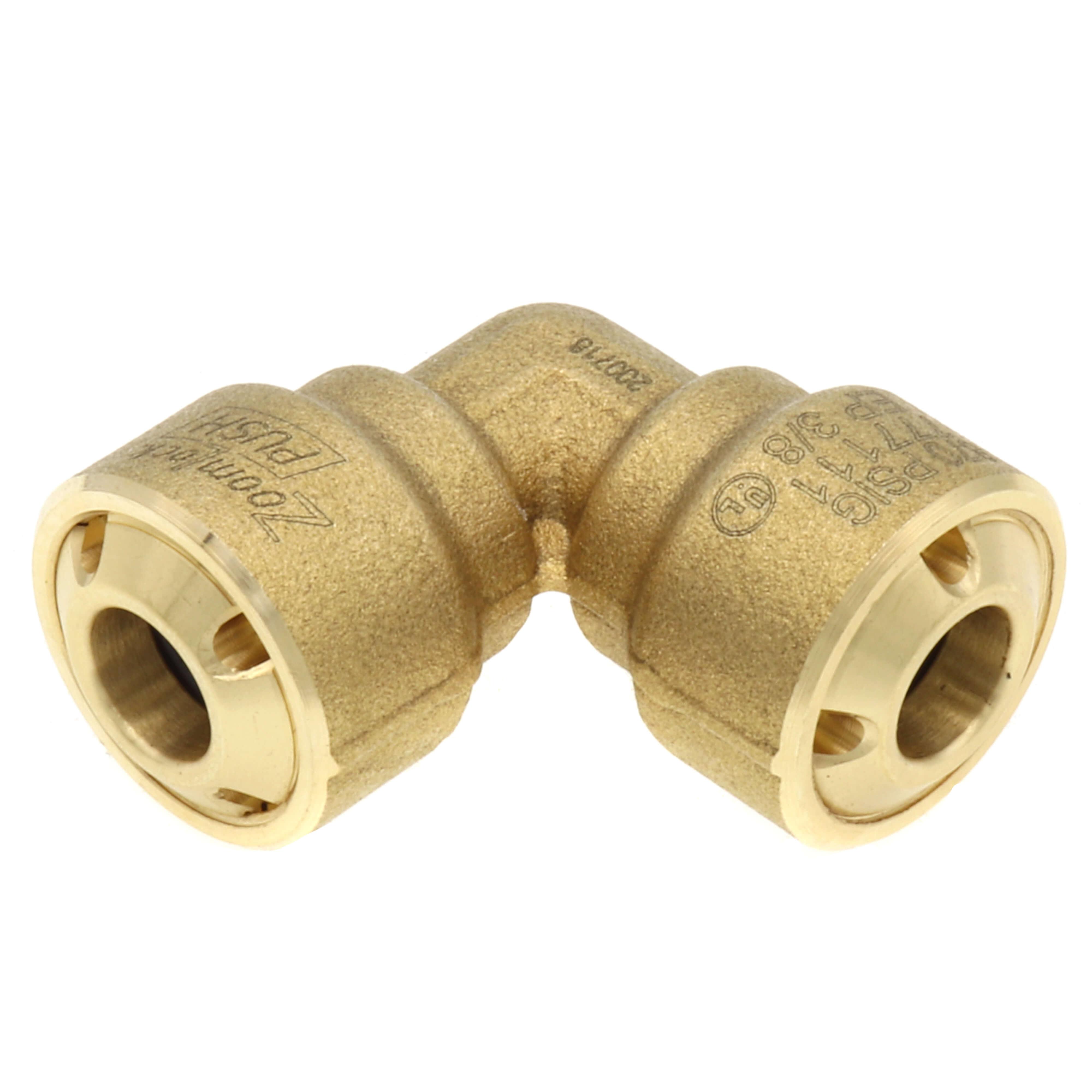

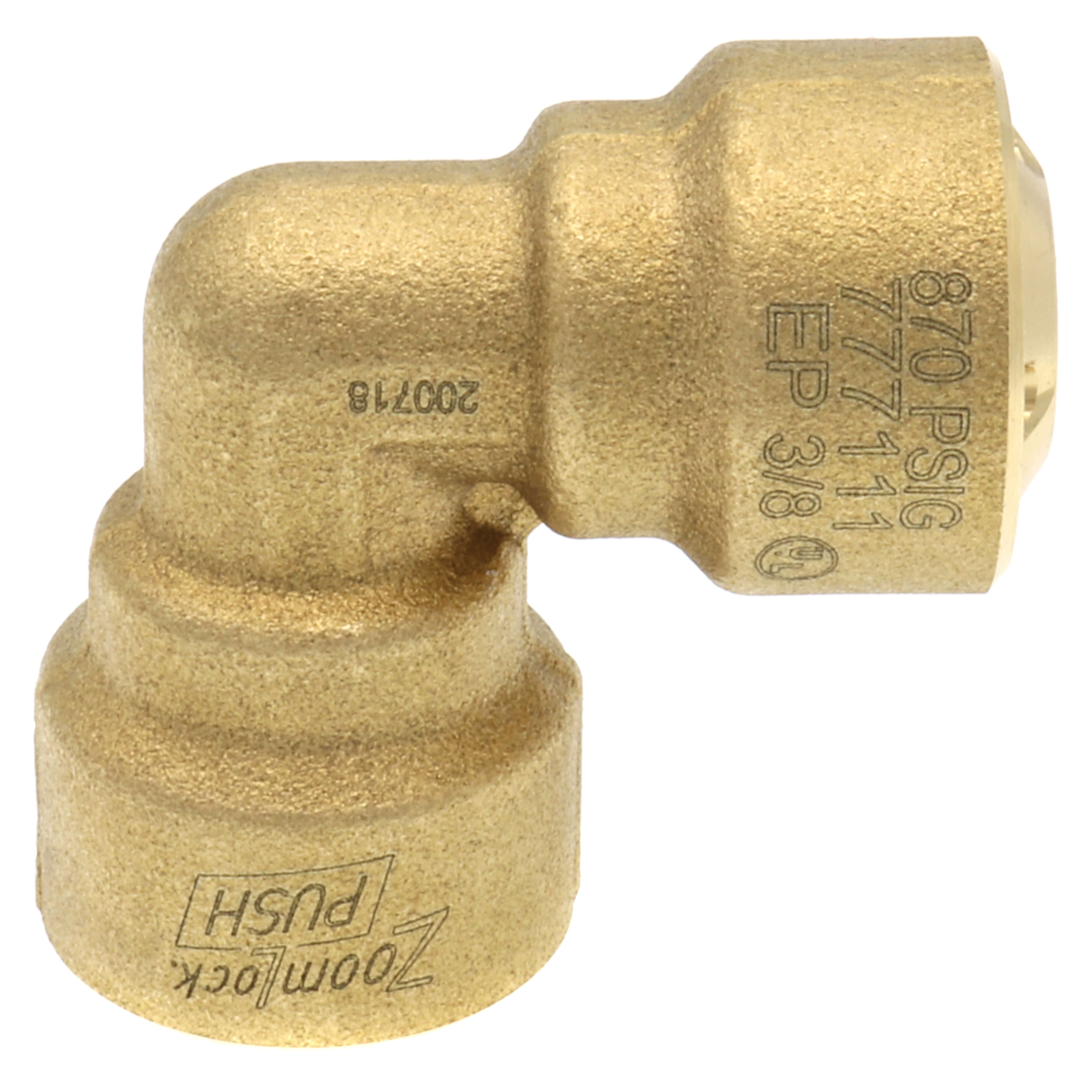

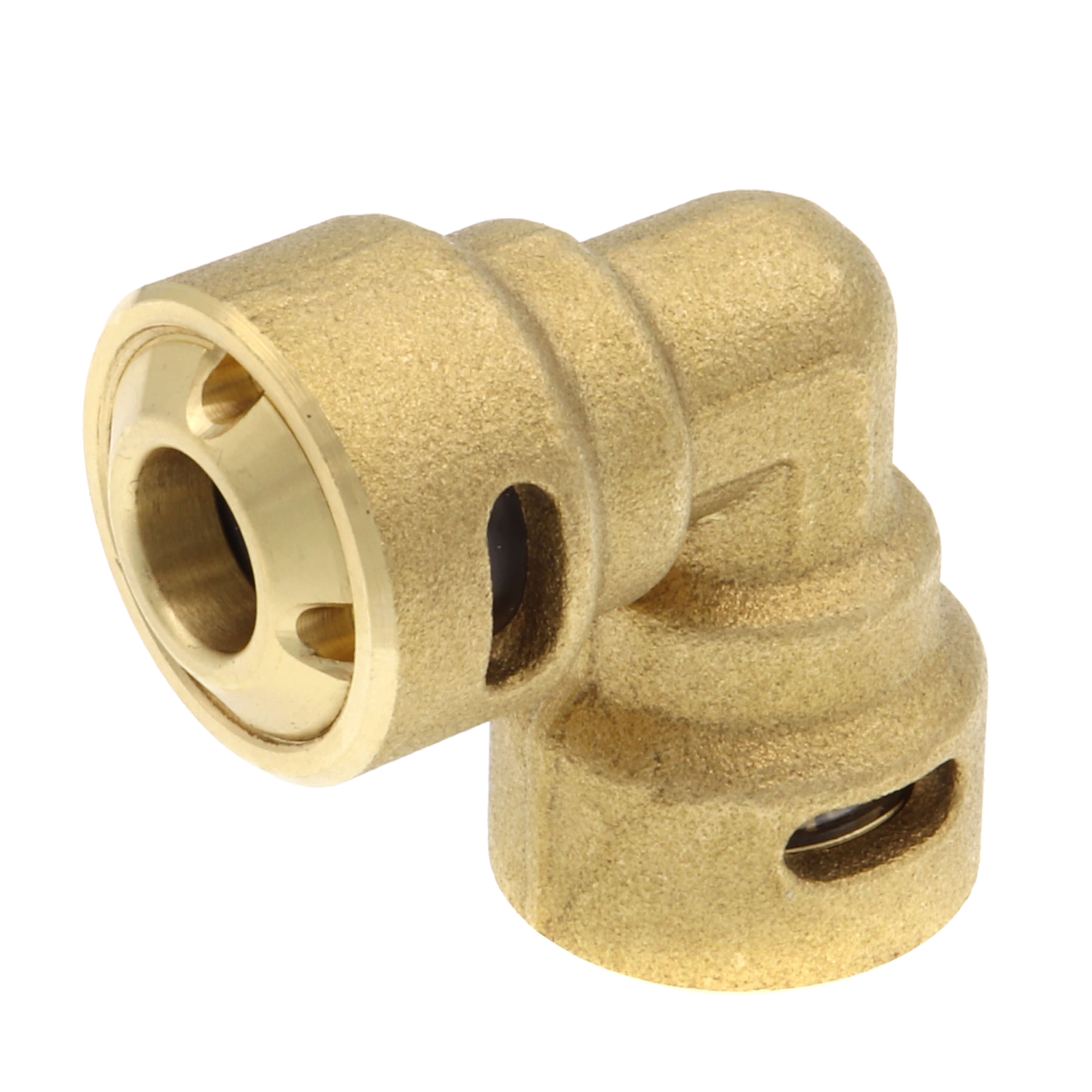

Parker Hannifin 777111 is a 3/8 ZoomLock PUSH R410A Optimized 90-Degree Elbow. This fitting offers a quick and efficient way to connect refrigerant lines without the need for traditional brazing methods. Designed for HVACR professionals, it enhances installation speed and safety in various applications including Residential AC and refrigeration systems.
- No press tool or jaws needed.
- Fast and easy install.
- Secure, leak-free connections.
Product Highlights
Utilizing ZoomLock PUSH technology, this fitting makes installation safer and simpler, avoiding the need for hot work permits and eliminating fire hazards.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
Connection Size: 3/8
Technical Specifications
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure: 2,100 psi / 145 bar
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Vibration Resistance: Conforms to UL109
-
Material: Refrigerant Grade Copper
-
O-Ring Material: HNBR
