Product Description

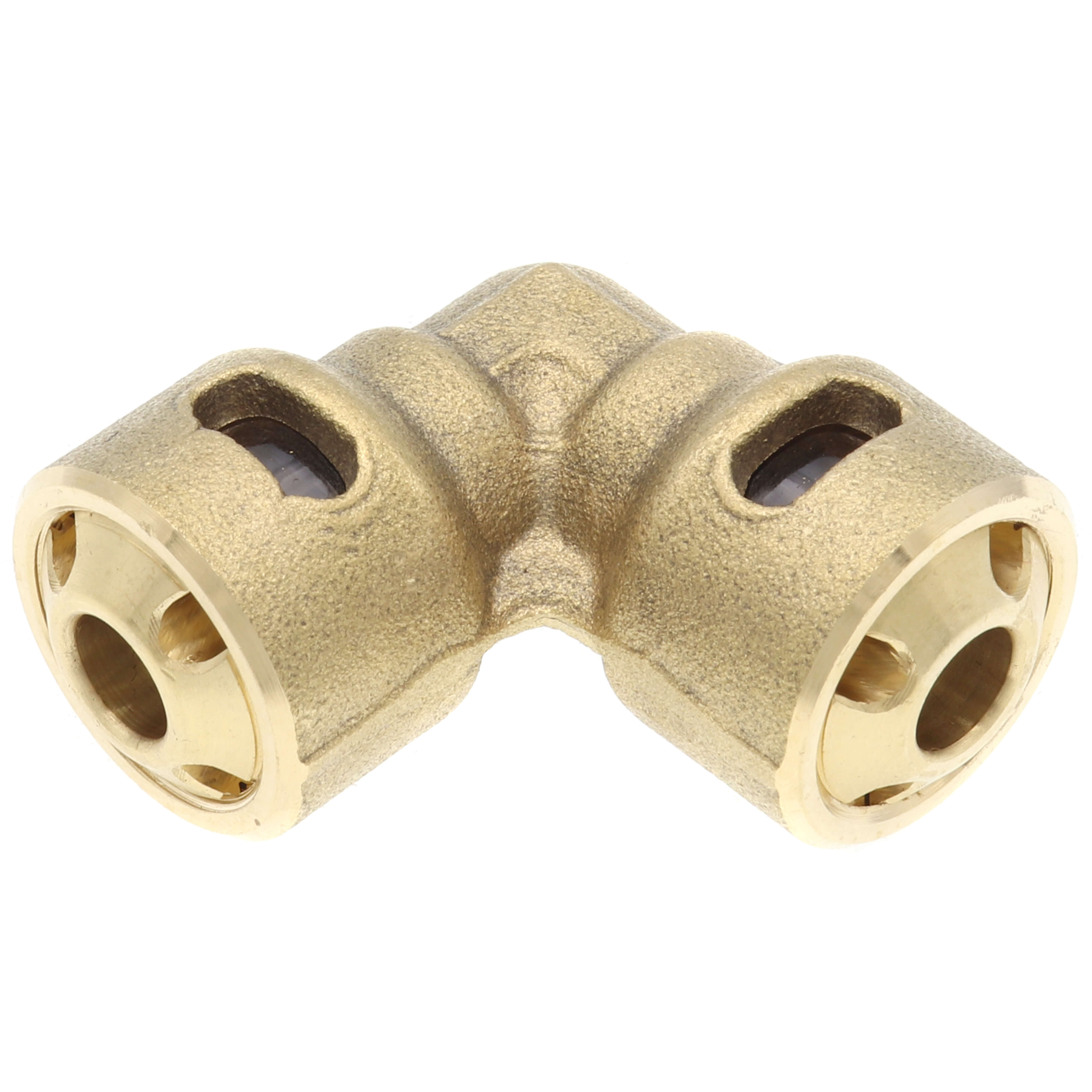

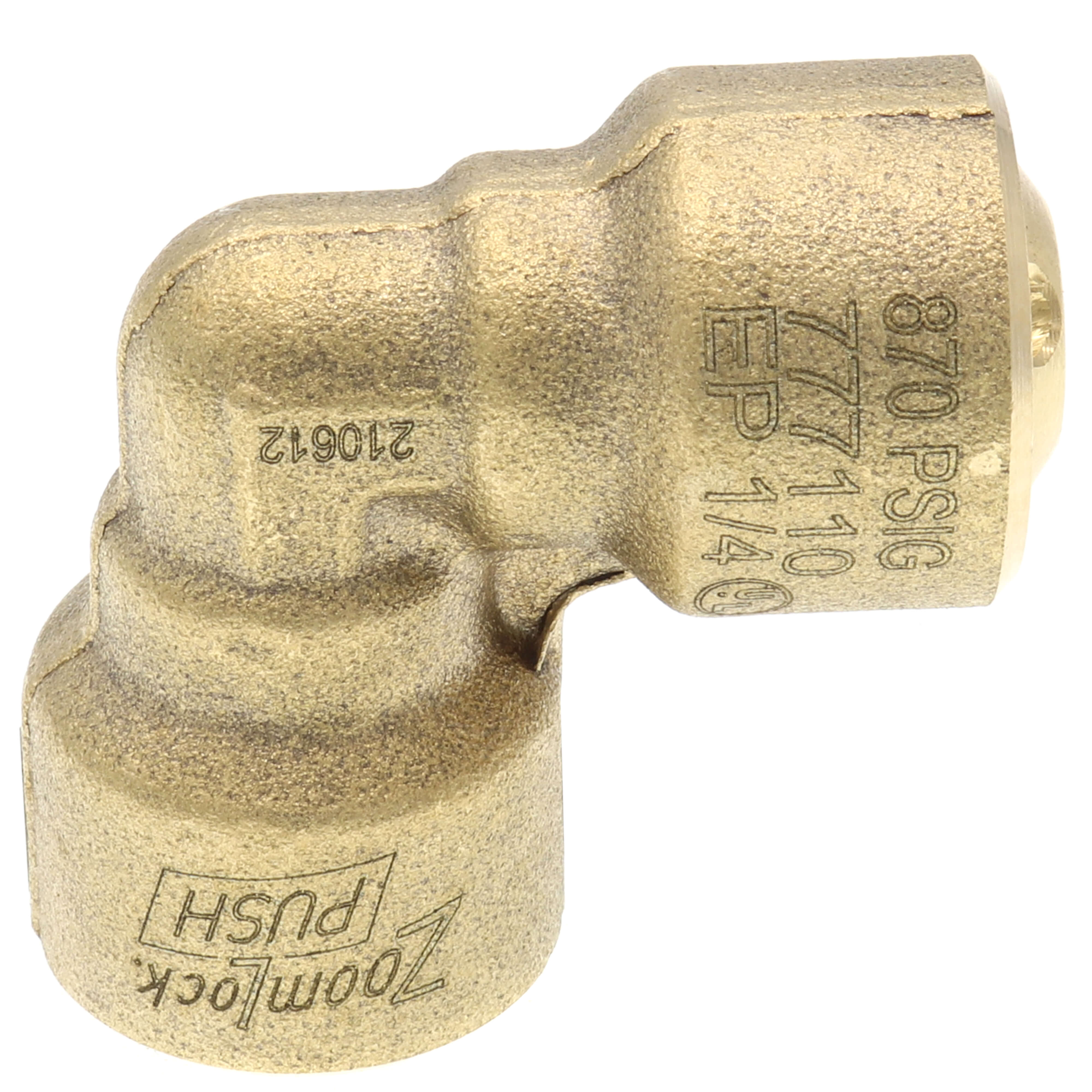

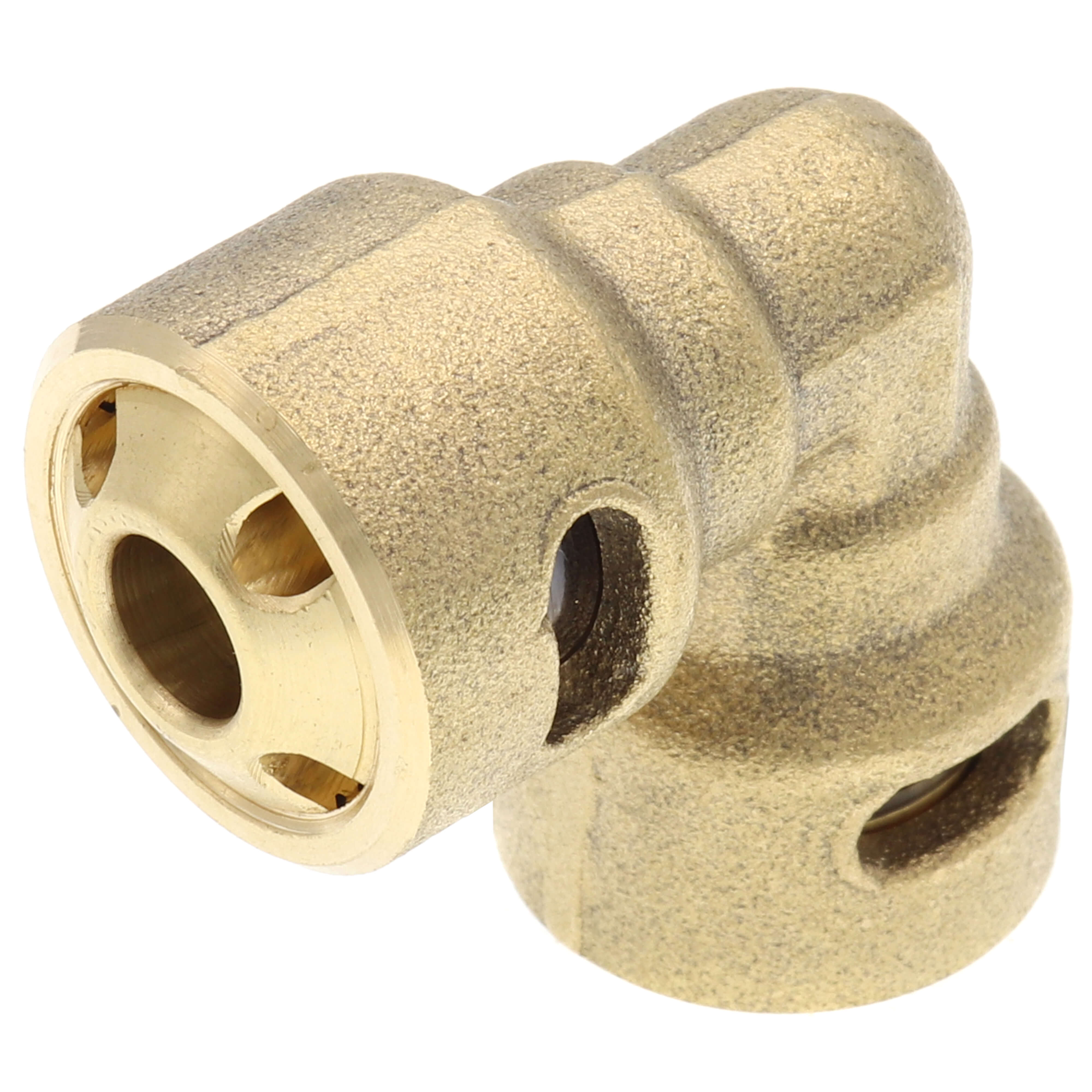

The Parker Hannifin 777110 is a 1/4 ZoomLock PUSH R410A optimized 90-degree elbow designed for quick and reliable installation in HVACR applications. This product eliminates the need for brazing and reduces installation time significantly. It is ideal for connecting refrigerant lines in systems like residential AC, heat pumps, mini-splits, and refrigeration units.
- No press tool or jaws needed.
- Fast and easy install.
- Secure, leak-free connections.
Product Highlights
A safer alternative to traditional fittings, the ZoomLock PUSH system allows for easy access to job sites without the need for hot work permits and nitrogen purging.
Product Information
Standard Information
Technical Specifications
-
Connection Size: 1/4
- R410A Optimized
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
-
Vibration Resistance: Conforms to UL109
-
Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring: HNBR
-
UL Listed SA7511: Approved for field and factory installations
-
Compliant Standards: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
