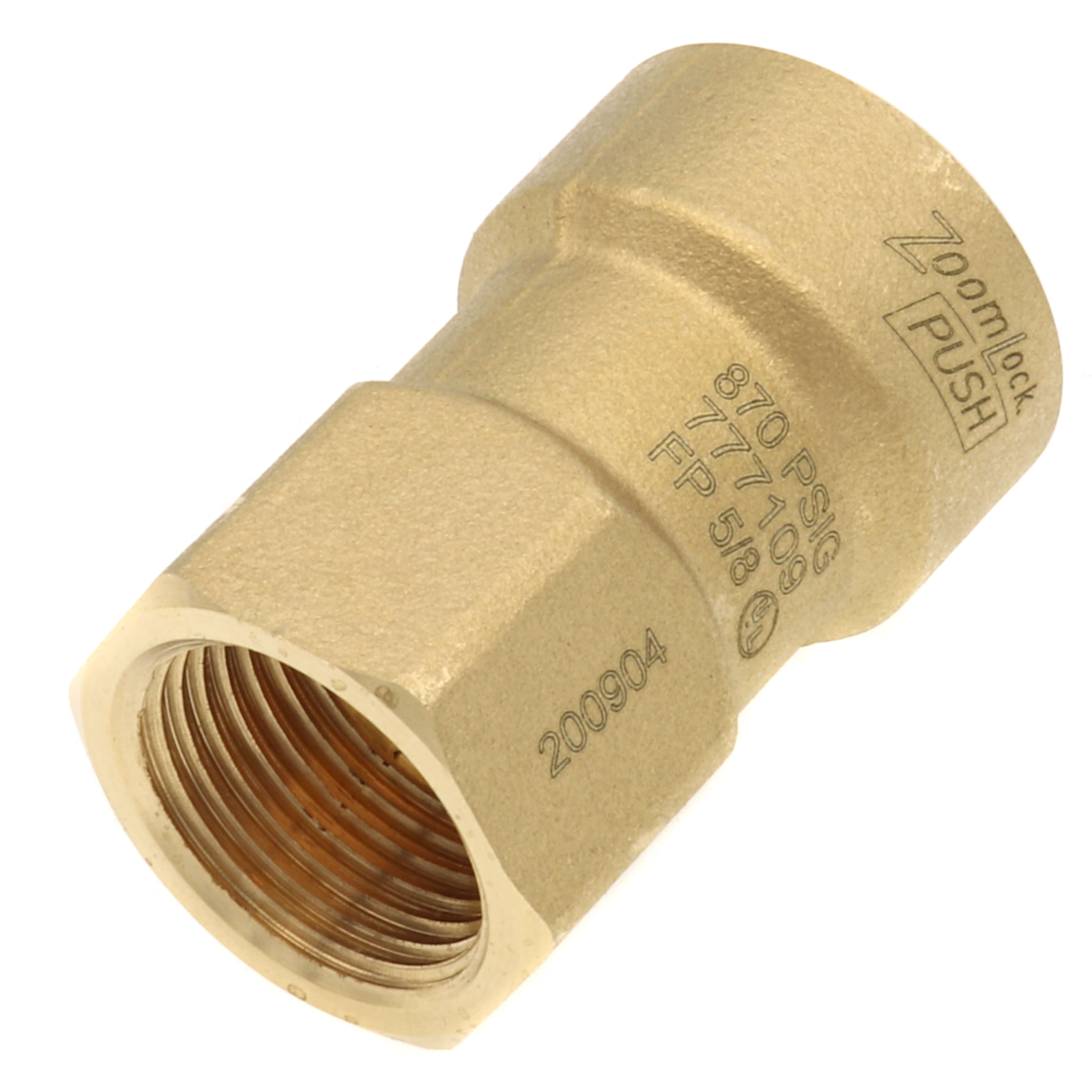

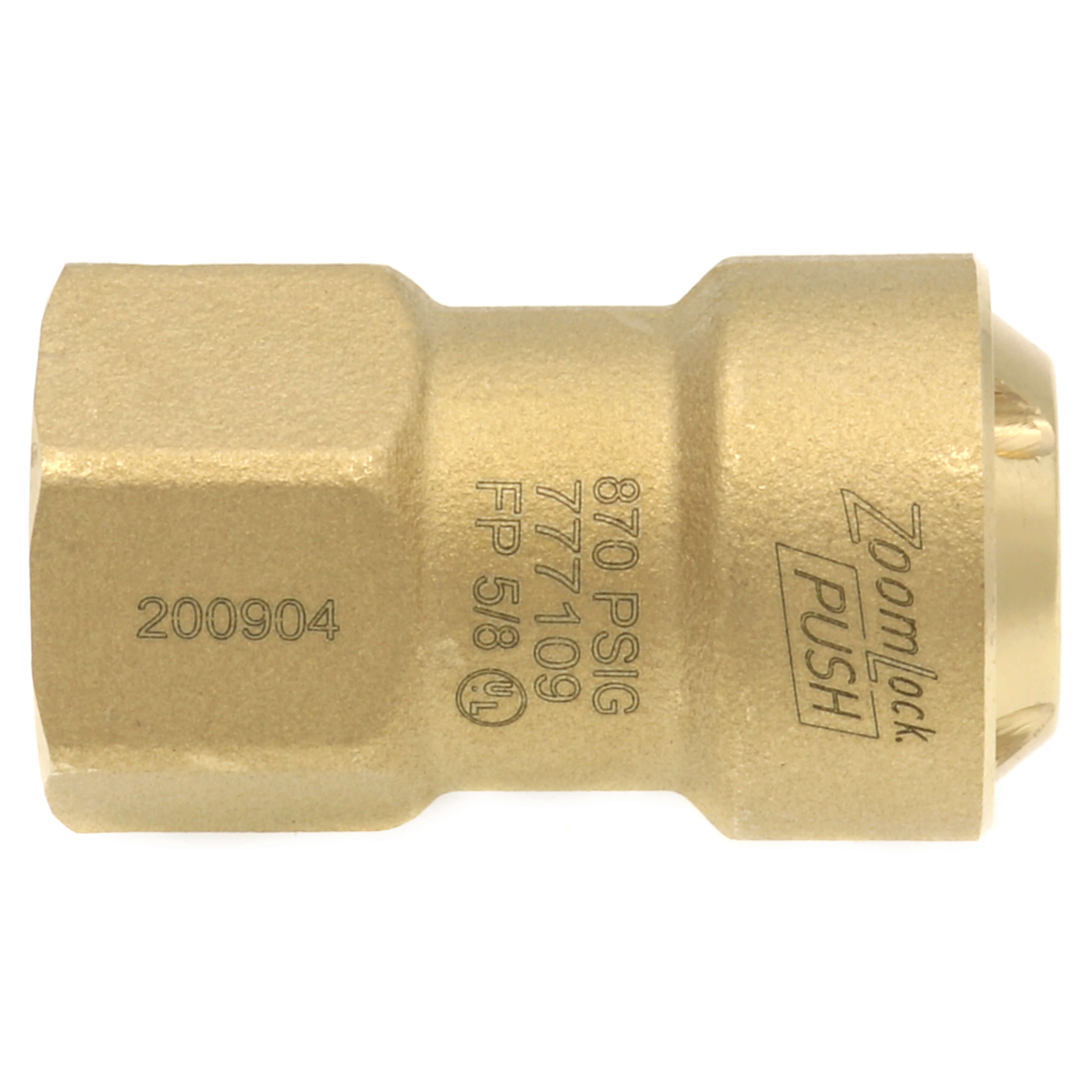

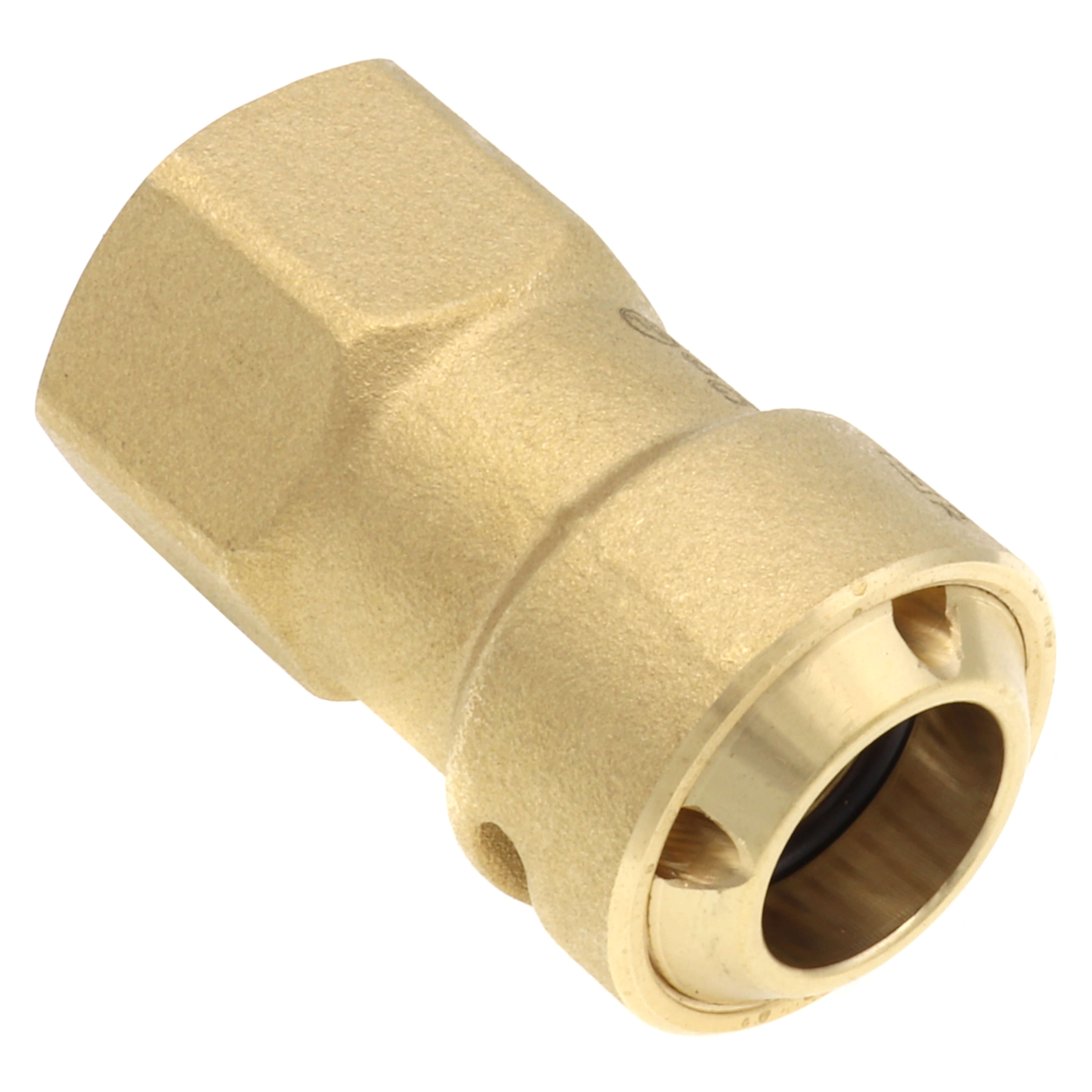

Parker Hannifin 777109 5/8 ZoomLock PUSH R410A Optimized SAE Flare Adapter PZKP-F10-HNBR

Product Description

The Parker Hannifin 777109 is a 5/8 ZoomLock PUSH R410A optimized SAE flare adapter designed for fast and reliable connections in HVAC systems. This fitting eliminates the need for brazing or fire risk, making installations quicker and safer. Ideal for residential AC, heat pumps, mini-splits, and refrigeration systems.

• No press tool or jaws needed
• Fast and easy installation
• Secure, leak-free connections

Product Highlights

This adapter provides a clean installation with fewer risks and the reliability expected from Parker products.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 777109

Technical Specifications

• Connection Size: 5/8 inches
• R410A Optimized
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure: 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant Grade Copper
• O-Ring Material: HNBR
• UL Listed: SA7511
