Product Description

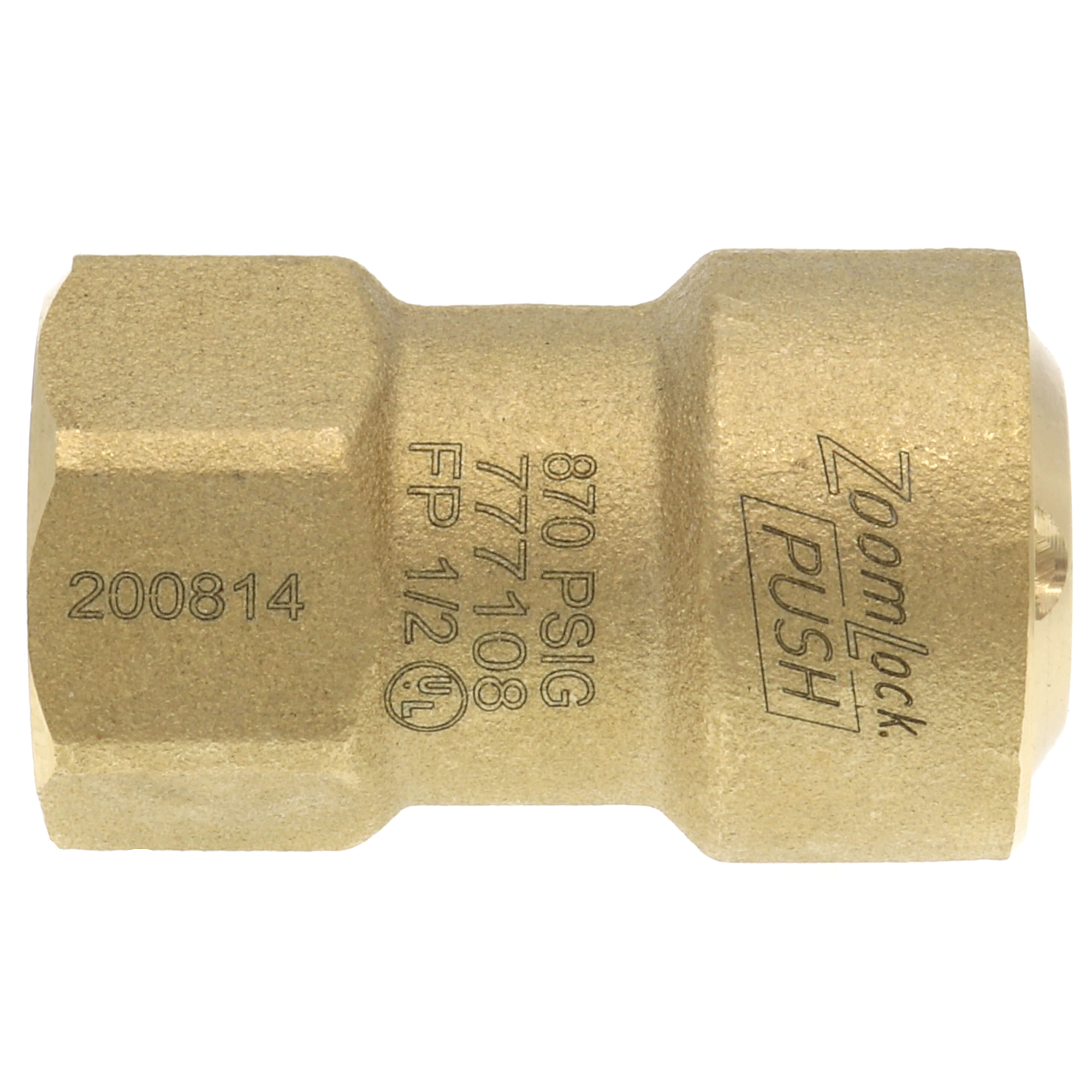

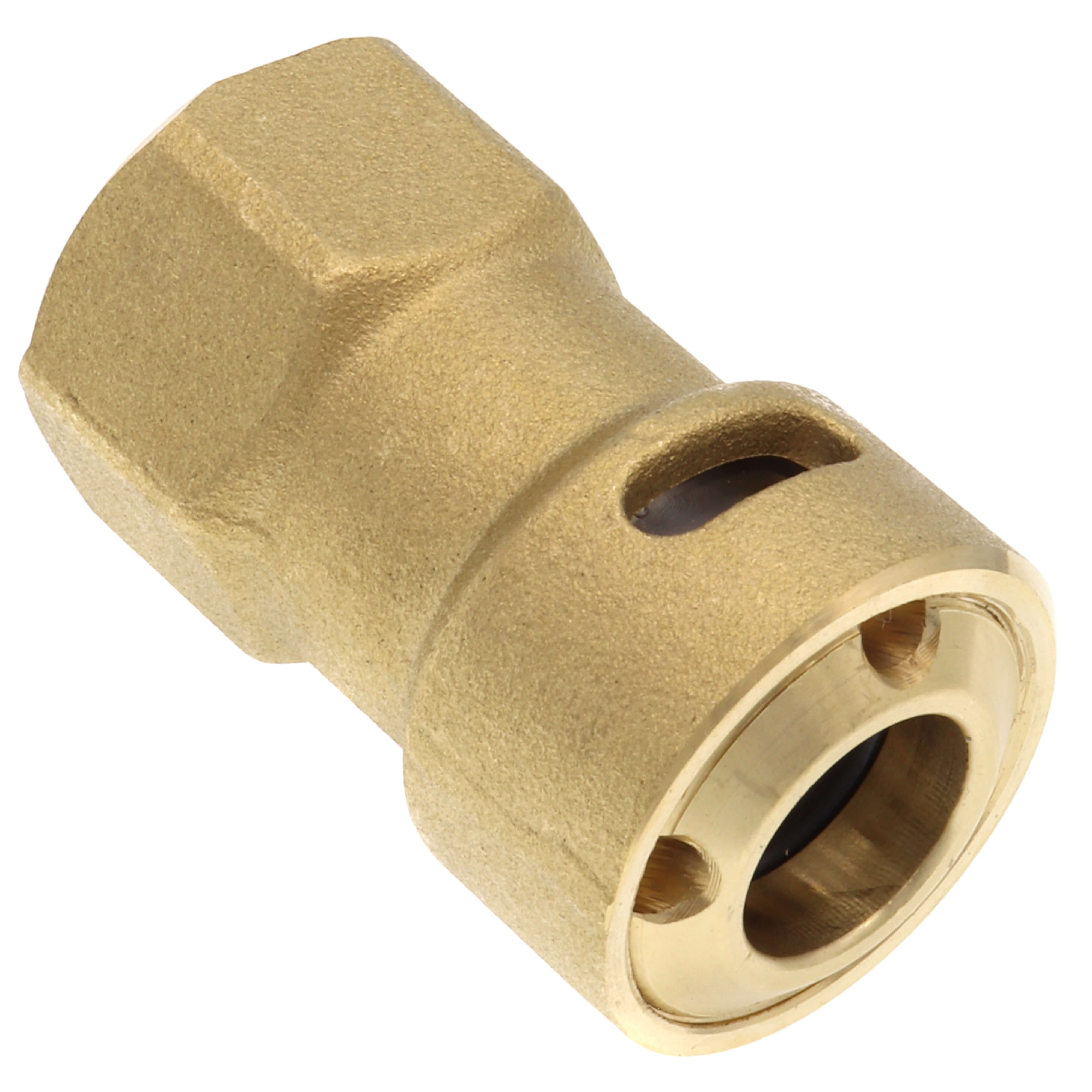

Parker Hannifin 777108 is a 1/2 ZoomLock PUSH R410A Optimized SAE Flare Adapter designed for HVACR professionals. This adapter allows for quick and efficient connections of refrigerant lines without the need for traditional brazing. The innovative design eliminates the hazards associated with flames and enhances safety on job sites.
- No press tool or jaws required.
- Fast and straightforward installation.
- Secure, leak-free connections for reliable performance.
Product Highlights
This adapter is ideal for use in residential air conditioning, heat pumps, mini-splits, and refrigeration systems.
Product Information
Standard Information
-
Brand: Parker Hannifin
-
MPN: 777108
Technical Specifications
-
Connection Size: 1/2
- R410A Optimized
-
Applications: High Pressure HVAC/R
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
-
Vibration Resistance: Conforms to UL109
-
Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring: HNBR
-
UL Listed: SA7511 Approved use for field and factory installations
-
Standards Compliance: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
