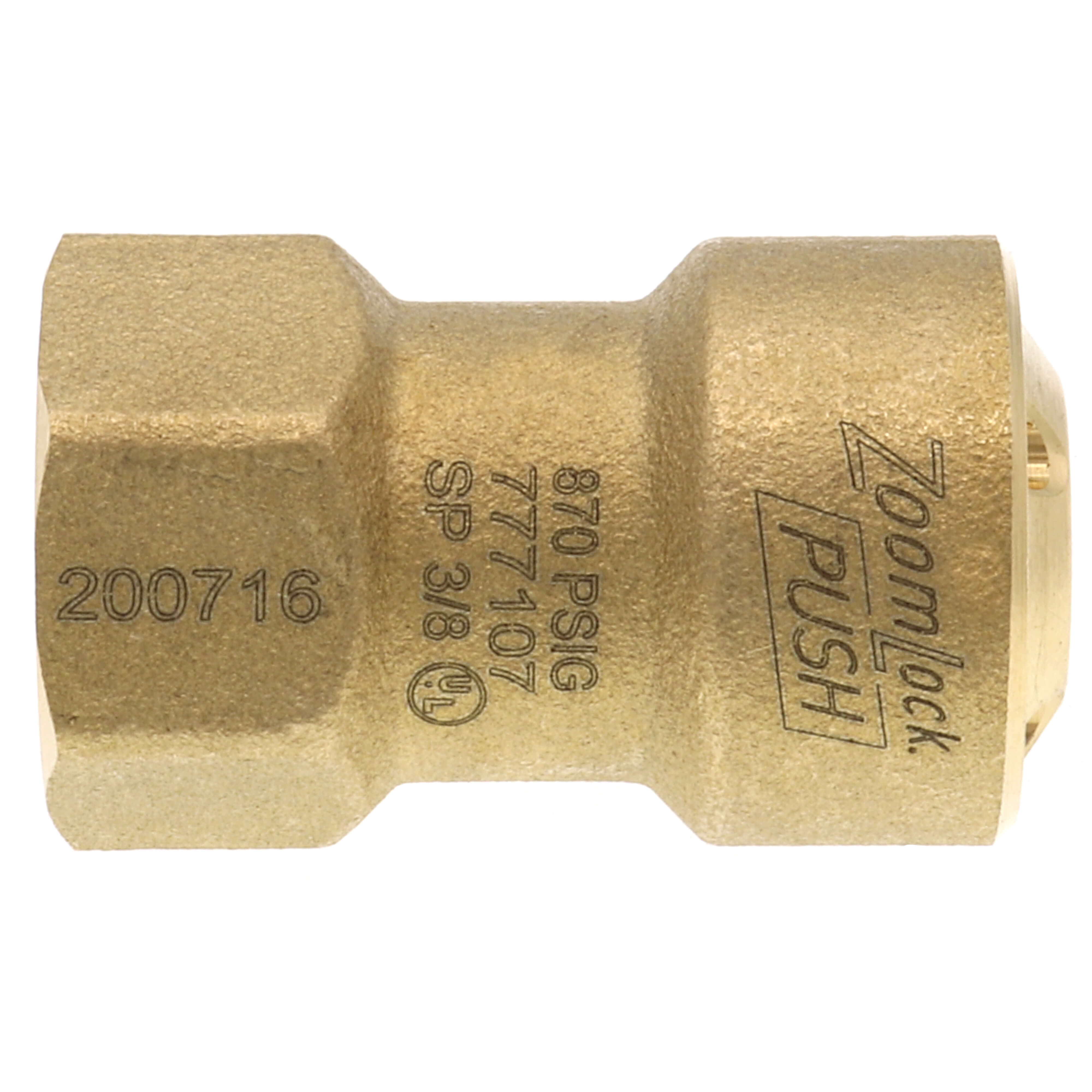

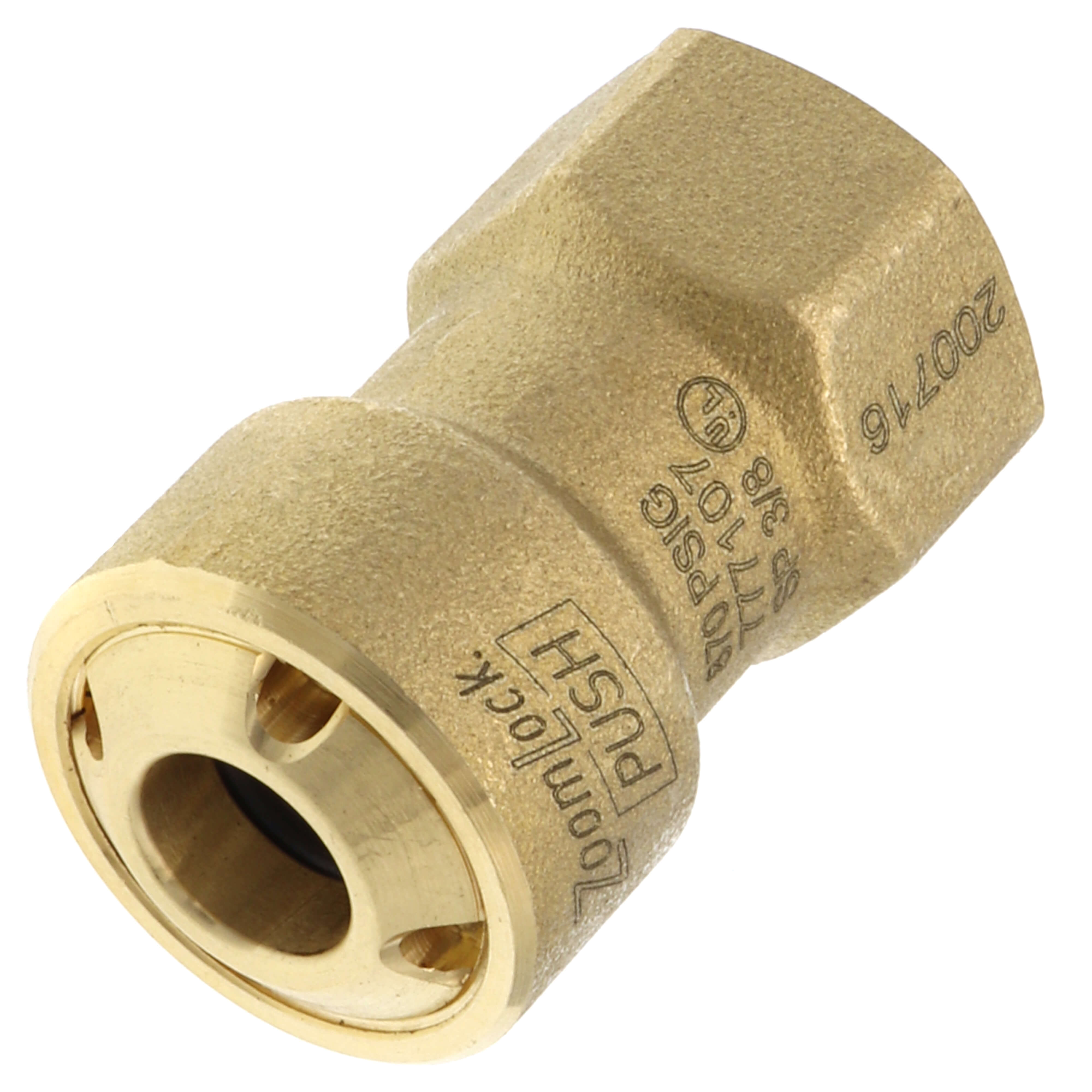

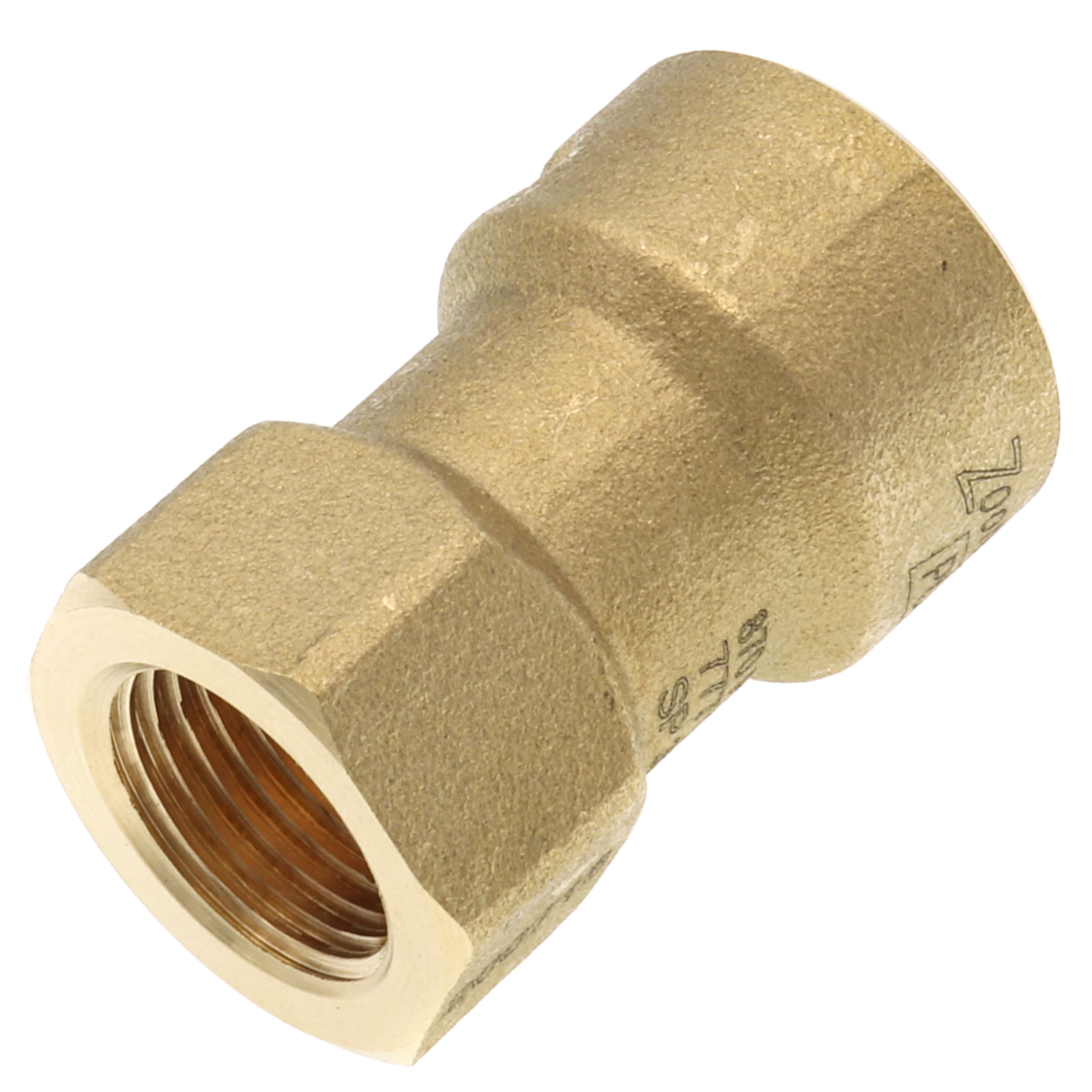

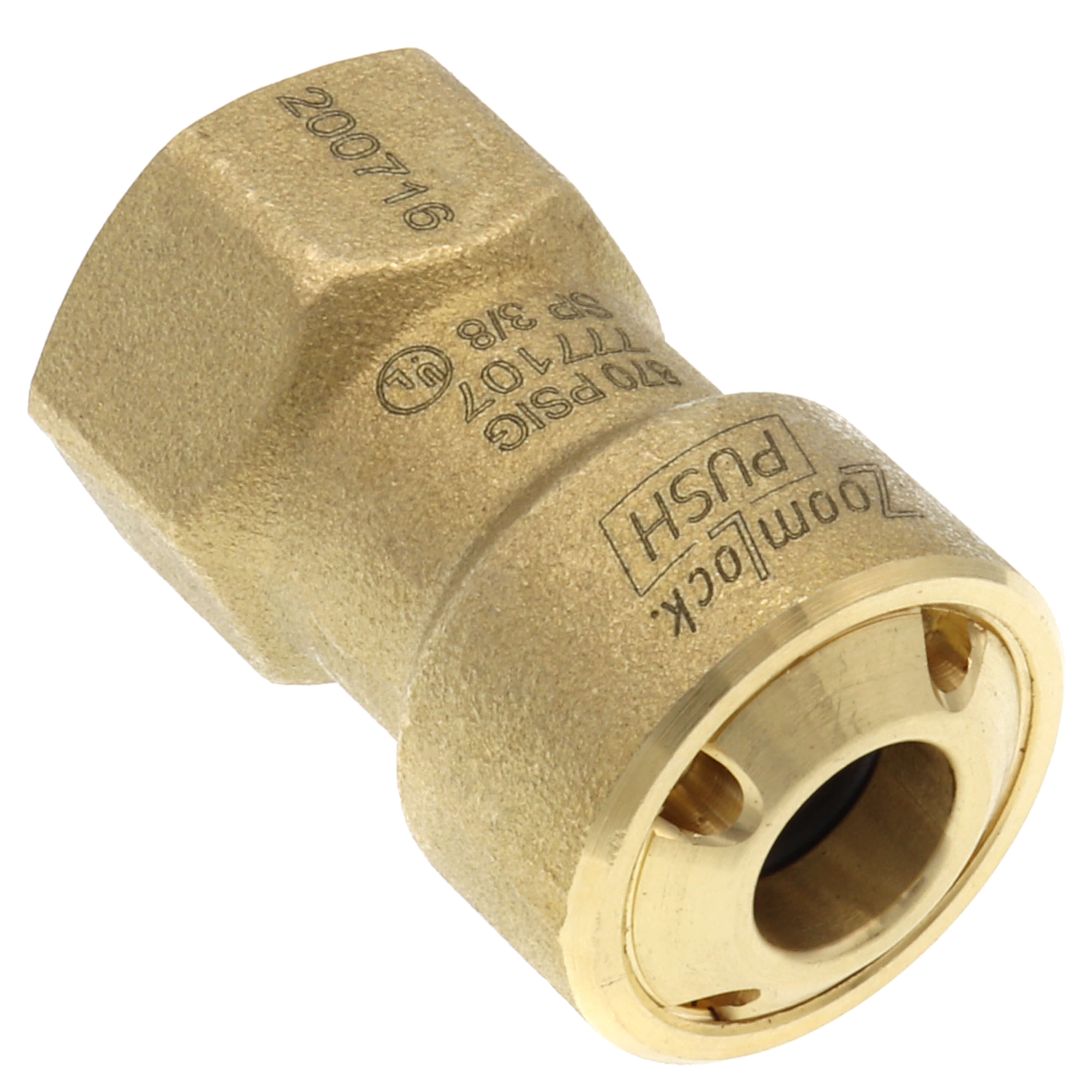

Parker Hannifin 777107 3/8 ZoomLock PUSH R410A Optimized SAE Flare Adapter PZKP-F6-HNBR

Product Description

Parker Hannifin 777107 is a 3/8 ZoomLock PUSH R410A optimized SAE flare adapter designed for HVACR applications. This fitting eliminates the need for brazing, making it a fast and safe solution for refrigerant line connections. It significantly reduces installation time and enhances safety by removing the risks associated with traditional methods. ZoomLock PUSH is suitable for residential AC, heat pumps, mini-splits, and refrigeration systems.

• No need for press tools or jaws
• Quick and clean installations
• Leak-free and secure connections

Product Highlights

This adapter allows HVAC contractors a safer working environment with no fire hazards and no need for hot-work permits.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 777107

Technical Specifications

• Connection Size: 3/8
• Material: Copper
• Used With: R410A
• Max Operating Temperature: 300°F
• Min Operating Temperature: -40°F
• Maximum Rated Pressure: 700 psi
• Minimum Burst Pressure: 2,100 psi
• Vacuum Pressure Capability: 500 Microns
• O-Ring Temperature Rating: -40°F to +300°F
• Vibration Resistance: Conforms to UL109
• UL Listed: SA7511
