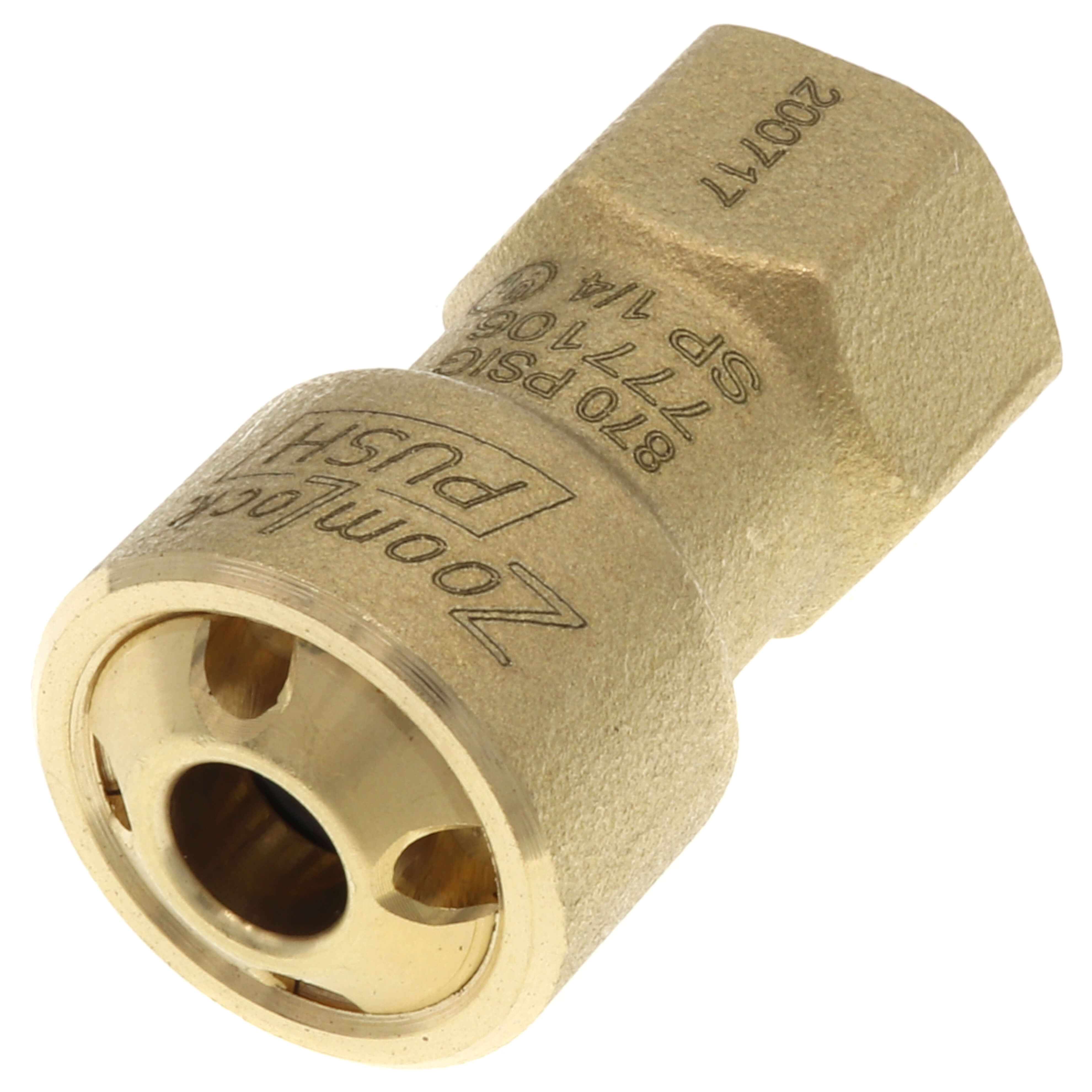

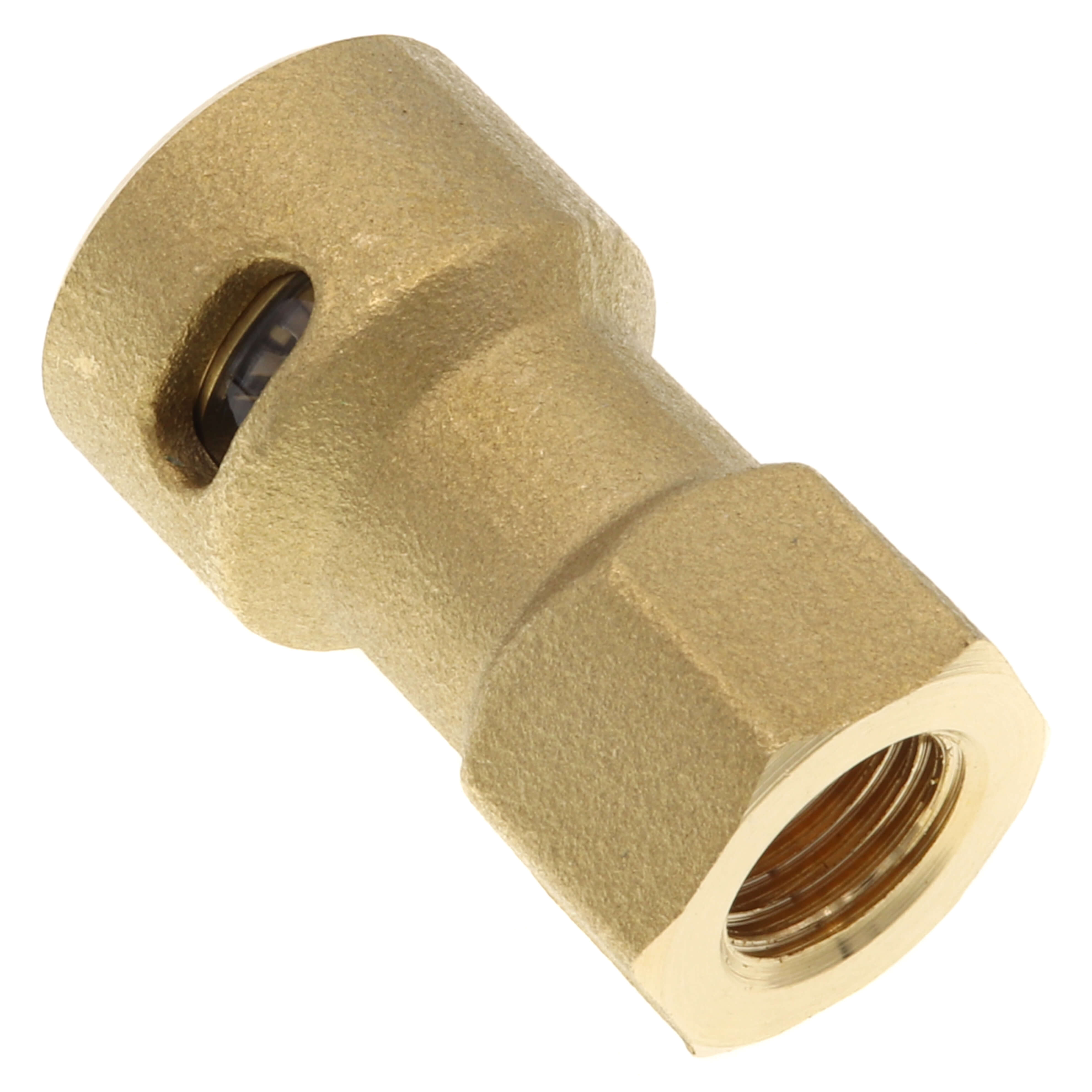

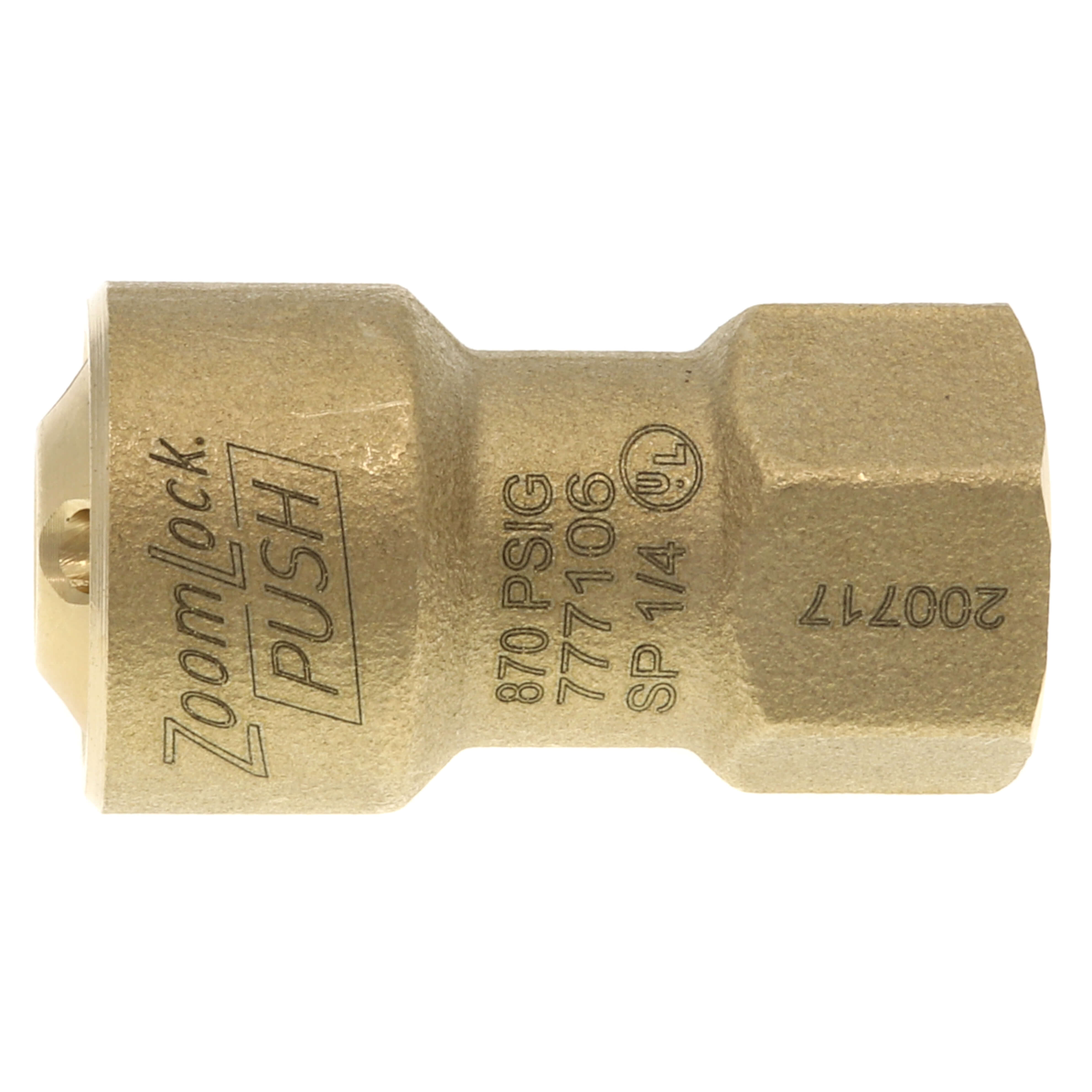

Parker Hannifin 777106 1/4 ZoomLock PUSH R410A Optimized SAE Flare Adapter PZKP-F4-HNBR

Product Description

Parker Hannifin 777106 is a 1/4 ZoomLock PUSH R410A optimized SAE flare adapter. This product eliminates the need for traditional brazing, offering a quick and efficient way to connect refrigerant lines. This fitting is ideal for HVAC professionals who prioritize time and safety at job sites. The ZoomLock PUSH design allows for easy and safe installations without flames or tools.

• No press tool or jaws required
• Fast and simple installation
• Ensures secure and leak-free connections

Product Highlights

Ideal for residential AC, heat pumps, mini-split, and refrigeration applications while providing safety and reliability in installation.

Product Information

Standard Information

• Connection Size: 1/4
• Applications: High Pressure HVAC/R

Technical Specifications

• Continuous Operating Temperature: 250 degrees Fahrenheit / 121 degrees Celsius
• O-Ring Temperature Rating: -40 degrees Fahrenheit to +300 degrees Fahrenheit
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure: 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 microns
• External Leak Rate: Less than 0.1 ounces of helium per year at operating pressure range
• Fitting Body: Refrigerant grade copper, conformed to ASTM-B75 or ASTM-B743
• O-Ring Material: HNBR
• UL Listed: SA7511 approved for field and factory installations
