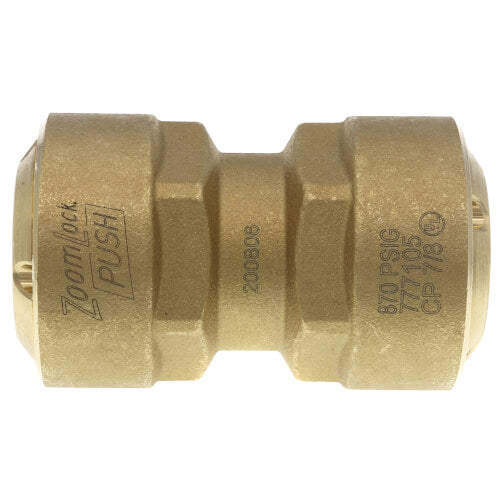

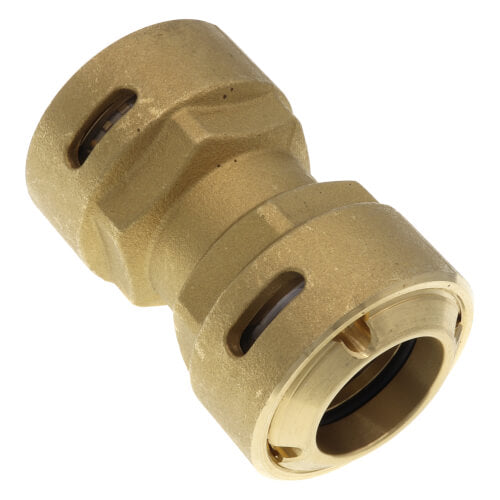

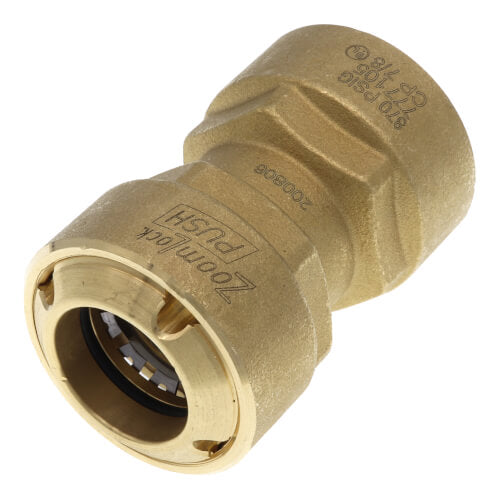

Parker Hannifin 777105 7/8 ZoomLock PUSH R410A Optimized Coupling PZKP-C14-HNBR

Product Description

Parker Hannifin 777105 is a 7/8 inch ZoomLock PUSH R410A optimized coupling. This coupling is designed for HVACR professionals to connect refrigerant lines quickly. It minimizes installation time and enhances safety.

• No press tool or jaws required
• Fast installation process
• Leak-free secure connections

Product Highlights

This coupling eliminates the need for brazing, flames, or fire safety concerns while connecting refrigerant lines, making it suitable for residential AC, heat pumps, mini-splits, and refrigeration systems.

Product Information

Standard Information

• Brand: Parker Hannifin
• Connection Size: 7/8 inch

Technical Specifications

• Application: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: Less than 0.1 Ounces of Helium per Year
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant Grade Copper
• O-Ring Material: HNBR
• UL Listed: SA7511 Approved
• Compliance: ASHRAE-15, ANSI 15, ASME B31.5
