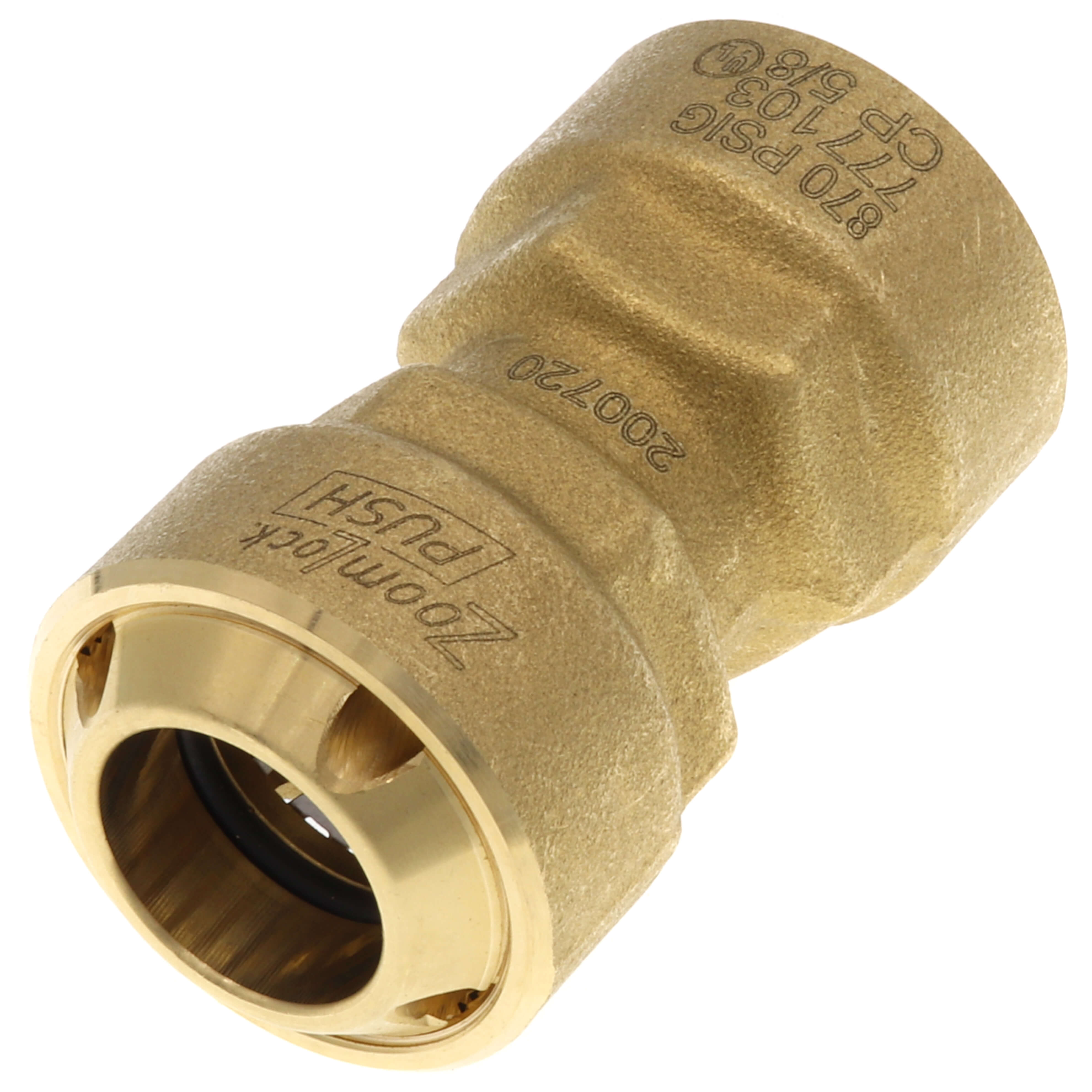

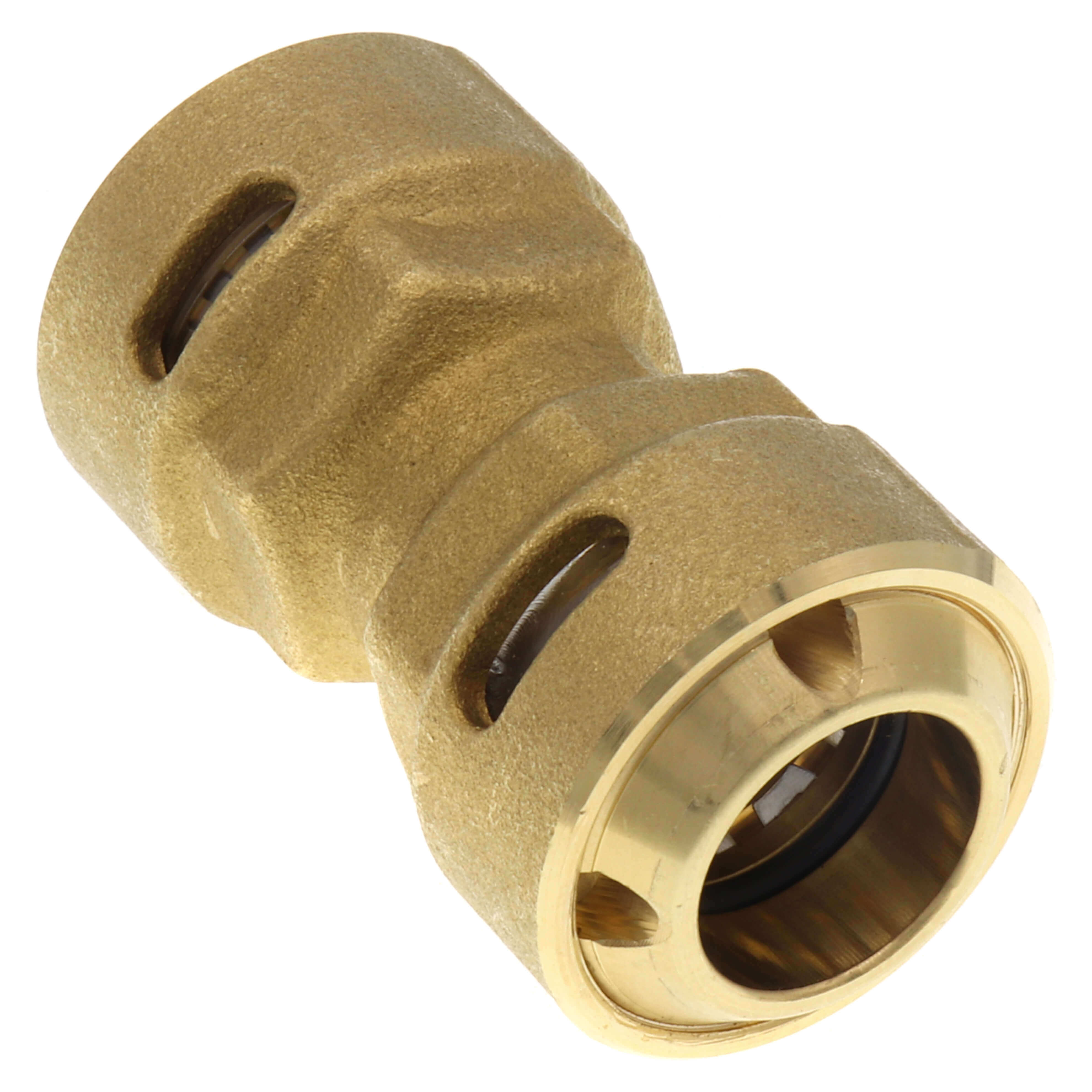

Parker Hannifin 777103 5/8 ZoomLock PUSH R410A Optimized Coupling PZKP-C10-HNBR

Product Description

The Parker Hannifin 777103 is a 5/8 inch ZoomLock PUSH R410A optimized coupling designed for easy installation in HVACR systems. These fittings eliminate the need for brazing, fire hazards, and hot work permits. Contractors can connect refrigerant lines quickly and safely, ensuring reliable performance in various applications such as residential AC and refrigeration systems.

• No press tool or jaws required
• Fast and simple installation
• Creates secure and leak-free connections

Product Highlights

This coupling offers a user-friendly solution that enhances efficiency and safety during refrigerant line installations.

Product Information

Standard Information

• Material: Copper
• Used With: R410A

Technical Specifications

• Connection Size: 5/8 inches
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250 degrees F / 121 degrees C
• O-Ring Temperature Rating: -40 degrees F to +300 degrees F, -40 degrees C to +149 degrees C
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: Less than 0.1 ounces of helium per year at operating pressure range
• Vibration Resistance: Conforms to UL109
• Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring: HNBR
• UL Listed: SA7511 approved for field and factory installations
• Complies with: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
