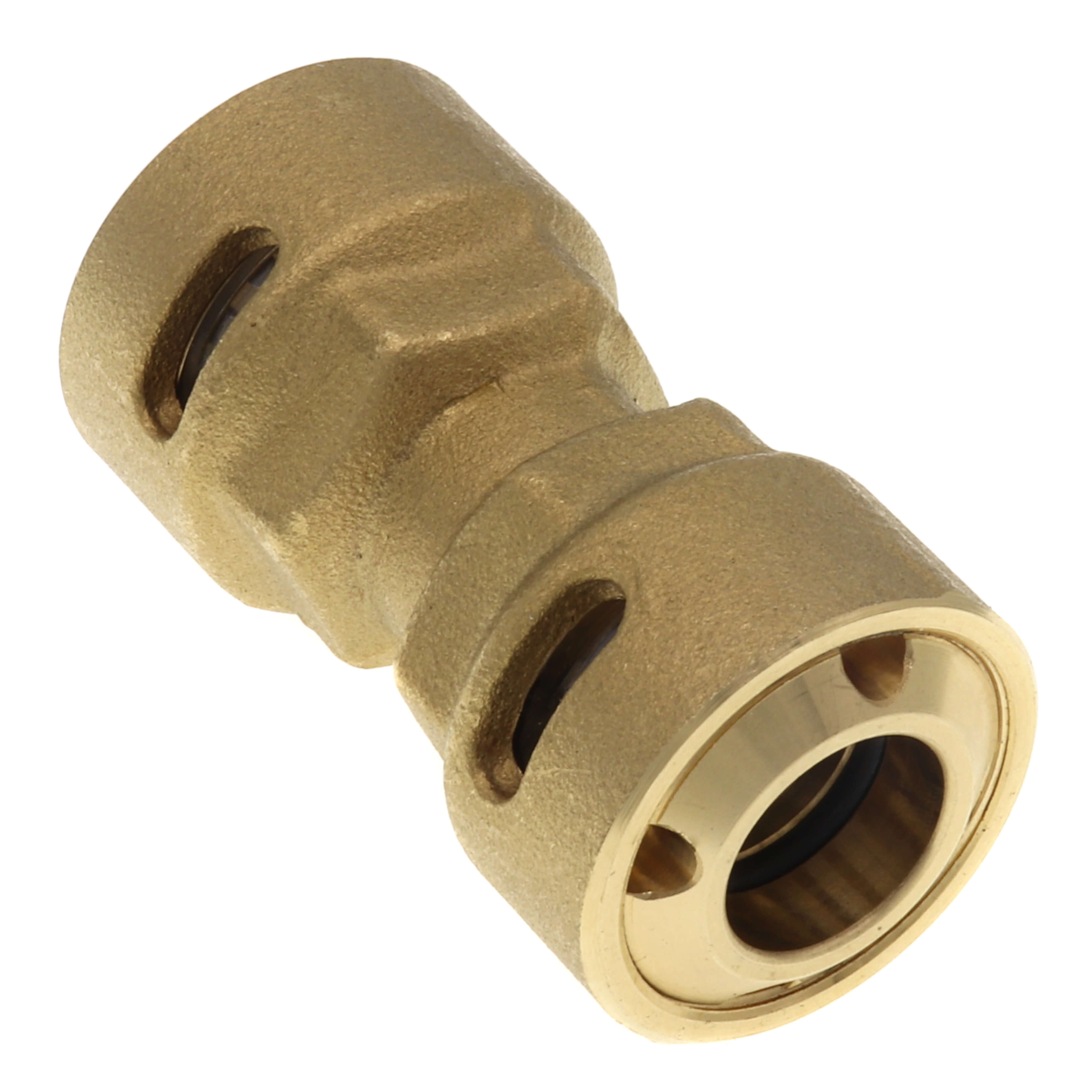

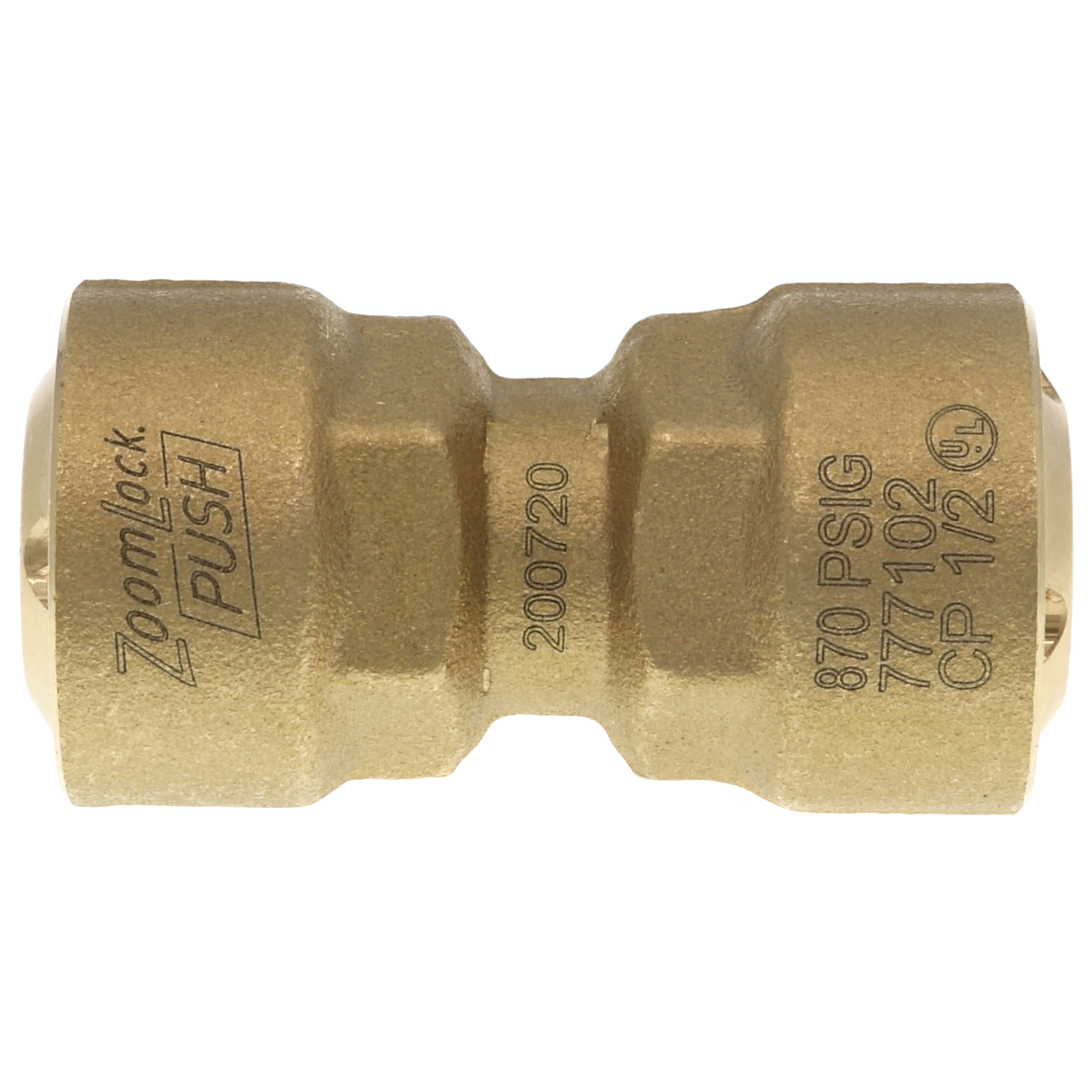

Parker Hannifin 777102 1/2 ZoomLock PUSH R410A Optimized Coupling PZKP-C8-HNBR

Product Description

Parker Hannifin 777102 is a 1/2 inch ZoomLock PUSH R410A optimized coupling designed for quick and reliable refrigerant line connections. This product eliminates the need for brazing and reduces the risk of fire, making it suitable for HVACR professionals. The fitting connects refrigerant lines in seconds, enhancing efficiency and safety in installations for air conditioning, heat pumps, mini-splits, and refrigeration.

• No press tool or jaws required
• Fast and straightforward installation
• Provides secure and leak-free connections

Product Highlights

The ZoomLock PUSH fittings provide a simple solution to connect refrigerant lines without traditional installation risks.

Product Information

Standard Information

• Connection Size: 1/2 inch
• Application: High Pressure HVAC/R

Technical Specifications

• Continuous Operating Temperature: 250 degrees Fahrenheit / 121 degrees Celsius
• O-Ring Temperature Rating: -40 degrees Fahrenheit to +300 degrees Fahrenheit, -40 degrees Celsius to +149 degrees Celsius
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure: 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 microns
• External Leak Rate: Less than 0.1 ounces of helium per year at operating pressure range
• Material: Refrigerant grade copper
• O-Ring Material: HNBR
• UL Listed: SA7511 approved for field and factory installations
• Compliance Standards: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
