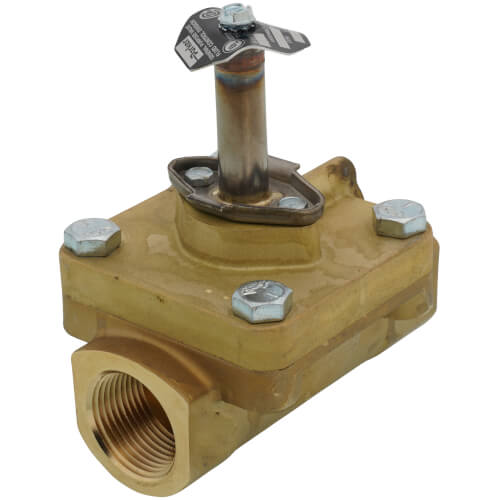

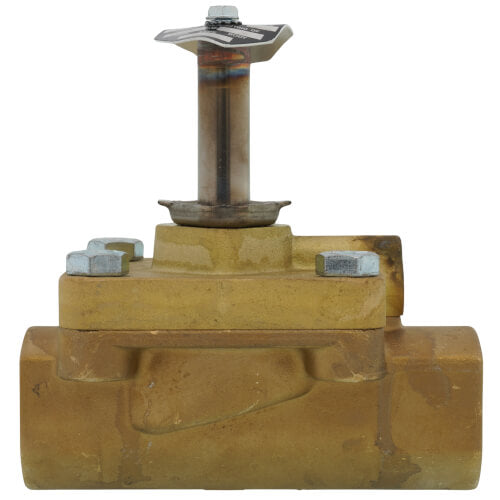

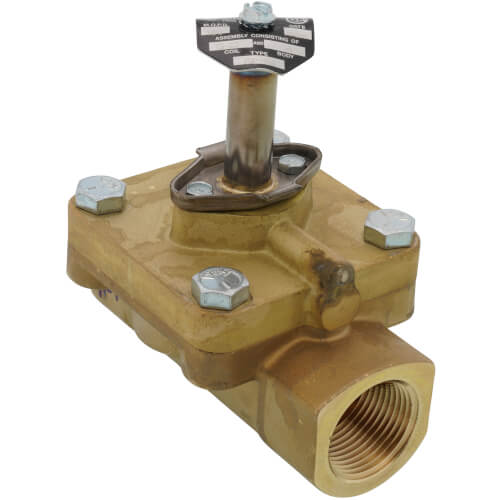

PARKER 70810 SOLENOID VALVES
PARKER 70810 SOLENOID VALVES

Parker Hannifin 70810 1 GP10A Normally Closed General Purpose Solenoid Valve 12.2 Cv

Brand: PARKER
SKU: 70810
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12 pm

Same Day Delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)

Earn [points_amount] when you buy this item.
$546.77
$546.77
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Parker Hannifin 70810 is a solenoid valve designed for general applications. This valve operates with low to high pressure and is suitable for non-corrosive fluids.

  • Forged brass body with Buna N diaphragm
  • Maximum fluid temperature of 225 degrees Fahrenheit
  • Flow capacity rated at 12.2 Cv

Product Highlights

The Parker 70810 solenoid valve is ideal for applications involving air, water below one hundred eighty degrees Fahrenheit, light oils, and low vacuum. This model is normally closed and features a two-way body pattern.

Product Information

Standard Information

  • Brand: Parker Hannifin
  • Type: Solenoid Valve

Technical Specifications

  • MPN: 70810
  • Port Size: 1 inch
  • Max Pressure: 150 PSI
  • Connection Type: FNPT x FNPT
  • Body Pattern: 2-Way
  • Weight: 4.275 pounds
  • Shipping Depth: 6.4 inches
  • Shipping Width: 5.3 inches
  • Shipping Height: 4.45 inches
